7 Inch Bar Type LCD Display 280*1424 Resolution MIPI RGB SPI Interface Display

Products

7 Inch Bar Type LCD Display 280*1424 Resolution MIPI RGB SPI Interface Display

MOQ:	500
Price:	13.89-18.89/pc
Standard Packaging:	320pcs/box
Delivery Period:	14-30days
Payment Method:	,T/T,D/P,D/A,Western Union
Supply Capacity:	300k/month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

Certification

RoHS/CE/CB

Model Number

YVO070FW-C01

Document

Highlight:

7 Inch Bar Type LCD Display

Bar Type LCD Display 280*1424

RGB SPI Interface Display

Product Description

7.0inch round LCD display 280*1424 resolution optional touch SPI MIPI RGB

280*1424 Resolution NV3052CRGB Driver IC SPI MIPI RGB Interface400 CD/m² Luminance -20℃ ~ +70℃ Operating Temp Wide Viewing Angle (ALL) Optional Capacitive Touch

Product Features

The YVO070FW - C01 is a 6.86 - inch LCD display module suitable for various industrial and consumer applications. It has a resolution of 280(RGB)×1424 pixels, providing clear and detailed visuals. Driven by the NV3052CGRB driver IC and supporting the SPI + RGB interface, this module ensures stable data transmission, meeting the response needs of different display applications.

The module has an outline dimension of 38.2(W)×181.47(H)×3.54(T) mm and an active display area of 33.6×170.88 mm. Its design allows for easy integration into devices with limited space. It maintains consistent color and brightness from any viewing direction (viewing direction: ALL). Also, with good display performance, it ensures vivid and lifelike images.

It uses an LED backlight and can operate stably in a certain temperature range (specific operating temperature not fully specified in the provided specs but adaptable to relevant application scenarios), making it adaptable to different environments.

Product	7.0 inch LCD	Module Number	YVO070FW - C01
Resolution	280*1424	Display Mode	Normally Black
Brightness	400 nit	Outline Dimensions	38.2(W)×181.47(H)×3.54(T) mm
Viewing Direction	All (IPS)	Active Area	33.6*170.88 mm
Interface	SPI RGB MIPI	Driver IC	NV3052CGRB
Backlight	LED	Operating Temp.	-20 ~ +70 °C
Connector Type	0.5 PITCH 40pin	Storage Temp.	-30 ~ +80 °C
Highlight	7.0-inch LCD, 280*1424 resolution, NV3052CRBG driver, SPI RGB MIPI interface

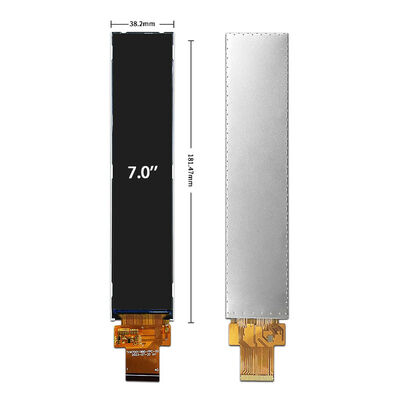

Technical Drawing

The YVO070FW - C01 LCD module boasts reliable electrical performance. The power supply voltage for logic (VDD) ranges from 0.3V to 3.6V. It can operate within a temperature range of -20°C to 70°C and be stored in a temperature range of -30°C to 80°C.

For the backlight, the typical forward current (IF) is 80mA, and the typical forward voltage (VF) is 12.8V, ensuring sufficient brightness. It's noted that if the LED is driven under high current, high ambient temperature, and humidity conditions, the life of the LED will be reduced, with the operating life (when brightness drops to 50% of initial brightness) being estimated data.

7 Inch Bar Type LCD Display 280*1424 Resolution MIPI RGB SPI Interface Display 0

PIN Definition

PIN	Symbol	Description
1	LED A	LED ANODE
2	LED K	LED CATHODE
3	GND	Ground
4	VCI	Power supply
5 - 12	R0 - R7	RED Data Signal
13 - 20	G0 - G7	GREEN Data Signal
21 - 28	B0 - B7	BLUE Data Signal
29	GND	Ground
30	PCLK	RGB dot clock signal
31	RESET	Reset Signal, Active Low
32	HSYNC	RGB line synchronizing signal
33	VSYNC	RGB frame synchronizing signal
34	DE	RGB data enable signal
35	IOVCC	Power supply
36	GND	Ground
37	CS	SPI Chip select signal
38	SCL	SPI Clock signal
39	SDI	SPI Data signal
40	SDO	SPI Data Object

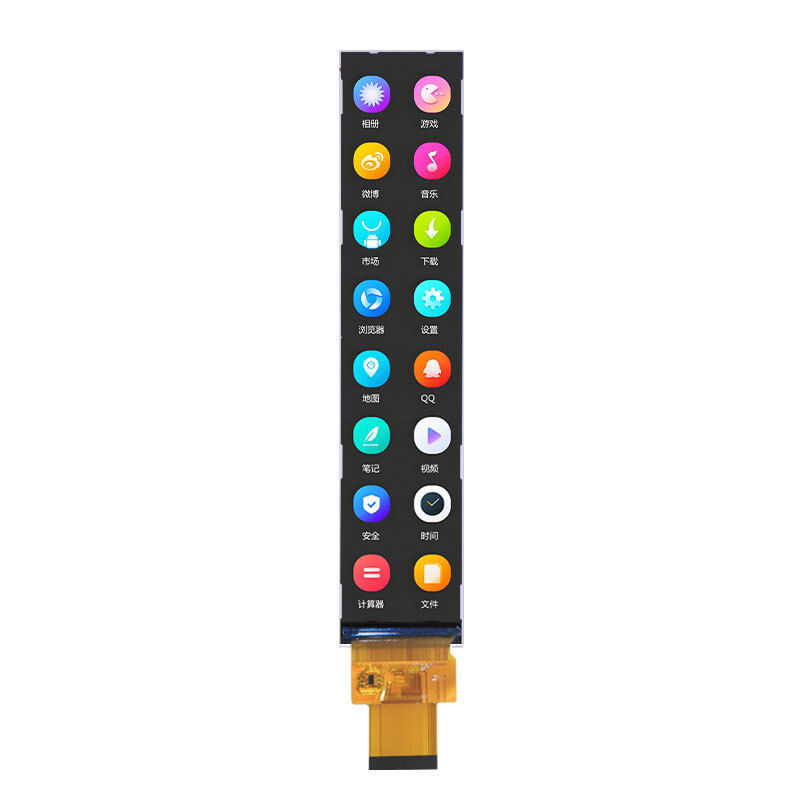

Product Picture

The YVO070FW - C01 LCD module showcases excellent environmental resilience and reliability, having successfully passed a series of rigorous tests. These tests include 120 hours of high - temperature (80°C) storage, 120 hours of high - temperature (70°C) operation, 120 hours of low - temperature (-30°C) storage, 120 hours of low - temperature (-20°C) operation, 120 hours of operation in a humid environment (40°C/90%RH), and 10 cycles of thermal shock (non - operation) with the condition of -20°C ← 25°C → 70°C (0.5 hour ← 5 min → 0.5 hour). After undergoing these tests, the module exhibits no abnormalities in functions and appearance.

7 Inch Bar Type LCD Display 280*1424 Resolution MIPI RGB SPI Interface Display 1

Customization Options

The YVO070FW-C01 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Brightness: Adjustable from 200–1000 nits for indoor or outdoor use.

Touch Options: With or without capacitive touch, customized driver IC available.

Surface Treatment: AF (Anti-Fingerprint), AG (Anti-Glare), or tempered glass for durability
