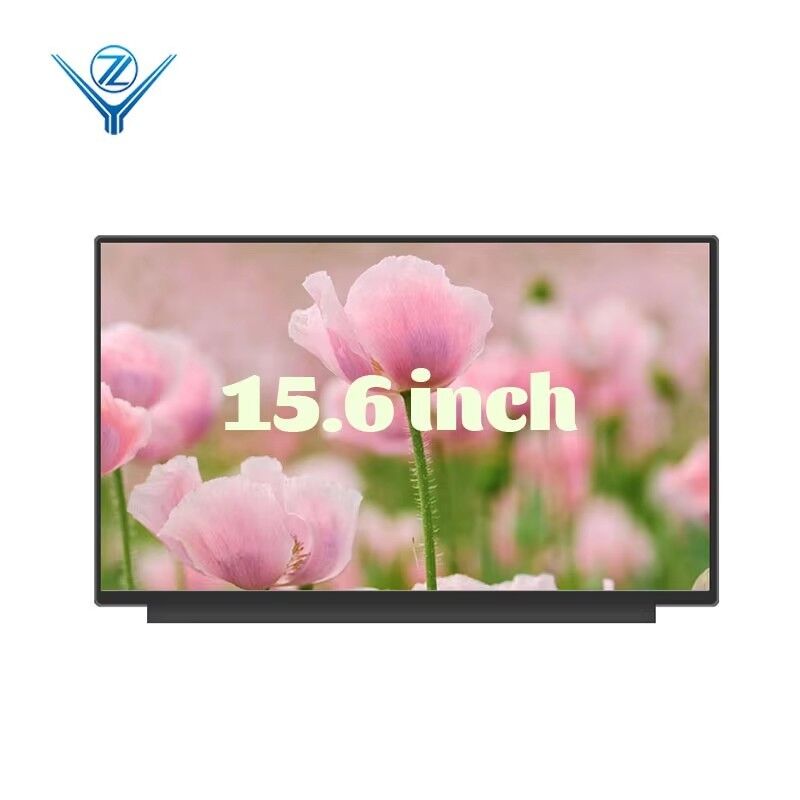

BOE LCD Screen NT156WHM-N44 Screen 1366x768 Resolution with 30pin EDP Interface

The core advantages of the NT156WHM-N44 15.6-inch laptop screen lie in HD clear display, ultra-slim low-power design, stable eDP interface compatibility, and long-term reliability, with targeted optimization for mainstream notebook scenarios. The details are as follows:

Δ HD Practical Display, Comfortable Visual Experience
♦ 15.6-inch HD (1366×768) resolution with 252μm uniform pixel pitch, ensuring sharp text and clear images for office documents, online courses, and daily video entertainment.
♦ Supports 262K colors and 45% NTSC color gamut, realizing natural color reproduction that adapts to mainstream daily usage scenarios (e.g., web browsing, video playback).
♦ Anti-glare coating with 3H hardness reduces ambient light reflection (indoor lights, outdoor sunlight) and resists slight scratches from daily use, balancing visual comfort and durability.
♦ Excellent wide viewing angle performance: horizontal (3/9 o’clock) and vertical (6/12 o’clock) viewing angles with CR>10, ensuring clear picture quality when sharing the screen or using the laptop sideways.

Δ Ultra-Slim Lightweight & Low-Power, Enhancing Portability

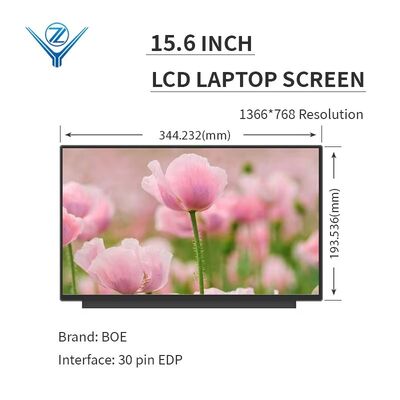

♦ Slim structure design: maximum thickness of 3.2mm (with PCB), maximum weight of 360g, effectively reducing the overall thickness and weight of the notebook for easier carrying.
♦ Low-power consumption advantage: total power consumption max 3.64W (@ Mosaic pattern), backlight power max 2.52W, extending notebook battery life and reducing charging frequency during outdoor use.
♦ Green environmental protection: complies with RoHS standards and is halogen-free, meeting global notebook brand environmental requirements and avoiding harmful substances.

Δ  1-Lane eDP Interface & Strong Compatibility
♦ Equipped with eDP 1.2 interface, 1 lane, 2.7Gbps transmission rate, enabling fast stable data transmission (no lag for HD video playback) and compatible with mainstream notebook motherboards (Intel/AMD platforms).
♦ Built-in EDID chip and BIST (Panel Self-Test) function: BIST enables one-click self-test during notebook assembly, reducing fault diagnosis time and improving production efficiency.
♦ Standardized HPD signal and AUX channel design, minimizing connection abnormalities (screen flicker, no display) and ensuring stable user experience.

Δ High Reliability & Long Service Life, Worry-Free Usage
♦ Durable backlight system: single bottom-side LED lighting bar (36-LED array) with 15,000-hour service life (8 hours daily use for 5 years), no backlight attenuation concerns.
♦ Rigorous reliability tests: passes high-temperature (50℃) operation, low-temperature (0℃) operation, thermal shock (-20℃↔60℃), vibration (1.5G, 10-500Hz), and ESD (±15KV air discharge) tests, adapting to various environments.
♦ Built-in LED driving circuit simplifies motherboard design; standardized power sequence prevents latch-up risks, extending screen service life and reducing maintenance costs.
