| Brand Name: | YZY |
| Model Number: | YVO1400VQE-Y2 |
| MOQ: | 500 pcs |
| Price: | $33 / Piece |
| Payment Terms: | T/T |
1920×1080 resolution, 2 lane eDP interface, 30 pin connector, 350 nits typical brightness, FFS normally black display mode, and anti-glare surface for compatible notebook display projects.
YVO1400VQE-Y2 is a 14.0 inch Full HD TFT LCD module designed for compatible notebook screen replacement, laptop repair, OEM notebook assembly, and LCD spare parts supply. It features 1920×1080 resolution, 2 lane eDP interface with 2.7 Gbps link rate, FFS normally black display mode, anti-glare surface treatment, and 350 cd/m² typical brightness.
The module supports 16.7 million colors with 6bit + 2FRC color depth and 45% NTSC color gamut. A built-in LED driver and bottom-edge single LED lighting bar are integrated into the module design.
Compatibility should be confirmed according to the original LCD model, resolution, connector type, connector position, pin definition, PCB structure, outline size, thickness, and mounting method before ordering.
1920×1080 FHD resolution for compatible notebook screen replacement and OEM notebook display projects.
2 lane eDP interface with 2.7 Gbps link rate for compatible notebook display systems.
30 pin LV03030-13100 interface connector for matching compatible notebook cables and installation structures.
300 cd/m² minimum and 350 cd/m² typical brightness for standard indoor notebook applications.

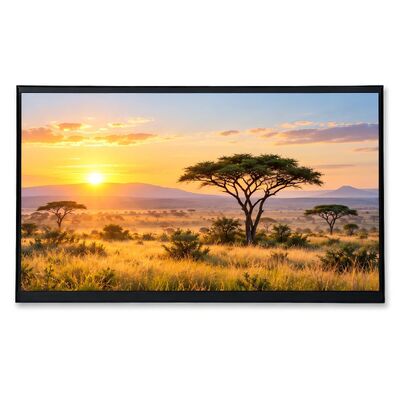

FFS normally black display mode with wide viewing characteristics and stable image performance.

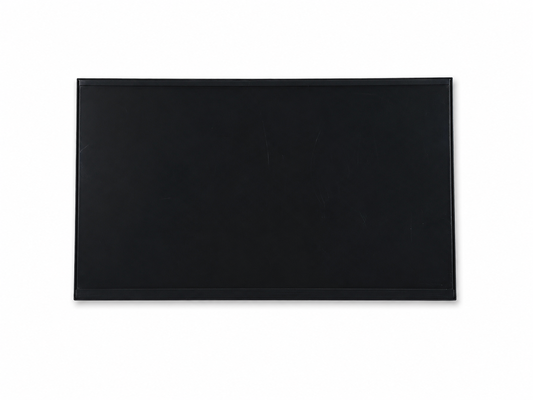

Anti-glare surface treatment helps reduce reflections during normal indoor use.
Rear-side view for checking the PCB structure, connector position, module outline, and installation direction.
Enlarged view for checking the 30 pin eDP connector position, PCB area, and cable matching requirements.
| Model | YVO1400VQE-Y2 |
| Display Size | 14.0 Inch |
| Resolution | 1920 × 1080 FHD |
| Active Area | 309.31(H) × 173.99(V) mm |
| Outline Size Without PCB | 315.81 ± 0.3(H) × 186.07 ± 0.3(V) × 3.0 Max. mm |
| Outline Size With PCB | 315.81 ± 0.3(H) × 186.07 ± 0.3(V) × 5.2 Max. mm |
| Pixel Pitch | 161.1 × 161.1 μm |
| Display Colors | 16.7M, 6bit + 2FRC |
| Color Gamut | 45% NTSC |
| Display Mode | FFS, Normally Black |
| Brightness | 300 cd/m² Min. / 350 cd/m² Typ. |
| Contrast Ratio | 1000:1 Min. / 1200:1 Typ. |
| Viewing Angle | 80° Min. / 89° Max., All Directions |
| Response Time | 30 ms Typ. / 35 ms Max. |
| Signal Interface | 2 Lane eDP, 2.7 Gbps |
| Connector | 30 Pin, LV03030-13100 |
| LCD Supply Voltage | 3.3V Typ. |
| Backlight | Bottom Edge, Single LED Lighting Bar |
| LED Lifetime | 15,000 Hours Typ. |
| Surface Treatment | Anti-Glare |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -20 ~ 60°C |
| Weight | 285 g Typ. |
| Environmental Compliance | RoHS & Halogen Free |
Compatibility should be confirmed before ordering. Please check the original LCD model, resolution, 30 pin connector, eDP signal interface, connector position, PCB structure, outline dimensions, thickness, and mounting method. The same screen size and resolution do not automatically guarantee compatibility.
We support laptop LCD screens and related display products for replacement, repair, OEM notebook assembly, and project-based supply.
Please provide the original LCD panel model, screen size, resolution, connector position, quantity, and application. We can help check suitable models and compatibility requirements.
Products can be checked before shipment according to the confirmed model and order requirements, including panel appearance, connector condition, packaging, and basic display function.
Please send the original LCD model number and clear photos of the original panel label, rear structure, and connector position. We will help check whether this model matches your requirement.
Sample availability can be confirmed according to stock status and project requirements.
Yes. This model uses a 30 pin LV03030-13100 connector with a 2 lane eDP interface.
No. The connector, pin definition, PCB position, module thickness, outline dimensions, and electrical specifications must also be compatible.
Please provide the original LCD model, required quantity, application, delivery country, and any special requirements.
Please send us the original LCD model number, screen size, resolution, interface, connector position, required quantity, and application details.
Our team will help check model compatibility, availability, and suitable supply options.
