| Brand Name: | YZY |
| Model Number: | YVO1400VQE-Y2-12 |
| MOQ: | 500 pcs |
| Price: | $46 / Piece |
| Payment Terms: | T/T |
1920×1080 resolution, 2 lane eDP interface, 30 pin connector, 1200 nits typical brightness, FFS normally black display mode, and anti-glare surface for compatible notebook display applications.
YVO1400VQE-Y2-12 is a 14.0 inch Full HD TFT LCD module designed for compatible Notebook PC display applications. It features 1920×1080 resolution, 2 lane eDP interface with 2.7 Gbps link rate, FFS normally black display mode, anti-glare surface treatment, and 1200 cd/m² typical brightness.
The high-brightness backlight is suitable for notebook projects that require stronger screen visibility. The module supports 16.7 million colors with 6bit + 2FRC color depth, 45% NTSC color gamut, and a 60 Hz typical frame frequency.
Compatibility should be confirmed before ordering. Please check the original LCD model, resolution, connector type, connector position, pin definition, PCB structure, outline size, thickness, power requirements, and mounting method.
1920×1080 FHD resolution for compatible 14 inch notebook display applications.
1200 cd/m² typical brightness for notebook projects requiring higher screen luminance.
2 lane eDP interface with 2.7 Gbps link rate and eDP1.2 compatible input signals.
30 pin LV03030-13100 interface connector for compatible notebook cable and system matching.
FFS normally black display mode with 1200:1 typical contrast ratio and wide viewing characteristics.
Anti-glare surface treatment helps reduce reflections during normal notebook display use.

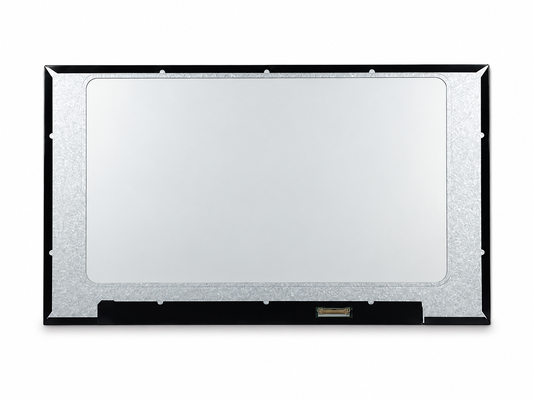

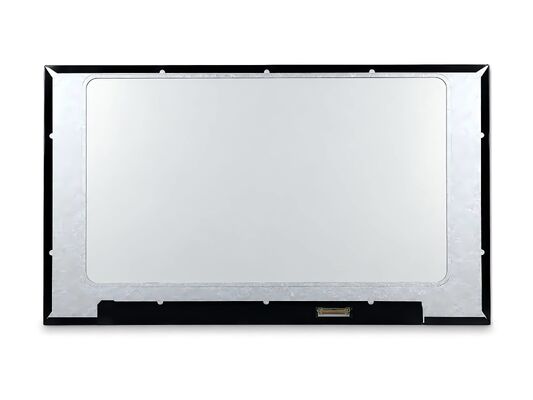

Rear-side view for checking the module structure, PCB area, connector position, and installation direction.
Enlarged view for checking the 30 pin eDP connector position, PCB area, and cable matching requirements.
| Model | YVO1400VQE-Y2-12 |
| Display Size | 14.0 Inch |
| Resolution | 1920 × 1080 FHD |
| Active Area | 309.31(H) × 173.99(V) mm |
| Outline Size Without PCB | 315.81 ± 0.3(H) × 186.07 ± 0.3(V) × 3.0 Max. mm |
| Outline Size With PCB | 315.81 ± 0.3(H) × 186.07 ± 0.3(V) × 5.2 Max. mm |
| Pixel Pitch | 161.1 × 161.1 μm |
| Display Colors | 16.7M, 6bit + 2FRC |
| Color Gamut | 45% NTSC |
| Display Mode | FFS, Normally Black |
| Brightness | 1200 cd/m² Typ. |
| Contrast Ratio | 1000:1 Min. / 1200:1 Typ. |
| Viewing Angle | 80° Min. / 89° Max., All Directions |
| Response Time | 30 ms Typ. / 35 ms Max. |
| Frame Frequency | 60 Hz Typ. |
| Signal Interface | 2 Lane eDP, 2.7 Gbps, eDP1.2 Compatible |
| Connector | 30 Pin, LV03030-13100 |
| LCD Supply Voltage | 3.3V Typ. |
| Backlight | Bottom Edge, Single LED Lighting Bar |
| Surface Treatment | Anti-Glare |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -20 ~ 60°C |
| Weight | 285 g Typ. |
| Environmental Compliance | RoHS & Halogen Free |
Compatibility should be confirmed before ordering. Please check the original LCD model, resolution, 30 pin connector, eDP interface, connector position, PCB structure, outline dimensions, thickness, brightness requirement, and mounting method. The same 14 inch size and 1920×1080 resolution do not automatically guarantee compatibility.
We support laptop LCD screens and related display products for replacement, repair, OEM notebook projects, and spare parts supply.
Please provide the original LCD model, screen size, resolution, connector position, brightness requirement, quantity, and application. We can help check suitable models and compatibility requirements.
Products can be checked before shipment according to the confirmed model and order requirements, including panel appearance, connector condition, packaging, brightness version, and basic display function.
Please send the original LCD model number and clear photos of the original panel label, rear structure, and connector position. We will help check whether this model matches your requirement.
Yes. The specification lists 1200 cd/m² typical center luminance.
Yes. This model uses a 30 pin LV03030-13100 connector with a 2 lane eDP interface.
No. Connector type, pin definition, connector position, PCB structure, thickness, outline dimensions, brightness, and electrical specifications must also be compatible.
Please provide the original LCD model, required quantity, application, delivery country, and any special brightness or mechanical requirements.
Please send us the original LCD model number, screen size, resolution, interface, connector position, brightness requirement, required quantity, and application details.
Our team will help check model compatibility, availability, and suitable supply options.
