| Brand Name: | YZY |
| Model Number: | YVO1400VQE-Y2-6 |
| MOQ: | 500 pcs |
| Price: | $39 / Piece |
| Payment Terms: | T/T |
1920×1080 resolution, 2 lane eDP interface, 30 pin connector, 600 nits typical brightness, FFS normally black display mode, and anti-glare surface for compatible notebook display applications.
YVO1400VQE-Y2-6 is a 14.0 inch Full HD TFT LCD module designed for Notebook PC display applications. It features 1920×1080 resolution, 2 lane eDP interface with 2.7 Gbps link rate, FFS normally black display mode, anti-glare surface treatment, and 600 cd/m² typical brightness.
Compared with standard-brightness notebook LCD panels, the 600 nits backlight provides stronger screen visibility for applications requiring higher display brightness. The module supports 16.7 million colors with 6bit + 2FRC color depth and 45% NTSC color gamut.
Compatibility should be confirmed before ordering. Please check the original LCD model, resolution, 30 pin connector, eDP interface, connector position, outline dimensions, thickness, power requirements, and mounting structure.
1920×1080 FHD resolution for compatible 14 inch Notebook PC display applications.
550 cd/m² minimum and 600 cd/m² typical brightness for applications requiring higher screen luminance.
2 lane eDP interface with 2.7 Gbps link rate and eDP1.2 compatible input signals.
30 pin LV03030-13100 interface connector for compatible notebook cable and system matching.
FFS normally black display mode with wide viewing characteristics and 1200:1 typical contrast ratio.
Anti-glare surface treatment helps reduce reflections during normal display use.

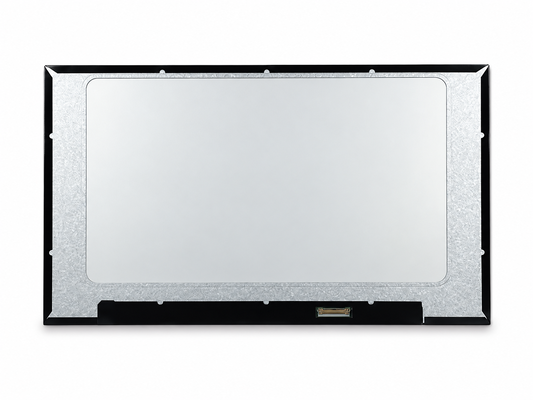

Rear-side view for checking the module structure, PCB area, connector position, and installation direction.
Enlarged view for checking the 30 pin eDP connector position, PCB area, and cable matching requirements.
| Model | YVO1400VQE-Y2-6 |
| Display Size | 14.0 Inch |
| Resolution | 1920 × 1080 FHD |
| Active Area | 309.31(H) × 173.99(V) mm |
| Outline Size Without PCB | 315.81 ± 0.3(H) × 186.07 ± 0.3(V) × 3.0 Max. mm |
| Outline Size With PCB | 315.81 ± 0.3(H) × 186.07 ± 0.3(V) × 5.2 Max. mm |
| Pixel Pitch | 161.1 × 161.1 μm |
| Display Colors | 16.7M, 6bit + 2FRC |
| Color Gamut | 45% NTSC |
| Display Mode | FFS, Normally Black |
| Brightness | 550 cd/m² Min. / 600 cd/m² Typ. |
| Contrast Ratio | 1000:1 Min. / 1200:1 Typ. |
| Viewing Angle | 80° Min. / 89° Max., All Directions |
| Response Time | 30 ms Typ. / 35 ms Max. |
| Signal Interface | 2 Lane eDP, 2.7 Gbps, eDP1.2 Compatible |
| Connector | 30 Pin, LV03030-13100 |
| LCD Supply Voltage | 3.3V Typ. |
| Backlight | Bottom Edge, Single LED Lighting Bar |
| LED Lifetime | 15,000 Hours Typ. |
| Surface Treatment | Anti-Glare |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -20 ~ 60°C |
| Weight | 285 g Typ. |
| Environmental Compliance | RoHS & Halogen Free |
Compatibility should be confirmed before ordering. Please check the original LCD model, resolution, 30 pin connector, eDP interface, connector position, outline dimensions, thickness, power requirements, and mounting structure. The same 14 inch size and 1920×1080 resolution do not automatically guarantee compatibility.
We support laptop LCD screens and related display products for replacement, repair, OEM notebook projects, and spare parts supply.
Please provide the original LCD model, screen size, resolution, connector position, brightness requirement, quantity, and application. We can help check suitable models and compatibility requirements.
Products can be checked before shipment according to the confirmed model and order requirements, including panel appearance, connector condition, packaging, and basic display function.
Please send the original LCD model number and clear photos of the original panel label, rear structure, and connector position. We will help check whether this model matches your requirement.
Yes. The specification lists 550 cd/m² minimum and 600 cd/m² typical center luminance.
Yes. This model uses a 30 pin LV03030-13100 connector with a 2 lane eDP interface.
No. The connector, pin definition, connector position, panel thickness, outline dimensions, brightness, and electrical specifications must also be compatible.
Please provide the original LCD model, required quantity, application, delivery country, and any special brightness or mechanical requirements.
Please send us the original LCD model number, screen size, resolution, interface, connector position, brightness requirement, required quantity, and application details.
Our team will help check model compatibility, availability, and suitable supply options.
