| Brand Name: | YZY |
| Model Number: | YVO1400VQE-Y1-6 |
| MOQ: | 500 pcs |
| Price: | $38 / Piece |
| Payment Terms: | T/T |
1920×1080 resolution, 2 lane eDP interface, 30 pin straight connector structure, 600 nits typical brightness, FFS normally black display mode, and anti-glare surface for compatible notebook display applications.

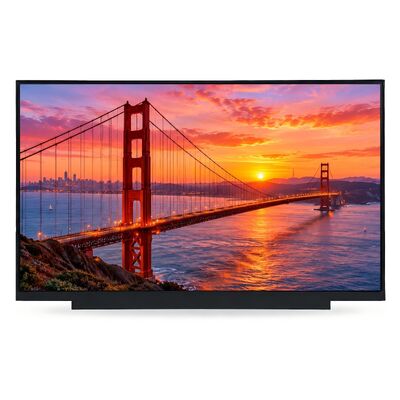

YVO1400VQE-Y1-6 is a 14.0 inch Full HD TFT LCD module designed for compatible Notebook PC display applications. It features 1920×1080 resolution, 2 lane eDP interface with 2.7 Gbps link rate, 30 pin straight connector structure, FFS normally black display mode, anti-glare surface treatment, and 600 cd/m² typical brightness.
This high-brightness version provides 550 cd/m² minimum and 600 cd/m² typical luminance. The module supports 16.7 million colors with 6bit + 2FRC color depth and 45% NTSC color gamut.
The straight PCB and connector section extends beyond the main LCD panel outline. The panel height is 186.07 mm without PCB and 193.95 mm including the PCB area, which should be considered when matching the original notebook installation structure.
Compatibility should be confirmed before ordering. Please check the original LCD model, resolution, connector type, straight connector structure, connector position, pin definition, PCB layout, outline dimensions, thickness, and mounting method.
1920×1080 FHD resolution for compatible notebook screen replacement, repair, and OEM display projects.
550 cd/m² minimum and 600 cd/m² typical brightness for applications requiring stronger screen visibility.
Straight PCB and connector layout extending beyond the main panel outline for matching compatible notebook structures.
2 lane eDP interface with 2.7 Gbps link rate and eDP1.2 compatible input signals.
30 pin LV03030-13100 connector for compatible notebook cable and motherboard matching.
FFS normally black display mode with 1200:1 typical contrast ratio and wide viewing characteristics.
Anti-glare surface treatment helps reduce reflections during normal notebook display use.
Rear-side view for checking the straight PCB structure, connector position, module outline, and installation direction.
Enlarged detail for checking the 30 pin eDP connector position, PCB area, insertion direction, and cable matching requirements.
| Model | YVO1400VQE-Y1-6 |
| Display Size | 14.0 Inch |
| Resolution | 1920 × 1080 FHD |
| Active Area | 309.31(H) × 173.99(V) mm |
| Outline Size Without PCB | 315.81 ± 0.3(H) × 186.07 ± 0.3(V) × 3.0 Max. mm |
| Outline Size With PCB | 315.81 ± 0.3(H) × 193.95 ± 0.5(V) × 3.0 Max. mm |
| Structure Type | Straight Connector / Extended PCB Structure |
| Pixel Pitch | 161.1 × 161.1 μm |
| Display Colors | 16.7M, 6bit + 2FRC |
| Color Gamut | 45% NTSC |
| Display Mode | FFS, Normally Black |
| Brightness | 550 cd/m² Min. / 600 cd/m² Typ. |
| Contrast Ratio | 1000:1 Min. / 1200:1 Typ. |
| Viewing Angle | 80° Min. / 89° Max., All Directions |
| Response Time | 30 ms Typ. / 35 ms Max. |
| Frame Frequency | 60 Hz Typ. |
| Signal Interface | 2 Lane eDP, 2.7 Gbps, eDP1.2 Compatible |
| Connector | 30 Pin, LV03030-13100 |
| LCD Supply Voltage | 3.3V Typ. |
| Backlight | Bottom Edge, Single LED Lighting Bar |
| LED Array | 54 LEDs |
| LED Lifetime | 15,000 Hours Typ. |
| Surface Treatment | Anti-Glare |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -20 ~ 60°C |
| Weight | 286 g Typ. |
| Environmental Compliance | RoHS & Halogen Free |
Compatibility should be confirmed before ordering. Please check the original LCD model, resolution, 30 pin eDP connector, straight connector structure, connector position, PCB layout, outline size with PCB, thickness, brightness requirement, and mounting method. The same 14 inch size and 1920×1080 resolution do not automatically guarantee compatibility.
We support laptop LCD screens and related display products for replacement, repair, OEM notebook projects, and spare parts supply.
Please provide the original LCD model, screen size, resolution, connector position, structure type, brightness requirement, required quantity, and application. We can help check suitable models and compatibility requirements.
Products can be checked before shipment according to the confirmed model and order requirements, including panel appearance, connector condition, structure type, brightness version, packaging, and basic display function.
Yes. This model uses a straight connector structure with the PCB and connector section extending beyond the main panel outline.
Yes. The specification lists 550 cd/m² minimum and 600 cd/m² typical center luminance.
Yes. This model uses a 30 pin LV03030-13100 connector with a 2 lane eDP interface.
The LCD body is 186.07 mm high without the PCB section. Including the straight extended PCB and connector area, the total height is 193.95 mm.
No. Connector type, pin definition, straight or rear-folded structure, connector position, outline dimensions, thickness, brightness, and electrical specifications must also be compatible.
Please provide the original LCD model, required quantity, application, delivery country, connector structure, brightness requirement, and any special electrical or mechanical requirements.
Please send us the original LCD model number, screen size, resolution, interface, connector position, structure type, brightness requirement, required quantity, and application details.
Our team will help check model compatibility, connector structure, brightness version, availability, and suitable supply options.
