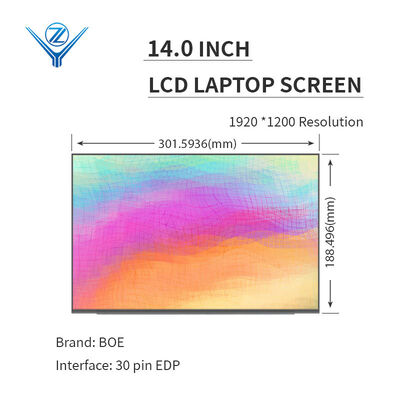

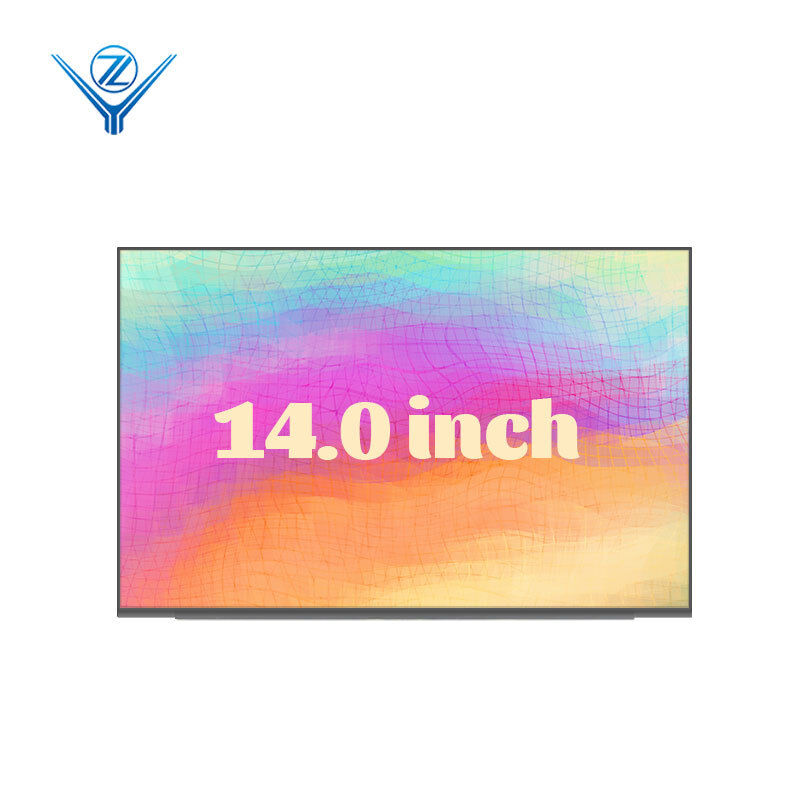

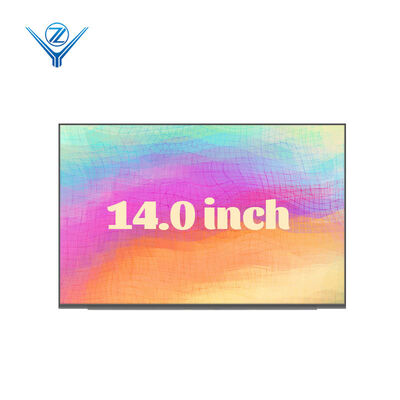

14.0 Inch BOE LCD Screen 1920x1200 Resolution 2 Lane 30 Pin EDP Interface With LCM Type LCD

The core advantages of the NV140WUM-N43 14.0-inch laptop screen lie in WUXGA high-definition display, ultra-slim low-power design, stable interface compatibility, and long-term reliability, with targeted optimization for portable notebook scenarios. The details are as follows:

Δ WUXGA Clear Display, Comfortable Visual Experience
♦ 14-inch WUXGA (1920×1200) resolution with 157.08μm uniform pixel pitch, ensuring sharp text, detailed images, and suitable for office document editing, online courses, and daily video entertainment.
♦ Supports 16.2 million colors and 45% NTSC color gamut, realizing natural color reproduction that adapts to mainstream daily usage scenarios (e.g., photo browsing, video playback).
♦ Anti-glare coating with 3H hardness reduces ambient light reflection (e.g., indoor lights, outdoor sunlight) and resists slight scratches from daily use (e.g., accidental contact with stationery), balancing visual comfort and durability.
♦ Excellent wide viewing angle performance: horizontal (3/9 o’clock) and vertical (6/12 o’clock) viewing angles both reach 80-89° (CR>10), ensuring clear picture quality when multiple people share the screen or use the laptop sideways.

Δ Ultra-Slim Lightweight & Low-Power, Enhancing Notebook Portability

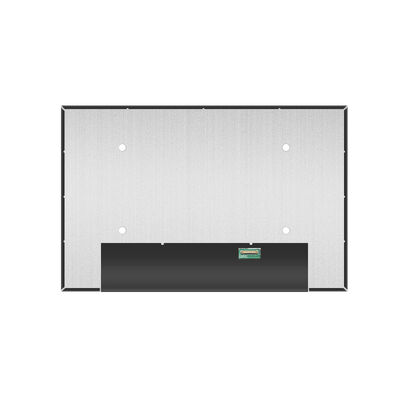

♦ Slim structure design: maximum thickness of only 3.0mm (without PCBA) and 5.1mm (with PCBA), maximum weight of 300g, effectively reducing the overall thickness and weight of the notebook, making it easier to carry in backpacks.
♦ Low-power consumption advantage: total power consumption max 3.2W (@ Mosaic pattern), backlight power max 2.6W, which can extend the notebook’s battery life by 1-2 hours (compared to high-power screens) and reduce the frequency of charging during outdoor use.
♦ Green environmental protection: complies with RoHS standards and is halogen-free, meeting the environmental requirements of global notebook brands and avoiding harmful substances to human health and the environment.

Δ  High-Performance eDP Interface & Strong Compatibility

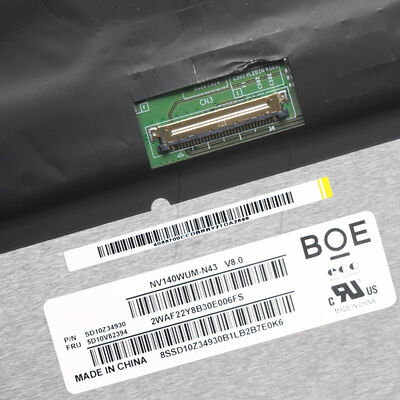

♦ Equipped with eDP 1.2 interface, 2 lanes, and 2.7Gbps transmission rate, enabling fast and stable data transmission (no lag when playing 1080P videos) and compatible with mainstream notebook motherboard solutions (e.g., Intel, AMD platforms).
♦ Built-in EDID chip and supports BIST (Panel Self-Test)/FRC (Frame Rate Control) functions: BIST enables one-click self-test of screen status during notebook assembly, reducing fault diagnosis time; FRC optimizes color transition smoothness.
♦ Supports DPCD Version 1.1, matching standardized HPD (Hot Plug Detect) signal and AUX channel design, minimizing connection abnormalities (e.g., screen flicker, no display) and improving user experience.

Δ High Reliability & Long Service Life, Worry-Free Usage
♦ Durable backlight system: single bottom-side LED lighting bar (50-LED array) with a service life of up to 15,000 hours (equivalent to 8 hours of daily use for 5 years), no need to replace the backlight due to attenuation.
♦ Rigorous reliability tests: passes high-temperature (50℃) operation, low-temperature (0℃) operation, thermal shock (-20℃↔60℃), vibration (1.5G, 10-500Hz), and ESD (±15KV air discharge) tests, adapting to different usage environments (e.g., cold winter, hot summer).
♦ Built-in LED driving circuit simplifies the notebook motherboard design, and the standardized power sequence (compliant with 8.0 Power Sequence requirements) prevents latch-up risks, extending the screen’s service life.
