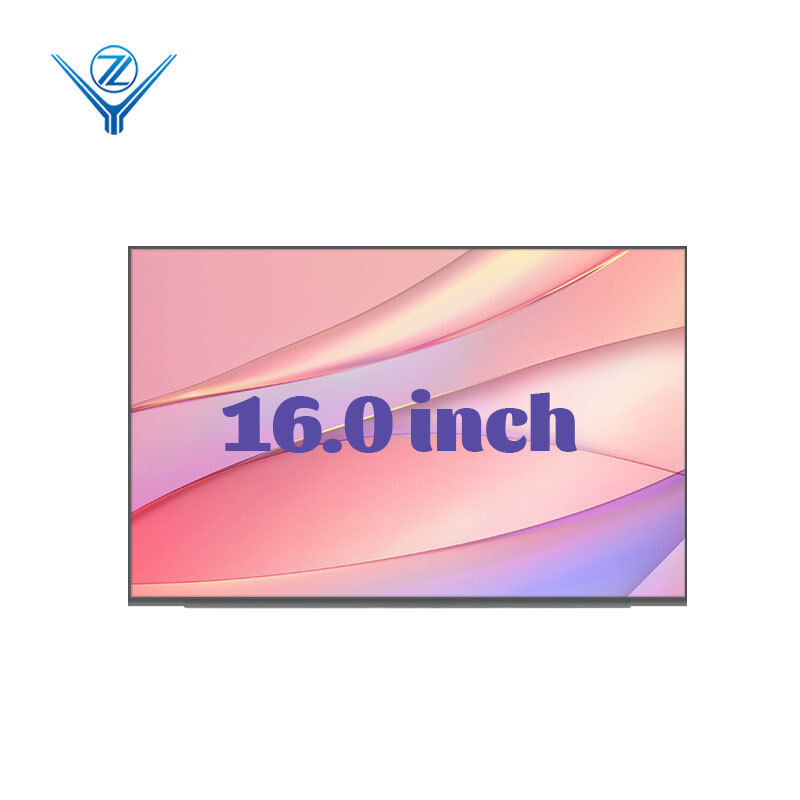

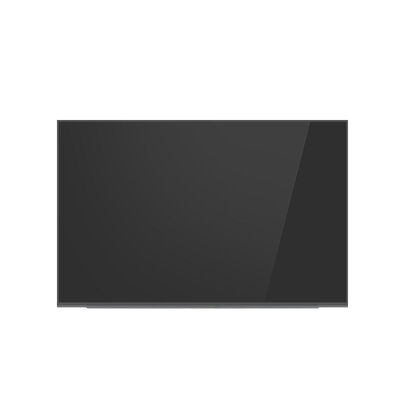

16.0 Inch BOE LCD Display 1920x1200 Resolution 2 Lane 30 Pin EDP LCD Screen

The core advantages of the NV160WUM-N43 V8.1 16-inch laptop screen lie in WUXGA high-definition display, 2-lane eDP high-speed transmission, slim low-power design, and long-term reliability, with targeted optimization for mainstream notebook scenarios. The details are as follows:

Δ WUXGA Clear Display, Immersive Visual Experience
♦ 16-inch WUXGA (1920×1200) resolution with 179.52μm uniform pixel pitch, ensuring sharp text and vivid images for office, design, and video entertainment.
♦ Supports 16.7 million colors and 45% NTSC color gamut, realizing natural color reproduction to meet daily and professional usage scenarios.
♦ Anti-glare coating with 3H hardness reduces ambient light reflection and resists slight scratches, balancing visual comfort and durability.
♦ Excellent wide viewing angle performance: horizontal and vertical viewing angles up to 89° (CR>10), ensuring clear images when sharing the screen or using sideways.

Δ Slim Lightweight & Low-Power, Enhance Portability
♦ Ultra-slim structure design: maximum thickness of 3.2mm (without PCBA) and 5.3mm (with PCBA), maximum weight of 350g, reducing laptop overall thickness and weight for easier carrying.
♦ Outstanding low-power advantage: total power consumption max 4.2W, backlight power max 3.6W, extending laptop battery life and reducing charging frequency during outdoor use.
♦ Green environmental protection: RoHS compliant and halogen-free, meeting global notebook brand environmental requirements and avoiding harmful substances.

Δ  2-Lane eDP 1.4 Interface & Stable Compatibility
♦ Equipped with eDP 1.4 interface, 2 lanes and 2.7Gbps transmission rate, enabling fast stable data transmission (no lag for high-definition video playback) and compatible with mainstream laptop motherboards (Intel/AMD platforms).
♦ Built-in EDID chip and supports PSR/BIST functions: PSR reduces power consumption in standby, BIST enables one-click self-test during assembly, reducing fault diagnosis time.
♦ Supports DPCD Version 1.3, with standardized HPD signal and AUX channel design, achieving high connection stability and minimizing signal interruption or display abnormality.

Δ High Reliability & Long Service Life, Worry-Free Usage
♦ Durable backlight system: single bottom-side LED lighting bar (60-LED array) with 15,000-hour service life (8 hours daily use for 5 years), no backlight attenuation concerns.
♦ Rigorous reliability tests: passes high/low temperature storage/operation, thermal shock (-20°C↔60°C), vibration (1.5G, 10-500Hz), and ESD tests (±15KV air discharge), adapting to various environments.
♦ Built-in LED driving circuit simplifies motherboard design; standardized power sequence prevents latch-up risks, extending screen service life and reducing maintenance costs.
