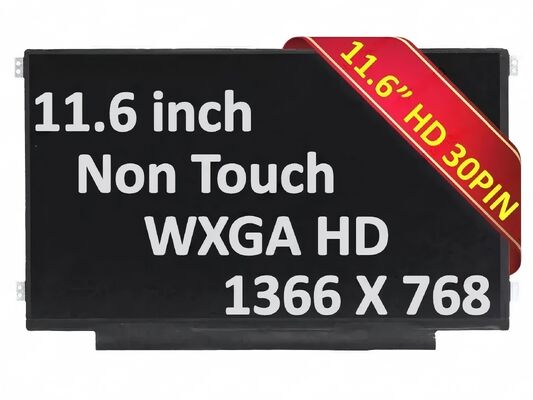

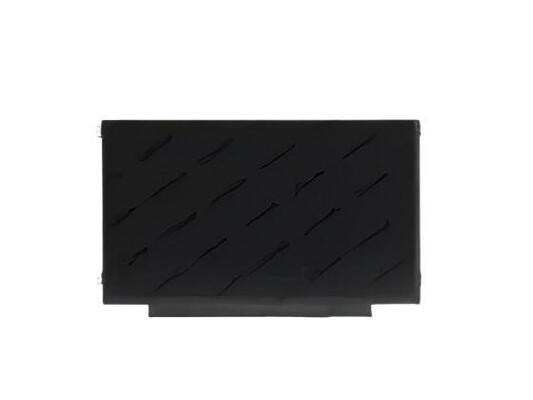

11.6 Inch Laptop LCD Screen HKC MB116AN01 1366x768 Resolution 1 Lane 30 Pin EDP Interface

The core advantages of the MB116AN01 11.6-inch laptop screen lie in HD practical display, ultra-slim lightweight design, stable eDP interface compatibility, and long-term reliability, with targeted optimization for ultraportable notebook scenarios. The details are as follows:

Δ HD Clear Display, Comfortable Visual Experience
♦ 11.6-inch HD (1366×768) resolution with 0.1875μm uniform pixel pitch, ensuring sharp text and clear images for office documents, online courses, and daily video entertainment.
♦ Supports 262K colors and 45% NTSC color gamut, realizing natural color reproduction that adapts to mainstream daily usage scenarios.
♦ Anti-glare coating with 25% haze reduces ambient light reflection (indoor lights, outdoor sunlight) and 3H hardness resists slight scratches, balancing visual comfort and durability.
♦ Excellent wide viewing angle performance: horizontal 45° and vertical 35° viewing angles with CR≥10, ensuring clear picture quality when sharing the screen or using the laptop sideways.

Δ Ultra-Slim Lightweight & Low-Power, Ideal for Portability
♦ Ultra-slim structure design: maximum thickness of 3.0mm, maximum weight of 200g, effectively reducing the overall thickness and weight of ultraportable notebooks for easier carrying.
♦ Outstanding low-power advantage: total power consumption max 3.0W, backlight power max 2.3W, extending notebook battery life and reducing charging frequency during outdoor use.
♦ Green environmental protection: complies with RoHS standards and is halogen-free, meeting global notebook brand environmental requirements and avoiding harmful substances.

Δ  1-Lane eDP Interface & Strong Compatibility

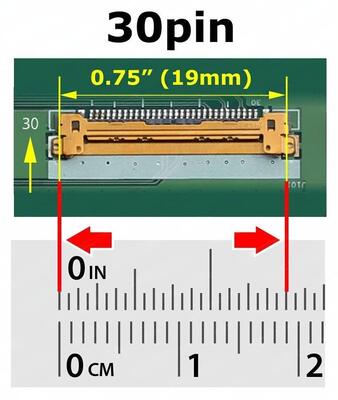

♦ Equipped with eDP 1.2 interface, 1 lane, 2.7Gbps transmission rate, enabling fast stable data transmission (no lag for HD video playback) and compatible with mainstream notebook motherboards (Intel/AMD platforms).
♦ Supports DC dimming mode, reducing screen flicker and relieving eye fatigue during long-term use.
♦ Standardized HPD signal and AUX channel design, minimizing connection abnormalities (screen flicker, no display) and ensuring stable user experience.

Δ High Reliability & Long Service Life, Worry-Free Usage
♦ Durable backlight system: single LED lighting bar with 15,000-hour service life (8 hours daily use for 5 years), no backlight attenuation concerns.
♦ Rigorous reliability tests: passes high-temperature (50℃) operation, low-temperature (0℃) operation, thermal shock (-20℃↔60℃), vibration (1.5Grms), and ESD tests (±15KV air discharge), adapting to various environments.
♦ Built-in LED driving circuit simplifies motherboard design; standardized power sequence prevents latch-up risks, extending screen service life and reducing maintenance costs.
