7 Inch Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor

Products

7 Inch Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor

MOQ:	100
Price:	$105-119/pieces
Standard Packaging:	BOX
Delivery Period:	30-45Days
Payment Method:	T/T
Supply Capacity:	5K/Months

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

Certification

CE、EMC

Model Number

YCXX6-7

Document

Type:

Display Size:

7 Inch

Supplier Type:

Factory

Backlight Type:

Resolution:

Optional

Brightness:

Operating Temperature:

-10-60

Brand:

Display Type:

Mounting Type:

Embedded

Operating System:

Windows 7/8/10 / Linux/ VxWorks/ QNX/Android11/12/13

Touch:

USB Interface Multi-touch

Audio:

Realtek ACL662 Audio Controller

I/O Interface:

HDMI/RJ45/VGA/DC/DVI

Outline Dimension:

225.04*160.7*59mm

Power Supply:

DC 12V

Highlight:

7 Inch Industrial Touch Display

Wide Temperature Range Embedded Monitor

Multi-Touch Industrial Monitor

Product Description

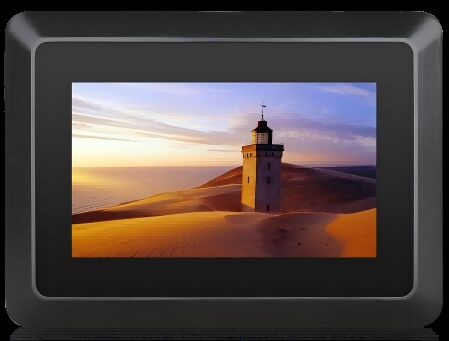

YCXX6-7 7 Inch Industrial Touch Display with Wide Temperature Range Pressure-Resistant Multi-Touch Embedded Monitor

The YCXX6-7 industrial touch display features a full aluminum alloy structure with fanless, fully enclosed design and low power consumption. This compact monitor is specifically engineered for diverse environmental conditions, ensuring long-term stable operation in harsh industrial settings.

Robust Construction for Industrial Applications

The compact design supports multiple installation methods. Built with military-grade aluminum alloy structure and efficient heat dissipation design (compatible with fans), this monitor ensures stable operation in harsh environments while increasing service life, safety, and efficiency with zero noise operation.

Key Features

RTD2483 Chip for high-performance processing
Full military-grade aluminum alloy construction for high temperature resistance, corrosion resistance, and pressure resistance
Fine workmanship and long service life suitable for harsh environments
Efficient heat dissipation design compatible with fan cooling
Simplified interior without redundant wiring for uninterrupted operation
Capacitive touch screen with intuitive operation and high durability
Compatible with resistive touch technology
Comprehensive input and output interfaces for connecting various equipment

Technical Specifications

Screen Parameters

Parameter	Specification
Size	7"
Resolution	1024×600
View Angle	75/75/70/75 (L/R/U/D)
Color	Chroma: 16.7M
Brightness	300 cd/m²
Contrast	500:1
Response Time	6.5 ms
Display Area	154.214 × 85.92 mm
Pixel Pitch	0.1506×0.1432 (H×V)

Touch Screen & Connectivity

Parameter	Specification
Touch Type	Capacitive touch screen
Resolution	500DPI
Input Method	Handwriting or capacitive pen
Surface Hardness	7H
Calibration	Supported
HDMI	Support HDMI data output, up to 1080P
RJ45	Touch interface
VGA	1 port
DVI	1 port
Earphone Jack	3.5mm standard interface

Hardware Configuration

Component	Specification
CPU	RTD2483
System Language	English, Chinese
Video Input	PC-RGB: Format up to 1920*1080@60HZ, Color 16bit, 24bit, 32bit
Key Functions	AUTO, MENU, POWER, LEFT, RIGHT

Power Specifications

Parameter	Specification
DC Input	DC 12~24V
Power Consumption (Max)	12W
Power Input	AC 100-240V 50/60Hz (CCC, CE certified)
Power Output	DC12V / 4A

Dimensional Information

Overall Dimensions: 225.04 × 160.7 × 59mm (L × W × H)
