| MOQ: | 1000 pieces |
| Price: | $25~29/pieces |
| Standard Packaging: | 8*8*4 |
| Delivery Period: | 14-60 days |
| Payment Method: | T/T |
| Supply Capacity: | 10000 pieces |

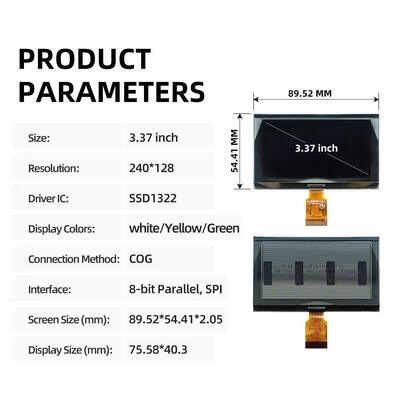

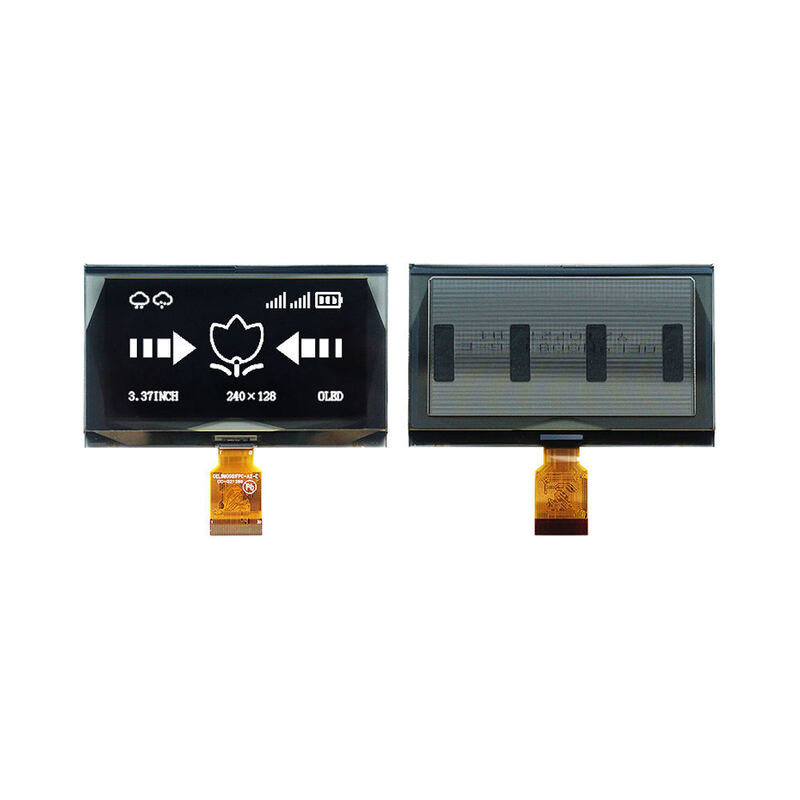

| Product | 3.37 inch OLED Module | Module Number | GME240128-01 |
| Resolution | 240(H)×128(V) dots | Display Color | Yellow (Monochrome) |
| Brightness | 40 Cd/m² (Min.), 50 Cd/m² (Typ.) | Outline Dimensions (Panel) | 89.52(W)×54.41(H)×2.05±0.2(T) |
| Viewing Angle | 160 Degree (Full Direction) | Active Area | 75.58(W)×40.30(H) |
| Interface | Parallel (8080/6800 MPU) / Serial (3-Wire SPI / 4-Wire SPI) | Operating Temperature | -30 ~ +80 ℃ |
| Driver IC | SSD1322Z2 | Storage Temperature | -40 ~ +85 ℃ |
| IC Package Type | COG with ZIF tail | Duty | 1/128 |
| Pixel Pitch | 0.315(W)×0.315(H) | Grayscale | 4 Bit |
| Pixel Size | 0.290(W)×0.290(H) | Weight | 20 g |
| Contrast Ratio | 10000:1 (Darkroom) | Operating Life Time | 45,000 Hours (at 50 Cd/m²) |
| Power Consumption | 400 mW (Typ., 30% pixels ON) | Response Time | 0.02 ms (Rise/Fall) |

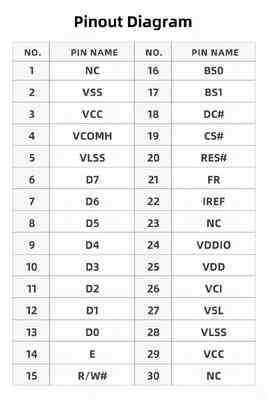

| PIN | Symbol | Description |
|---|---|---|
| 1 | NC | No connection |
| 2 | VSS | Ground. Common Voltage Reference Pin |
| 3 | VCC | Power supply for panel driving voltage. Segment voltage |
| 4 | VCOMH | Reference Pin. COM signal deselected voltage level. High Level Voltage Output Of COM Signal |
| 5 | VLSS | Analog system ground pin. Voltage Supply |
| 6-13 | D7-D0 | Bi-directional data bus connecting to the MCU data bus. Unused pins recommended to tie LOW (D2 pulled low in SPI mode) |
| 14 | E (RD#) | MCU Interface Input pin. 6800 mode: enable signal (high level initiates read/write). 8080 mode: read signal (low level initiates read). SPI mode: must connect to ground |
| 15 | R/W#(WR#) | MCU Interface Input pin, in 6800 parallel mode, it is used as read/write selection input, read mode will be carried out when this pin is pulled high while write mode with this pin pulled low. In 8080 parallel mode, this pin will be write input, write operation is initiated when this is pulled low with chip selected. When SPI interface is selected, this pin must be connected to ground. |
| 16-17 | BS0-1 | MCU bus interface selection pins. Select appropriate logic setting for interface type |
| 18 | DC# | Data/Command control pin. HIGH: D[7:0] = data; LOW: D[7:0] = command |
| 19 | CS# | Chip select input. Chip enabled for MCU communication when pulled LOW |
| 20 | RES# | Reset signal input. Pull LOW for initialization; keep HIGH during normal operation |
| 21 | FR | No connection. Must be left open individually |
| 22 | IREF | Segment output current reference pin. Connect to VSS via resistor to maintain ~10uA current |
| 23 | NC | No connection |
| 24 | VDDIO | Power supply for interface logic level. Match with MCU interface voltage |
| 25 | VDD | Power supply pin for core logic operation. Connect capacitor to VSS |
| 26 | VCI | Low voltage power supply. Must be ≥ VDD and VDDIO |
| 27 | VSL | Segment voltage reference pin. Connect with resistor and diode to ground when using external VSL |
| 28 | VLSS | Analog system ground pin |
| 29 | VCC | Power supply for panel driving voltage. Segment Voltage |
| 30 | NC | No connection |
| MOQ: | 1000 pieces |
| Price: | $25~29/pieces |
| Standard Packaging: | 8*8*4 |
| Delivery Period: | 14-60 days |
| Payment Method: | T/T |
| Supply Capacity: | 10000 pieces |
| Product | 3.37 inch OLED Module | Module Number | GME240128-01 |
| Resolution | 240(H)×128(V) dots | Display Color | Yellow (Monochrome) |
| Brightness | 40 Cd/m² (Min.), 50 Cd/m² (Typ.) | Outline Dimensions (Panel) | 89.52(W)×54.41(H)×2.05±0.2(T) |
| Viewing Angle | 160 Degree (Full Direction) | Active Area | 75.58(W)×40.30(H) |
| Interface | Parallel (8080/6800 MPU) / Serial (3-Wire SPI / 4-Wire SPI) | Operating Temperature | -30 ~ +80 ℃ |
| Driver IC | SSD1322Z2 | Storage Temperature | -40 ~ +85 ℃ |
| IC Package Type | COG with ZIF tail | Duty | 1/128 |
| Pixel Pitch | 0.315(W)×0.315(H) | Grayscale | 4 Bit |
| Pixel Size | 0.290(W)×0.290(H) | Weight | 20 g |
| Contrast Ratio | 10000:1 (Darkroom) | Operating Life Time | 45,000 Hours (at 50 Cd/m²) |
| Power Consumption | 400 mW (Typ., 30% pixels ON) | Response Time | 0.02 ms (Rise/Fall) |
| PIN | Symbol | Description |
|---|---|---|
| 1 | NC | No connection |
| 2 | VSS | Ground. Common Voltage Reference Pin |
| 3 | VCC | Power supply for panel driving voltage. Segment voltage |
| 4 | VCOMH | Reference Pin. COM signal deselected voltage level. High Level Voltage Output Of COM Signal |
| 5 | VLSS | Analog system ground pin. Voltage Supply |
| 6-13 | D7-D0 | Bi-directional data bus connecting to the MCU data bus. Unused pins recommended to tie LOW (D2 pulled low in SPI mode) |
| 14 | E (RD#) | MCU Interface Input pin. 6800 mode: enable signal (high level initiates read/write). 8080 mode: read signal (low level initiates read). SPI mode: must connect to ground |
| 15 | R/W#(WR#) | MCU Interface Input pin, in 6800 parallel mode, it is used as read/write selection input, read mode will be carried out when this pin is pulled high while write mode with this pin pulled low. In 8080 parallel mode, this pin will be write input, write operation is initiated when this is pulled low with chip selected. When SPI interface is selected, this pin must be connected to ground. |
| 16-17 | BS0-1 | MCU bus interface selection pins. Select appropriate logic setting for interface type |
| 18 | DC# | Data/Command control pin. HIGH: D[7:0] = data; LOW: D[7:0] = command |
| 19 | CS# | Chip select input. Chip enabled for MCU communication when pulled LOW |
| 20 | RES# | Reset signal input. Pull LOW for initialization; keep HIGH during normal operation |
| 21 | FR | No connection. Must be left open individually |
| 22 | IREF | Segment output current reference pin. Connect to VSS via resistor to maintain ~10uA current |
| 23 | NC | No connection |
| 24 | VDDIO | Power supply for interface logic level. Match with MCU interface voltage |
| 25 | VDD | Power supply pin for core logic operation. Connect capacitor to VSS |
| 26 | VCI | Low voltage power supply. Must be ≥ VDD and VDDIO |
| 27 | VSL | Segment voltage reference pin. Connect with resistor and diode to ground when using external VSL |
| 28 | VLSS | Analog system ground pin |
| 29 | VCC | Power supply for panel driving voltage. Segment Voltage |
| 30 | NC | No connection |
