0.63-Inch OLED Display Module with 120x28 Resolution and I2C Interface
  • name
  • name
  • name

0.63-Inch OLED Display Module with 120x28 Resolution and I2C Interface

MOQ: 1000 pieces
Price: $0.99~2.99/pieces
Standard Packaging: 5*4*3
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 Pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
GME12028-01
Highlight:

0.63-inch OLED Display Module

,

120x28 Resolution OLED Module

,

I2C Interface OLED Display

Product Description
0.63-Inch OLED Display Module with 120x28 Resolution and I2C Interface
This high-performance 0.63-inch OLED module features 120×28 resolution and supports I2C interface, offering monochrome white display. Equipped with SSD1312 driver IC, it delivers clear, sharp visuals with excellent stability and low power consumption. With a wide operating temperature range (-40℃ to +85℃) and RoHS compliance, it's ideal for portable devices, IoT terminals, smart wearables, industrial controls, and various small electronic products requiring ultra-compact display solutions.

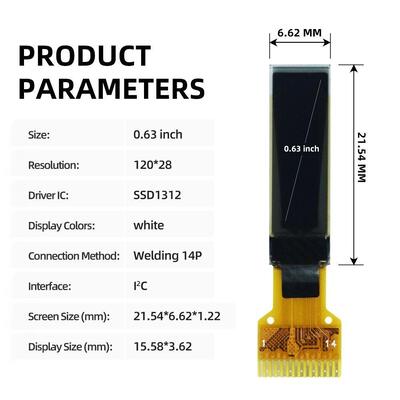

Key Specifications
Product 0.63 Inch OLED Module Number GME12028-01
Resolution 120(H)×28(V) dots Color White
Panel Size (W×H×T) 21.54 mm × 6.62 mm × 1.22 mm Active Area (W×H) 15.58 mm × 3.62 mm
Pixel Pitch 0.13 mm × 0.13 mm Pixel Size 0.11 mm × 0.11 mm
Interface I2C Operating Temperature -40℃ to +85℃
Driver IC SSD1312 Storage Temperature -65℃ to +150℃ (Polarizer max 80℃)
FPC Number NFP1312-01 RoHS Compliance YES
Display Mode Passive Matrix Drive Duty 1/28 Duty
Product Highlights
0.63-inch ultra-compact OLED display, 120×28 resolution, I2C interface, SSD1312 driver IC, white monochrome display, wide temperature range (-40~85℃), 2000:1 high contrast ratio, low power consumption (180μA typical operating current), COG package, RoHS compliant, easy integration, suitable for space-constrained electronic devices
Technical Features
  • I2C interface support for simple wiring and stable data transmission, reducing integration complexity for compact electronic products
  • Ultra-compact 0.63-inch size with 120×28 resolution, perfect for space-constrained devices requiring essential display functionality
  • Wide operating temperature range (-40℃ to +85℃) adapts to extreme indoor, outdoor and industrial environment applications
  • High contrast ratio of 2000:1 for sharp, clear visuals with excellent readability in various lighting conditions
  • Equipped with SSD1312 driver IC, ensuring reliable performance, low power consumption and smooth display effects
  • Long lifetime (50,000 hours at 60 cd/m² brightness) for durable use in long-term operation scenarios
  • Low sleep mode current (1μA typical) ideal for battery-powered portable devices requiring extended standby time
  • Free viewing angle design for convenient readability from multiple directions without color distortion
  • Precision manufacturing with strict tolerance control (±0.3mm) for consistent product dimensions and reliable assembly
Electrical Specifications
Key power supply pins: VDD (Logic Power, 1.65-3.3V), VCC (Panel Power, 7.5-9.5V), VBAT (DC/DC Power, 3.5-4.2V), VSS (Ground)
Data transmission pins: SCL (I2C Clock), SDA (I2C Data) for bidirectional communication
Brightness: Minimum 220 cd/m² (typical 270 cd/m² with internal DC/DC)
Operating Current: VDD (180μA typical), VCC (11mA typical external supply), VBAT (19mA typical internal DC/DC)
Pin Definition
PIN Symbol Description
1 C2P Positive Terminal of Flying Inverting Capacitor (for DC/DC converter)
2 C2N Negative Terminal of Flying Boost Capacitor (for DC/DC converter)
3 C1P Positive Terminal of Flying Capacitor (for DC/DC converter)
4 C1N Negative Terminal of Flying Capacitor (for DC/DC converter)
5 VBAT Power Supply for DC/DC Converter Circuit (3.5-4.2V when enabled)
6 NC Reserve Pin (No Connection)
7 VSS Ground of Logic Circuit; Reference for all voltage signals
8 VDD Power Supply for Logic (1.65-3.3V); Must be connected to external source
9 RES# Power Reset for Controller and Driver; Pull high during normal operation
10 SCL I2C Bus Clock Signal; Provides clock for data synchronization
11 SDA I2C Bus Data Signal; Bidirectional data transmission between module and controller
12 IREF Current Reference for Brightness Adjustment; Connect resistor to VSS (max 12.5μA)
13 VCOMH Volume Output High Level for COM Signal; Connect capacitor to VSS
14 VCC Power Supply for OEL Panel (7.5-9.5V); Connect stabilization capacitor to VSS
Application Scenarios
  • Smart wearables (mini fitness trackers, small sports bracelets, compact health monitors)
  • Portable electronic devices (handheld meters, tiny detectors, mini data loggers, compact scanners)
  • IoT terminals and smart sensors (environmental monitors, wireless controllers, small smart home sensors)
  • Industrial control systems (compact PLC panels, sensor data displays, mini industrial controllers)
  • Small consumer electronics (portable audio players, miniature remote controls, tiny POS machines)
  • Automotive electronics (in-vehicle small displays, secondary control panels, tire pressure monitors)
  • Medical devices (portable medical monitors, small diagnostic equipment, compact health testing tools)
  • DIY electronics and hobby projects (Arduino/Raspberry Pi compatible displays, compact electronic prototypes)
  • Space-constrained devices (microcontrollers, tiny embedded systems, compact IoT nodes)
Customization Options
  • Interface Optimization: I2C address adjustment and communication parameter customization to match specific MCU requirements
  • PCB Customization: PCB size, shape and pin layout adjustments for special installation scenarios
  • Polarizer Customization: Anti-glare, wide-view polarizer options for outdoor or special viewing environment needs
  • Brightness Tuning: Custom brightness levels (220-270 cd/m²) to meet specific application requirements
  • Packaging Solution: Custom anti-static packaging, vacuum packaging with desiccant for long-term storage (over 6 months)
  • Warranty Extension: Extended warranty options (18~24 months) for bulk orders (500+ pcs)
  • Labeling Service: Custom part number or logo printing on PCB for inventory management and brand promotion
  • Power Configuration: Custom DC/DC converter settings for specific voltage requirements
Handling Notes
  • Electrostatic Protection: Use anti-static bracelets and grounded tools during handling. Avoid assembly in dry environments (recommended relative humidity 45%~60%). Do not touch pins, PCB patterns or polarizer directly with bare hands.
  • Cleaning Instructions: The polarizer surface is fragile and scratch-prone. Clean with Scotch Mending Tape No. 810 or equivalent. Do not use water, ethyl alcohol, ketone or aromatic solvents--they may damage the polarizer.
  • Storage Conditions: Store in anti-static bags at 23±5℃, humidity ≤45±20%RH. Avoid direct sunlight, high temperature/humidity or low temperature environments (below 0℃). Use modules within 6 months; recheck performance if stored over 12 months.
  • Operation Precautions: Follow correct power-on/power-off sequences (100ms delay required) to avoid damage. Do not apply signals when power is off; avoid fixed pattern display for long periods to prevent afterimages.
  • Soldering Tips: Welding temperature: 320~350℃; Welding time: ≤10 seconds per pin. Do not stay too long in the same place to avoid PCB or pin damage. Main board design must include electronic switch to prevent leakage current.
  • Mechanical Protection: Do not crush, shake or jolt the module. The panel is glass-based, so avoid mechanical impacts. Do not apply pressure to the display surface or bend FPC excessively.
  • Light Shielding: Shield the OLED driver from light in product design to prevent malfunction caused by light exposure.
  • Power Supply: Install overcurrent protection (0.5A fuse recommended) on VDD power circuit. Do not exceed absolute maximum ratings to prevent permanent damage.

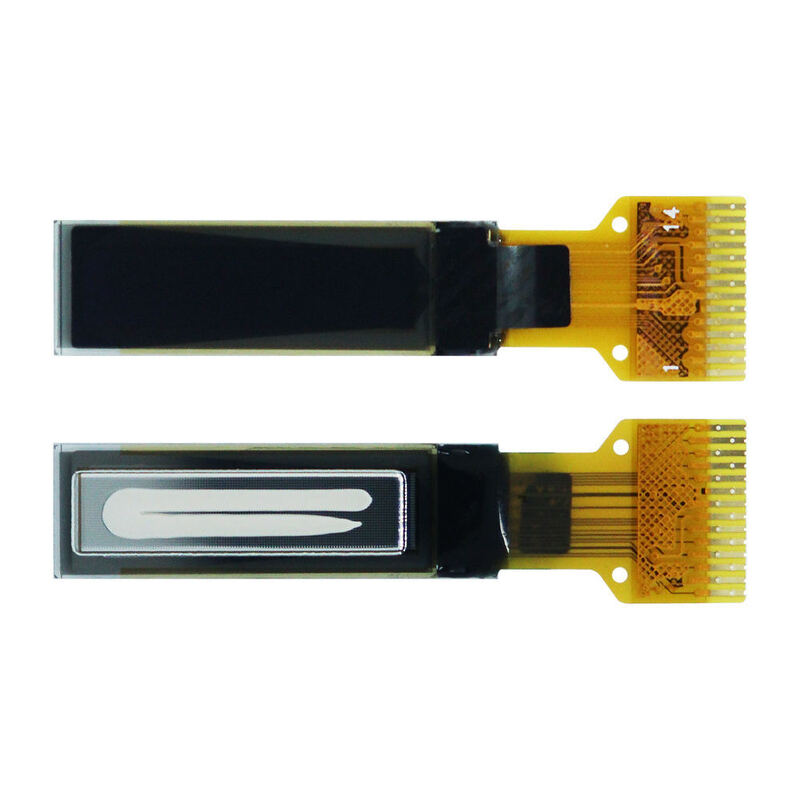

Product Images
0.63-Inch OLED Display Module with 120x28 Resolution and I2C Interface 0 0.63-Inch OLED Display Module with 120x28 Resolution and I2C Interface 1
Cooperation Partners
0.63-Inch OLED Display Module with 120x28 Resolution and I2C Interface 2
Shipment & Payment
0.63-Inch OLED Display Module with 120x28 Resolution and I2C Interface 3
Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

M
Meera Reddy
Andorra Feb 28.2026
Helpful (5)
Fast shipping and good communication from the seller!
W
William
Botswana Dec 29.2025
Helpful (2)
Works flawlessly, very satisfied!
M
Martinez Jao
United Kingdom Dec 24.2025
trustpilot.com
Helpful (36)
The brightness is good. Even under direct sunlight, the display content can still be seen
