0.96 Inch OLED Display Module with 128x64 Resolution and I2C/SPI Interface
  • name
  • name
  • name

0.96 Inch OLED Display Module with 128x64 Resolution and I2C/SPI Interface

MOQ: 1000 pieces
Price: $1.29~2.99/pieces
Standard Packaging: 8*8*4
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
GME64128-12
Highlight:

0.96 Inch OLED Display Module

,

128x64 Resolution OLED Module

,

I2C/SPI Interface OLED Panel

Product Description
0.96 Inch OLED Display Module with 128x64 Resolution and I2C/SPI Interface
This high-performance 0.96-inch OLED display module features a 128×64 dot matrix resolution and supports dual I2C/SPI interfaces for flexible integration. Equipped with SH1107 driver IC and COG (Chip on Glass) packaging, it offers an excellent aperture rate of 78% and clear visual performance. With a compact design, precise pixel parameters, and reliable structure, it's ideal for portable electronics, IoT devices, DIY projects, smart sensors, and small-scale display applications requiring high integration and space-saving solutions.

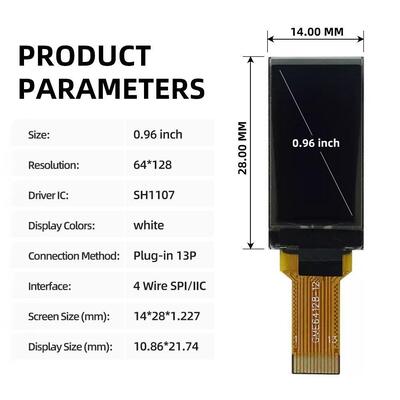

Key Specifications
Product 0.96 inch OLED Module Module Number GME64128-12
Resolution 128(H)×64(V) dots Display Color White
Active Area 10.86(W)×21.74(H) mm Interface Type I2C / SPI
Pixel Pitch 0.17(W)×0.17(H) mm Pixel Size 0.15(W)×0.15(H) mm
Driver IC SH1107 Aperture Rate 78%
IC Package Type COG (Chip on Glass) FPC P/N TBD
Technical Features
  • COG (Chip on Glass) packaging technology ensures compact size and high reliability, perfect for space-limited electronic devices
  • Dual I2C/SPI interface support provides flexible connection options, compatible with mainstream MCUs (Arduino, Raspberry Pi, etc.)
  • 78% high aperture rate maximizes light transmittance, delivering clear and vivid display effects for text and simple graphics
  • Precise pixel parameters (0.17mm pitch, 0.15mm size) ensure sharp image quality and uniform display performance
  • Sturdy structural design with cover glass and polarizer protection, enhancing durability and resistance to external impacts
  • Optimized FPC design for easy soldering and integration, reducing assembly difficulty and improving production efficiency
  • Compliant with standard display module design specifications, ensuring strong compatibility with existing system architectures
Pin Definition
PIN Symbol
1 NC
2 VPP
3 VCOMH
4 VDD
5 IM1
6 IREF
7 CS
8 RES
9 DC
10 D0
11 D1
12 VSS
13 NC
Application Scenarios
  • Portable electronic devices (handheld meters, mini data loggers, portable detectors)
  • IoT terminals and smart sensors (environmental monitors, wireless controllers, sensor nodes)
  • DIY electronics and hobby projects (Arduino/Raspberry Pi compatible displays, maker projects)
  • Small-scale consumer electronics (smart home remote controls, mini POS machines, wearable accessories)
  • Industrial control auxiliary displays (compact PLC panels, sensor data indicators)
  • Medical portable equipment (small diagnostic devices, health monitors)
  • Automotive auxiliary displays (in-vehicle small function displays, control panels)
Customization Options
FPC Design
Flexible adjustment of FPC length and pin layout to match specific system integration requirements
Interface Configuration
Optimized I2C/SPI interface parameters for compatibility with special MCUs or processors
Polarizer Customization
Optional polarizer specifications based on viewing angle and contrast requirements
Packaging Solution
Custom anti-static packaging, vacuum packaging with desiccant for long-term storage and transportation
Quality Inspection
Enhanced quality control and testing processes for bulk orders (aging test, performance calibration)
Handling Notes
  • Electrostatic Protection: Use anti-static bracelets and grounded tools during handling and assembly. Avoid touching FPC pins, IC chips, or display surfaces directly with bare hands to prevent electrostatic damage.
  • Cleaning Instructions: The polarizer and cover glass surfaces are scratch-sensitive. Clean gently with lint-free cloth or specialized cleaning tape. Do not use corrosive solvents (alcohol, ketones) as they may damage the display layer.
  • Storage Conditions: Store in sealed anti-static bags with desiccant at 0℃~30℃ and relative humidity ≤60%. Avoid direct sunlight, high temperature/humidity, or extreme cold environments. Reseal immediately after partial use.
  • Assembly Precautions: Do not apply excessive pressure to the glass panel or bend the FPC forcibly (bending radius ≥5mm). Ensure correct pin soldering (soldering temperature ≤260℃, soldering time ≤3 seconds) to avoid damaging the FPC or IC.
  • Operation Sequence: Follow the correct power-on/power-off sequence (VDD first, then signal pins; power off in reverse order) to protect the driver IC and extend module service life. Avoid long-term fixed-pattern display to prevent image retention.

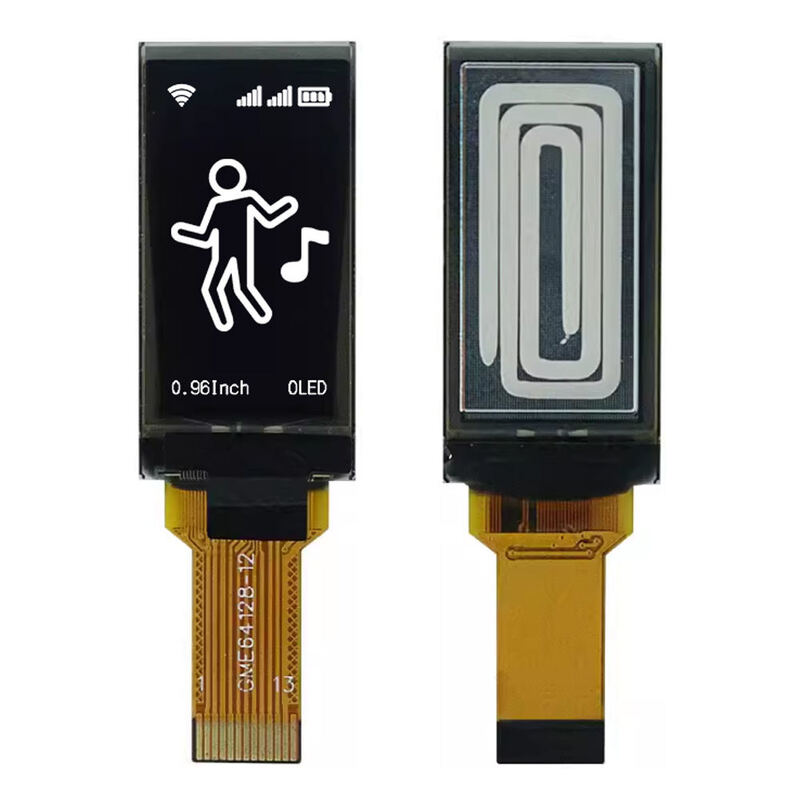

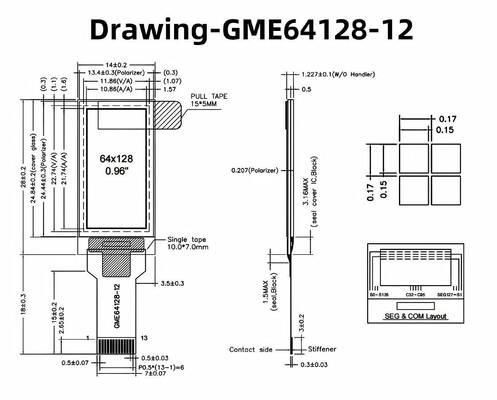

Product Images
0.96 Inch OLED Display Module with 128x64 Resolution and I2C/SPI Interface 0
0.96 Inch OLED Display Module with 128x64 Resolution and I2C/SPI Interface 1
0.96 Inch OLED Display Module with 128x64 Resolution and I2C/SPI Interface 2
0.96 Inch OLED Display Module with 128x64 Resolution and I2C/SPI Interface 3
0.96 Inch OLED Display Module with 128x64 Resolution and I2C/SPI Interface 4
