1.3" OLED Display Module with 128x64 Resolution and 16-Pin I2C/SPI Interface

MOQ: 1000 pieces
Price: $1.88~2.99/pieces
Standard Packaging: 6*6*4
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
E130XC-W-C16-84-V1
Highlight:

1.3 Inch OLED Display Module

,

128x64 Resolution OLED Panel

,

16-Pin I2C/SPI Interface OLED Screen

Product Description

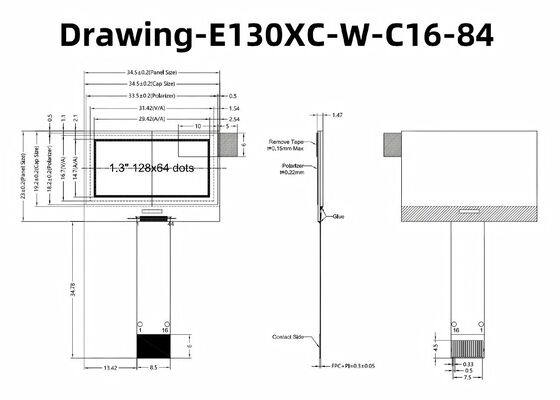

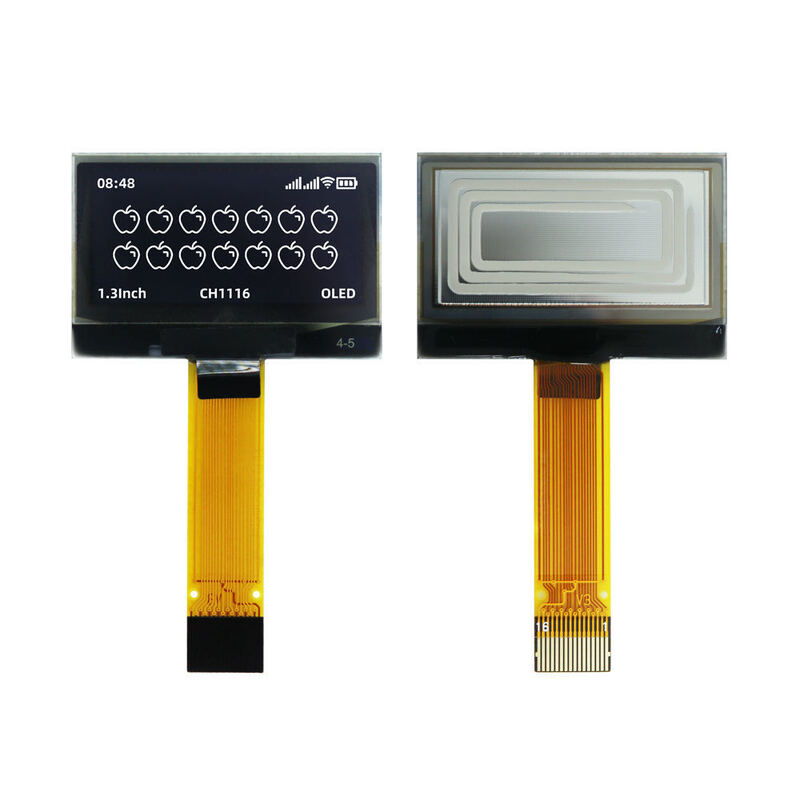

1.3" OLED Display Module with 128x64 Resolution and 16-Pin I2C/SPI Interface
This high-performance 1.3-inch OLED display module offers versatile interface compatibility (I2C/SPI) for seamless integration with mainstream MCUs. Featuring a compact design, reliable structural performance, and 16-pin configuration with dedicated power, control, and data pins, it delivers clear visual output and stable operation. With excellent adaptability to various electronic systems, it's ideal for portable devices, IoT terminals, smart sensors, DIY projects, and small-scale display applications requiring space-saving and high-reliability solutions.

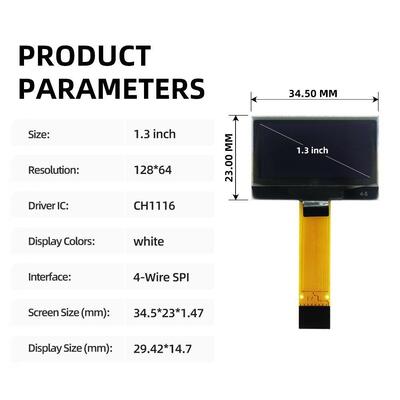

Product Specifications
Display Type 1.3 inch OLED
Module Number E130XC-W-C16-84-V1
Resolution 128×64
Color White
Drive IC CH1116
RoHS YES
Version V1
Total Pins 16 Pins
Interface 4-wire SPI
Unspecified Tolerance ±0.1
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
Technical Features
  • Optimized 16-pin design with clear functional division for stable signal transmission
  • Dual I2C/SPI interface support, compatible with Arduino, Raspberry Pi, and other mainstream microcontrollers
  • Compact 1.3-inch form factor, perfect for space-limited applications
  • Dedicated power supply pins ensure stable voltage input and reliable operation
  • Integrated reset, chip select, and data/command control pins for flexible programming
  • Reference pins optimize display performance and ensure consistent image quality
  • Double VSS ground pins enhance anti-interference ability
  • Compliant with standard electronic module design specifications
Pin Definition
PIN Symbol Description
1 C1N Negative Terminal of Flying Inverting Capacitor; Connect with C1P (PIN2) via capacitor
2 C1P Positive Terminal of Flying Inverting Capacitor; Connect with C1N (PIN1) via capacitor
3 C2P Positive Terminal of Flying Boost Capacitor; Connect with C2N (PIN4) via capacitor
4 C2N Negative Terminal of Flying Boost Capacitor; Connect with C2P (PIN3) via capacitor
5 VBAT Battery Power Supply Pin; For DC/DC converter circuit power input
6 VSS Logic Circuit Ground; Common voltage reference pin
7 VDD Logic Power Supply Pin; Provides power for core logic operation
8 CS Chip Select Pin; Active LOW to enable MCU communication
9 RES Reset Pin; Pull LOW for initialization, keep HIGH during normal operation
10 DC Data/Command Selection Pin; HIGH = Data mode, LOW = Command mode
11 SCL I2C Bus Clock Signal Pin; Synchronizes data transmission
12 SDA I2C Bus Data Signal Pin; Bidirectional data communication channel
13 IREF Current Reference Pin; For brightness adjustment, connect to VSS via resistor
14 VCOMH COM Signal High Level Voltage; Reference voltage for display driving
15 VCC Panel Driving Power Supply Pin; Provides voltage for OLED panel operation
16 VSS Secondary Ground Pin; Enhances grounding stability and anti-interference performance
Application Scenarios
  • Portable electronic devices (handheld meters, mini data loggers, portable detectors)
  • IoT terminals and smart sensors (environmental monitors, wireless controllers, sensor nodes)
  • Wearable devices (smart bracelets, small fitness trackers, portable health monitors)
  • DIY electronics and maker projects (Arduino/Raspberry Pi compatible displays)
  • Smart home control panels (miniature remote controls, small function displays)
  • Industrial auxiliary displays (compact sensor indicators, small-scale control panels)
  • Medical portable equipment (small diagnostic devices, personal health monitors)
1.3" OLED Display Module with 128x64 Resolution and 16-Pin I2C/SPI Interface 0
Customization Options
  • Pin Layout Customization: Flexible adjustment of pin order and functional assignment
  • Interface Optimization: Dedicated I2C/SPI parameter configuration
  • Packaging Solution: Custom anti-static packaging with desiccant
  • Technical Support: Customized initialization code, driver libraries, and integration guides
  • Quality Inspection: Enhanced quality control and testing processes for bulk orders
1.3" OLED Display Module with 128x64 Resolution and 16-Pin I2C/SPI Interface 1
Handling Notes
  1. Electrostatic Protection: Use anti-static bracelets and grounded tools. Work in 50%-60% relative humidity. Avoid touching pins, IC chips, or display surfaces directly.
  2. Soldering Requirements: Temperature should not exceed 260℃, soldering time 3-4 seconds per pin. Avoid repeated soldering.
  3. Capacitor Connection: Ensure correct connection of flying capacitors for DC/DC converter operation.
  4. Storage Conditions: Store in sealed anti-static bags with desiccant at 0℃~30℃ and relative humidity ≤60%.
  5. Operation Precautions: Follow correct power-on/power-off sequence. Avoid long-term fixed-pattern display to prevent image retention.
Product Applications
1.3" OLED Display Module with 128x64 Resolution and 16-Pin I2C/SPI Interface 2
Production Process
1.3" OLED Display Module with 128x64 Resolution and 16-Pin I2C/SPI Interface 3
Shipment & Payment
1.3" OLED Display Module with 128x64 Resolution and 16-Pin I2C/SPI Interface 4
