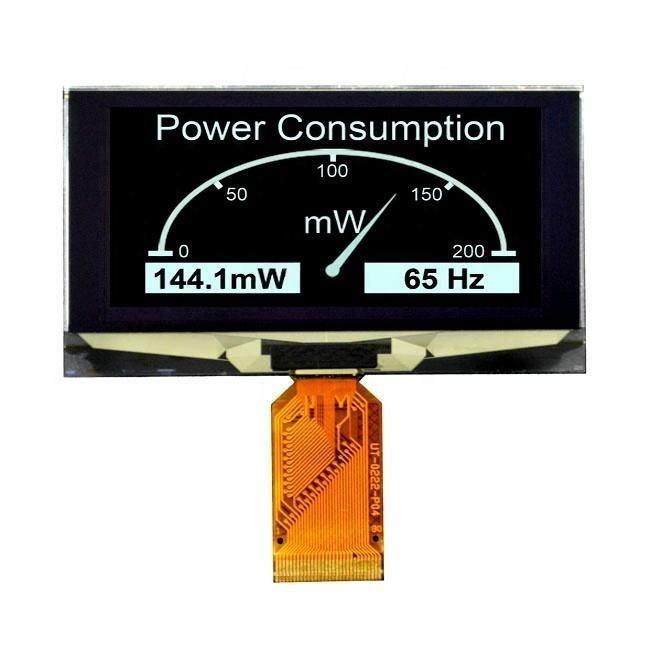

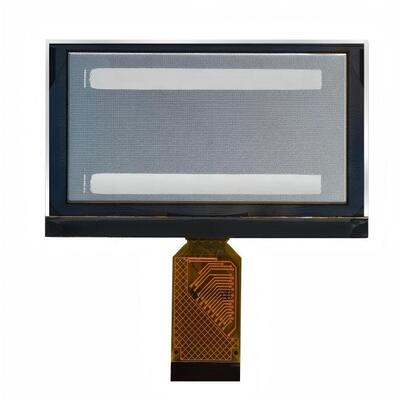

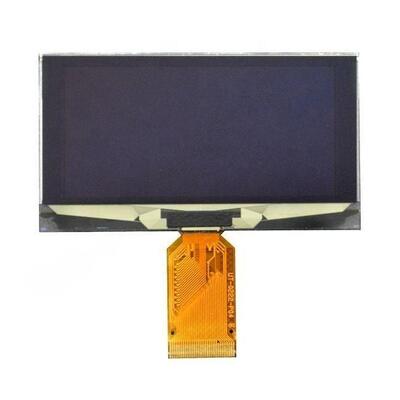

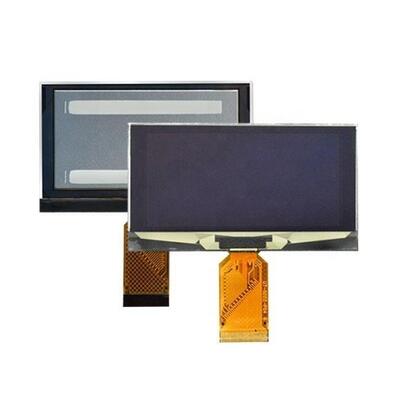

2.7 inch 128x64 Pixel OELD Module Multi Interface Low Power Long Lifespan

2.7 inch 128x64 Pixel OELD Module Multi Interface Low Power Long Lifespan

MOQ: 1000 pieces
Price: $16.99~18.99/pieces
Standard Packaging: 6*6*4
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
GME12864-110
Highlight:

2.7 Inch OLED Display Module

,

128x64 Pixel OLED Module

,

Multi Interface OLED Panel

Product Description
2.7 inch 128x64 Pixel OELD Module Multi Interface Low Power Long Lifespan
This high-performance 2.7-inch OLED display module features 128×64 resolution and multi-interface support (8-bit 68XX/80XX Parallel, 3-Wire/4-Wire SPI). Equipped with SSD1322 driver IC and COG packaging, it delivers 60-80 Cd/m² brightness, 10,000:1 high contrast, and free viewing angles. With wide temperature adaptability (-40℃ to 70℃) and long service life (up to 80,000 hours), it's ideal for industrial controls, portable instruments, IoT devices, and embedded systems.
Product Specifications
Display Type 2.7 inch OLED (Monochrome White)
Module Number GME12864-110
Resolution 128(H)×64(V) dots
Drive IC SSD1322
FPC Number UT-0222-P04
Interface 8-bit 68XX/80XX Parallel, 3-Wire SPI, 4-Wire SPI
Panel Size 73.00(W)×41.86(H)×2.00(T) mm
Active Area 61.41(W)×30.69(H) mm
Pixel Pitch 0.48(W)×0.48(H) mm
Pixel Size 0.45(W)×0.45(H) mm
Weight 12.17 g
Brightness Min. 60 Cd/m², Typ. 80 Cd/m²
Contrast Ratio >10,000:1 (Dark Room)
Operating Temperature -40℃ to 70℃
Storage Temperature -40℃ to 85℃
Service Life 30,000 hrs (@80 Cd/m²), 50,000 hrs (@60 Cd/m²), 80,000 hrs (@40 Cd/m²)
Logic Supply Voltage (VDD) 2.4V to 2.6V (Typ. 2.5V)
Analog Supply Voltage (VCI) 2.8V to 3.5V (Typ. 2.8V)
Panel Driving Voltage (VCC) 14.5V to 15.5V (Typ. 15.0V)
Technical Features
  • Multi-interface support (Parallel/SPI) for flexible integration with mainstream MCUs and processors
  • COG packaging ensures compact structure, high reliability, and stable performance in harsh environments
  • 10,000:1 ultra-high contrast ratio and free viewing angles deliver clear, vivid visuals from any direction
  • Wide operating temperature range (-40℃ to 70℃) adapts to industrial, outdoor, and extreme environment applications
  • Low power consumption: Typ. 180µA (VCI), 25.5mA (VCC, 50% display area on), 1-10µA sleep mode current
  • Long service life (up to 80,000 hours) reduces replacement frequency and maintenance costs
  • Built-in ESD protection and noise suppression for stable operation in complex electromagnetic environments
  • Support for brightness adjustment via IREF pin, customizable to different application requirements
Pin Definition
PIN Symbol Description
1 N.C. (GND) Reserved Supporting Pin; Must be connected to external ground for ESD protection
2 VSS Ground of OLED System. This is a ground pin. It also acts as a reference for the logic pins, the OLED driving voltages, and the analog circuits. It must be connected to external ground.
3,29 VCC Power Supply for OLED Panel. These are the most positive voltage supply pin of the chip. They must be connected to external source.
4 VCOMH Voltage Output High Level for COM Signal. This pin is the input pin for the voltage output high level for COM signals. A capacitor should be connected between this pin and VSS.
5,28 VLSS Ground of Analog System. These are the analog ground pins. They should be connected to VSS externally.
6-13 D7-D0 8-bit Bi-directional Data Bus; In serial mode: D1=SDIN, D0=SCLK; Unused pins tie to VSS (except D2)
14 E/RD# MCU Interface Input: 68XX mode (Enable), 80XX mode (Read), Serial mode (Connect to VSS)
15 R/W# MCU Interface Input: 68XX mode (Read/Write), 80XX mode (Write), Serial mode (Connect to VSS)
16 BS0 Interface Selection Pin; Works with BS1 to configure Parallel/SPI mode
17 BS1 Interface Selection Pin; Works with BS0 to configure Parallel/SPI mode
18 D/C# Data/Command Control Pin; HIGH=Data, LOW=Command; 3-Wire SPI mode (Connect to VSS)
19 CS# Chip Select Pin; Active LOW to enable MCU communication
20 RES# Reset Pin; Pull LOW for initialization, keep HIGH during normal operation
21 FR Frame Frequency Triggering Signal; Must be left open
22 IREF Current Reference for Brightness Adjustment; Connect to VSS via resistor (Max 10µA)
23 N.C. Reserved Pin; No connection
24 VDDIO Interface Logic Power Supply; 1.65V to VCI, matches MCU interface voltage
25 VDD Core Logic Power Supply; Connect capacitor to VSS
26 VCI Low Voltage Power Supply; ≥VDD and VDDIO
27 VSL Segment Voltage Reference Pin; Connect capacitor to VSS; External VSL (resistor+diode to ground)
28 VLSS Analog System Ground Pin; Connect to external ground
29 VCC Panel Driving Power Supply Pin; Most positive voltage supply
30 N.C. (GND) Reserved Supporting Pin; Must be connected to external ground for ESD protection
Application Scenarios
  • Industrial control systems (PLC panels, sensor data monitors, industrial controllers)
  • Portable electronic instruments (handheld meters, data loggers, portable detectors)
  • IoT terminals and smart sensors (environmental monitors, wireless control nodes)
  • Embedded systems and microcontroller projects (compatible with mainstream MCUs)
  • Consumer electronics (small POS machines, smart home control panels)
  • Automotive auxiliary displays (in-vehicle monitoring screens, control panels)
  • Medical portable equipment (small diagnostic devices, health monitors)
  • Industrial auxiliary displays (compact sensor indicators, small-scale control systems)
Customization Options
Interface Configuration Dedicated parallel/SPI interface parameter optimization for specific MCUs
Brightness Tuning Customizable brightness levels (60~100 Cd/m²) based on application requirements
FPC Customization Flexible FPC length and pin layout adjustment for system integration
Polarizer Selection Different polarizer types for special viewing angle or contrast needs
Packaging Solution Custom anti-static vacuum packaging with desiccant for long-term storage
Quality Inspection Enhanced aging tests and performance calibration for bulk orders
Technical Support Customized initialization code, driver libraries, and integration guides
Handling Notes
  • Electrostatic Protection: Use anti-static bracelets and grounded tools. Work in 50%-60% relative humidity. Avoid touching pins, IC chips, or FPC patterns directly.
  • Cleaning Instructions: Clean polarizer surface with Scotch Mending Tape No. 810 or equivalent. Do not use water, ethyl alcohol, ketone, or aromatic solvents.
  • Soldering Requirements: Soldering temperature ≤260℃, soldering time 3-4 seconds per pin, no more than 3 repetitions. Remove residual flux after soldering.
  • Storage Conditions: Store in anti-static vacuum bags with desiccant at 0℃~30℃, humidity ≤60%. Avoid direct sunlight and extreme temperatures. Reseal after partial use.
  • Power Sequence: Power-on: VCI/VDDIO → Initialization → VCC → Display ON. Power-off: Display OFF → VCC → VCI/VDDIO. Avoid fixed-pattern display for over 30 seconds.
  • Mechanical Protection: Do not apply excessive pressure to the glass panel or bend FPC forcibly. Shield the driver IC from light in product design.
  • Overcurrent Protection: Install 0.5A fuse in the VDD power circuit to prevent damage from excessive current.
Custom Order Support (ODM)
2.7 inch 128x64 Pixel OELD Module Multi Interface Low Power Long Lifespan 0
Product Process
2.7 inch 128x64 Pixel OELD Module Multi Interface Low Power Long Lifespan 1
Shipment & Payment
2.7 inch 128x64 Pixel OELD Module Multi Interface Low Power Long Lifespan 2
