HR215WU1-120 21.5 Inch TFT LCD Panel with 1920x1080 FHD Resolution and LVDS Interface Display Module
  • name
  • name
  • name

HR215WU1-120 21.5 Inch TFT LCD Panel with 1920x1080 FHD Resolution and LVDS Interface Display Module

MOQ: 100 pcs
Price: $60.99– 79.99 / Piece
Payment Method: ,T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
BOE
Certification
CE，RoHS
Model Number
HR215WU1-120
Highlight:

21.5 Inch TFT LCD Panel

,

1920x1080 FHD LCD Display Module

,

LVDS Interface Display Panel

Product Description
HR215WU1-120 21.5 Inch TFT LCD Panel
1920x1080 FHD LVDS Display Module
Product Overview
The HR215WU1-120 is a 21.5-inch TFT LCD display panel featuring 1920×1080 Full HD resolution and a standard LVDS interface. Designed for professional and industrial display integration, it delivers stable image quality with LED backlight technology. This product is supplied as a panel-only solution and is suitable for OEM projects, custom display systems, and monitor integration with an external controller board.
Key Features
  • 21.5-inch TFT LCD display panel suitable for professional and industrial applications
  • Full HD resolution 1920×1080 delivers clear and detailed image performance
  • Standard LVDS signal interface ensures stable and reliable data transmission
  • LED backlight technology provides uniform brightness with low power consumption
  • Wide viewing angle design maintains image quality from different directions
  • Stable and reliable operation designed for long-term continuous use
  • Panel-only configuration requires an external controller board for operation
  • OEM and bulk supply supported for customized projects and volume orders

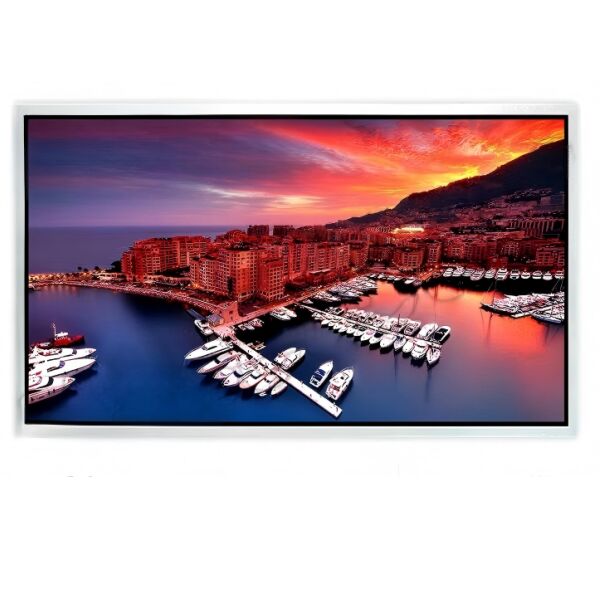

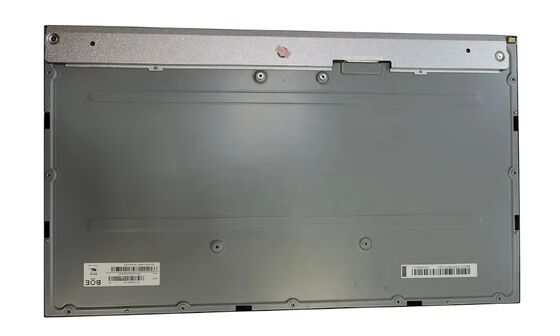

Product Appearance & Display Demonstration
HR215WU1-120 21.5 Inch TFT LCD Panel with 1920x1080 FHD Resolution and LVDS Interface Display Module 0 HR215WU1-120 21.5 Inch TFT LCD Panel with 1920x1080 FHD Resolution and LVDS Interface Display Module 1
Technical Specifications
Display Size 21.5 Inch
Resolution 1920 × 1080
Display Area 476.64(H)×268.11(V) mm
Outline Size 495.6(H)×292.2(V)×11.3(D) mm
Brightness 250 cd/m² (Typ.)
Display Colors 16.7M 72% NTSC
Signal Interface LVDS (2 ch, 8-bit), 30 pins Connector
Environment Operating Temp.: 0-50°C; Storage Temp.: -20-60°C
Application Scenarios
  • Computer monitor integration and replacement display solutions
  • Industrial and commercial display systems for long-term operation
  • Embedded display projects with external controller boards
  • Digital signage and information display terminals
  • OEM display solutions for customized equipment
  • Control panels and professional display applications
Company Profile
HR215WU1-120 21.5 Inch TFT LCD Panel with 1920x1080 FHD Resolution and LVDS Interface Display Module 2 HR215WU1-120 21.5 Inch TFT LCD Panel with 1920x1080 FHD Resolution and LVDS Interface Display Module 3 HR215WU1-120 21.5 Inch TFT LCD Panel with 1920x1080 FHD Resolution and LVDS Interface Display Module 4
Extensive Inventory - Over 1,000,000 self-owned stock items to meet diverse product requirements. Comprehensive selection of Raspberry Pi boards, LCD monitors, touchscreens, cases, cables, and accessories, plus Nvidia, micro:bit, Arduino, BBB and other leading brands.
Competitive Pricing - Significant price advantages to reduce purchasing costs and save valuable time. We wholesale and distribute new, original, well-known brand electronic components worldwide.
Quality Assurance - Equipped with internationally advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality.
Expert Team - Elite professionals with over 20 years of industry experience and deep understanding of international market trends.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
