11.6 Inch TFT LCD Panel with 1366x768 HD Resolution and eDP 1.2 Interface for Notebook Display
  • name
  • name
  • name

11.6 Inch TFT LCD Panel with 1366x768 HD Resolution and eDP 1.2 Interface for Notebook Display

MOQ: 100 pcs
Price: $47.99– 66.99 / Piece
Payment Method: ,T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
BOE
Certification
CE，RoHS
Model Number
NT116WHM-N21
Highlight:

11.6 Inch TFT LCD Panel

,

1366x768 HD Notebook Display

,

eDP 1.2 Interface Laptop LCD Screen

Product Description
NT116WHM-N21 11.6 Inch TFT LCD Panel
11.6-inch HD TFT LCD display panel featuring 1366×768 resolution and eDP 1.2 interface, designed for notebook and embedded display applications.
Product Overview
The NT116WHM-N21 is an 11.6-inch TFT LCD display panel featuring HD resolution and eDP 1.2 interface. Designed for notebook and embedded display applications, it offers low power consumption, stable performance, and integrated LED backlight driving, making it suitable for OEM integration and replacement projects.
Key Features
  • 11.6-inch TFT LCD panel designed for notebook display applications
  • HD resolution 1366×768 delivers clear and stable image output
  • eDP 1.2 interface ensures reliable high-speed signal transmission
  • Low power consumption suitable for portable devices
  • Integrated LED backlight driver simplifies system design
  • Slim and lightweight structure for compact product integration
  • Normally white display mode with stable visual performance
  • Ideal for OEM projects and professional display replacement

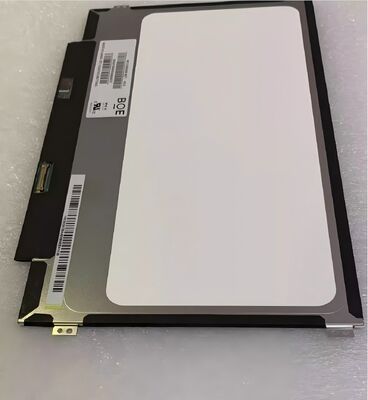

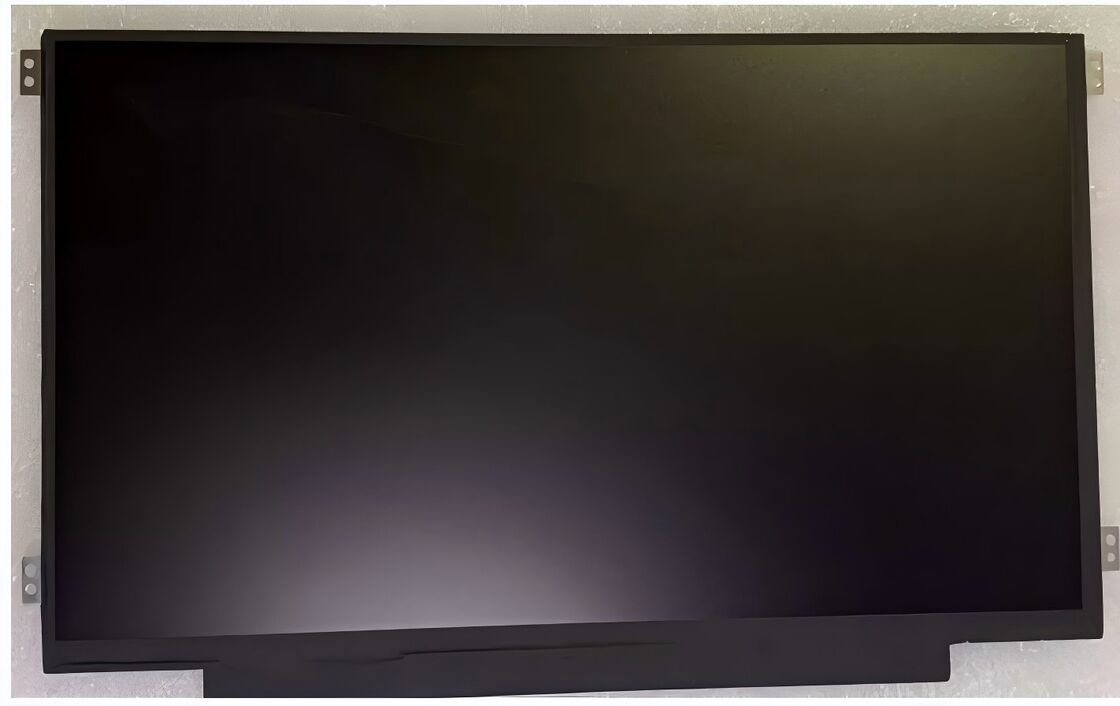

Product Display & Specifications
11.6 Inch TFT LCD Panel with 1366x768 HD Resolution and eDP 1.2 Interface for Notebook Display 0 11.6 Inch TFT LCD Panel with 1366x768 HD Resolution and eDP 1.2 Interface for Notebook Display 1
Technical Specifications
Display Size 11.6 Inch
Resolution 1366 × 768 (HD)
Display Area 256.125 × 144.0 mm
Outline Size 262.2 × 155.2 × 3.2 mm
Brightness 220 cd/m² (Typ.)
Display Colors 262K Colors
Signal Interface eDP (30 Pins)
Environment Operating Temperature: 0 ~ +50 °C; Storage Temperature: -20 ~ +60 °C
Application Scenarios
  • Notebook computer display replacement and integration
  • Portable devices requiring low-power LCD panels
  • Embedded systems with eDP interface support
  • OEM laptop and custom computing equipment
  • Industrial portable terminals and testing devices
  • Educational and commercial display solutions
Company Profile
11.6 Inch TFT LCD Panel with 1366x768 HD Resolution and eDP 1.2 Interface for Notebook Display 2 11.6 Inch TFT LCD Panel with 1366x768 HD Resolution and eDP 1.2 Interface for Notebook Display 3 11.6 Inch TFT LCD Panel with 1366x768 HD Resolution and eDP 1.2 Interface for Notebook Display 4
Extensive Inventory - Over 1,000,000 self-owned stock items to meet diverse product requirements. Comprehensive selection of Raspberry Pi boards, LCD monitors, touchscreens, cases, cables, and accessories, plus Nvidia, micro:bit, Arduino, BBB and other leading brands.

Competitive Pricing - Significant price advantages to reduce purchasing costs and save valuable time. We wholesale and distribute new, original, well-known brand electronic components worldwide.

Quality Assurance - Equipped with internationally advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality.

Expert Team - Elite professionals with over 20 years of industry experience and deep understanding of international market trends.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
