BOE 11.6 Inch HD Laptop LCD Screen with 1366x768 Resolution and 30-Pin eDP Interface
  • name
  • name
  • name

BOE 11.6 Inch HD Laptop LCD Screen with 1366x768 Resolution and 30-Pin eDP Interface

MOQ: 100 pcs
Price: $47.99– 66.99 / Piece
Payment Method: ,T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
BOE
Certification
CE，RoHS
Model Number
NT116WHM-N42
Highlight:

11.6 Inch Laptop LCD Screen

,

1366x768 Resolution LCD Module

,

30-Pin eDP Interface TFT-LCD Module

Product Description
BOE 11.6" HD Laptop LCD Screen NT116WHM-N42 V8.0
1366x768 eDP 30-pins display module engineered for ultra-slim notebooks and portable devices.
Product Overview
The NT116WHM-N42 V8.0 is a premium 11.6-inch TFT-LCD module from BOE, a global leader in display technology. This HD panel delivers exceptional performance and reliability, making it the ideal replacement or OEM component for modern ultra-slim notebooks and portable devices.
Key Features
  • Original BOE Quality: 100% genuine NT116WHM-N42 V8.0 grade A panel ensuring consistent performance and industry-leading reliability
  • Ultra-Slim & Lightweight: Maximum thickness of just 3.0mm and weight under 210g, optimized for modern ultra-portable notebooks
  • HD Visual Clarity: 1366 x 768 resolution with 500:1 contrast ratio for crisp images and vibrant display quality
  • Anti-Glare Technology: Matte surface treatment reduces reflections and eye strain for comfortable viewing in various lighting conditions
  • High-Speed eDP Interface: 30-pin eDP 1.2 interface for high-speed data transmission and easy compatibility with mainstream laptop motherboards
  • Energy Efficient: Low power consumption design (2.4W Typ.) helps extend battery life of mobile devices
  • Wide Application Compatibility: Designed for 11.6-inch Notebook PCs, Chromebooks, and industrial handheld display terminals
  • Certified Eco-Friendly: Fully compliant with RoHS and Halogen-Free standards, meeting strict environmental requirements

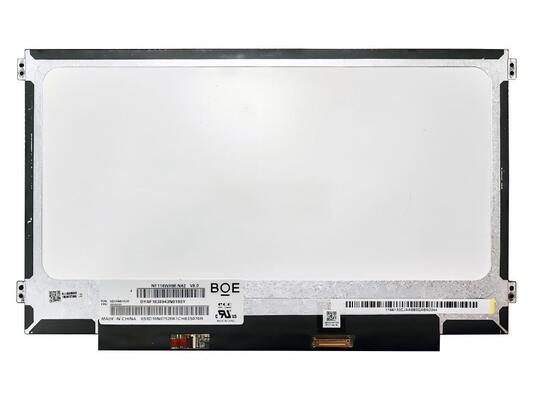

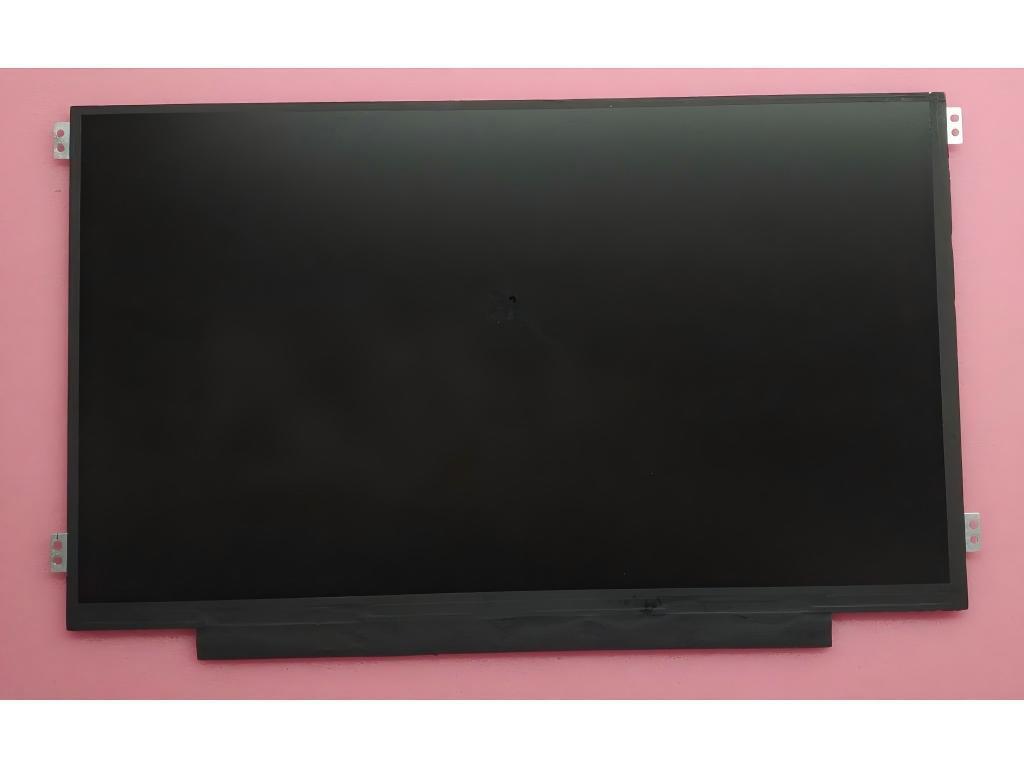

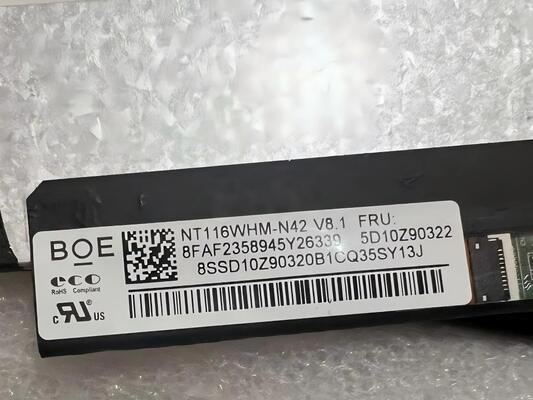

Product Display
BOE 11.6 Inch HD Laptop LCD Screen with 1366x768 Resolution and 30-Pin eDP Interface 0 BOE 11.6 Inch HD Laptop LCD Screen with 1366x768 Resolution and 30-Pin eDP Interface 1
Technical Specifications
Display Size 11.6 Inch
Resolution 1366 × 768 (HD)
Display Area 256.125 × 144.0 mm
Outline Size 268.0(H) × 168.0(V) × 3.0(Max) mm
Brightness 250 cd/m² (Typ.)
Display Colors 262K Colors
Signal Interface eDP (30 Pins)
Operating Temperature 0 ~ +50 °C
Storage Temperature -20 ~ +60 °C
Application Scenarios
  • Laptops & Chromebooks: Perfect for 11.6" ultra-slim notebooks and educational student laptops
  • Industrial Tablets: Ideal for ruggedized handheld devices in logistics and field service
  • Medical Monitors: Suitable for portable medical diagnostic tools and bedside display units
  • Smart Retail POS: Excellent for customer-facing screens in compact POS and payment systems
  • Human-Machine Interface (HMI): Used in smart home control panels and industrial automation
  • Repair & Replacement: Standard choice for 11.6-inch screen repair markets globally
Company Profile
BOE 11.6 Inch HD Laptop LCD Screen with 1366x768 Resolution and 30-Pin eDP Interface 2 BOE 11.6 Inch HD Laptop LCD Screen with 1366x768 Resolution and 30-Pin eDP Interface 3 BOE 11.6 Inch HD Laptop LCD Screen with 1366x768 Resolution and 30-Pin eDP Interface 4
Extensive Inventory
Over 1,000,000 self-owned stock items including Raspberry Pi boards, LCD monitors, touchscreens, cases, cables, and accessories from leading brands like Nvidia, micro:bit, Arduino, and BBB.
Competitive Pricing
Significant price advantages to reduce purchasing costs and save valuable time. We wholesale and distribute new, original, well-known brand electronic components worldwide.
Quality Assurance
Equipped with internationally advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality.
Expert Team
Elite professionals with over 20 years of industry experience and deep understanding of international market trends.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
