BOE 12.1 inch EV121WXM-N10 Industrial LCD Screen with 1280x800 WXGA Resolution and 400 Nits Brightness
  • name
  • name

BOE 12.1 inch EV121WXM-N10 Industrial LCD Screen with 1280x800 WXGA Resolution and 400 Nits Brightness

MOQ: 100 pcs
Price: $55.99– 72.99 / Piece
Payment Method: ,T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
BOE
Certification
CE，RoHS
Model Number
EV121WXM-N10
Highlight:

12.1 inch Industrial LCD Screen

,

1280x800 WXGA LCD Module

,

400 nits TFT-LCD Module

Product Description
BOE 12.1" EV121WXM-N10 Industrial LCD Screen
Original BOE 12.1" EV121WXM-N10 Industrial LCD Module with 1200:1 Ultra-High Contrast
Product Overview
The BOE EV121WXM-N10 is a high-performance 12.1-inch industrial TFT-LCD module designed for professional display applications. It features a WXGA (1280x800) resolution and a 16:10 aspect ratio, delivering sharp and clear visuals.
Built with ADS (Advanced Super Dimension Switch) technology, this panel offers ultra-wide viewing angles and an exceptional 1200:1 contrast ratio, ensuring superior image depth. With a stable 400 nits brightness and a wide operating temperature range from -20 °C to +70°C, the EV121WXM-N10 is engineered for reliability in diverse industrial, medical, and commercial environments. Its slim 8.7mm profile and standard 30-pin LVDS interface make it an ideal solution for modern, space-efficient equipment.
Key Features
  • Original BOE Industrial Grade: 100% genuine EV121WXM-N10, designed for reliable 24/7 continuous operation in professional environments.
  • Superior 1200:1 Contrast Ratio: Delivers exceptional image depth and crystal-clear visual performance, far exceeding standard panels.
  • Optimal 400 nits Brightness: Provides stable and clear visibility for high-end industrial control and medical display applications.
  • ADS Wide Viewing Technology: Ensures consistent color and clarity from all angles (85°/85°/85°/85°) without distortion.
  • Ultra-Slim 8.7mm Design: Featuring a compact and lightweight profile (460g) for easy integration into modern, space-saving equipment.
  • Wide Operating Temperature: Engineered to perform reliably in harsh conditions from -20 °C to +70°C.
  • True 16.7M Color Depth: Real 8-bit color depth provides smooth gradients and professional-grade color reproduction.
  • Stable LVDS Interface: Standard 30-pin LVDS (1ch, 8-bit) ensures robust signal transmission and high compatibility.

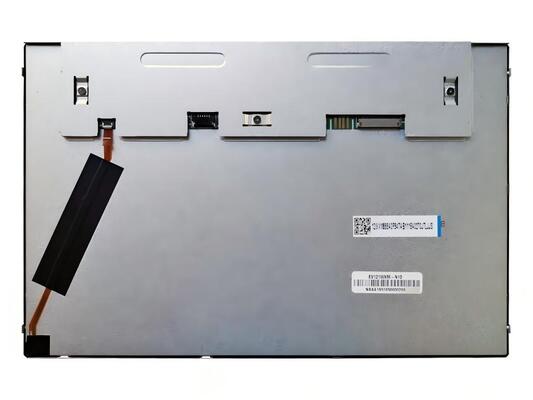

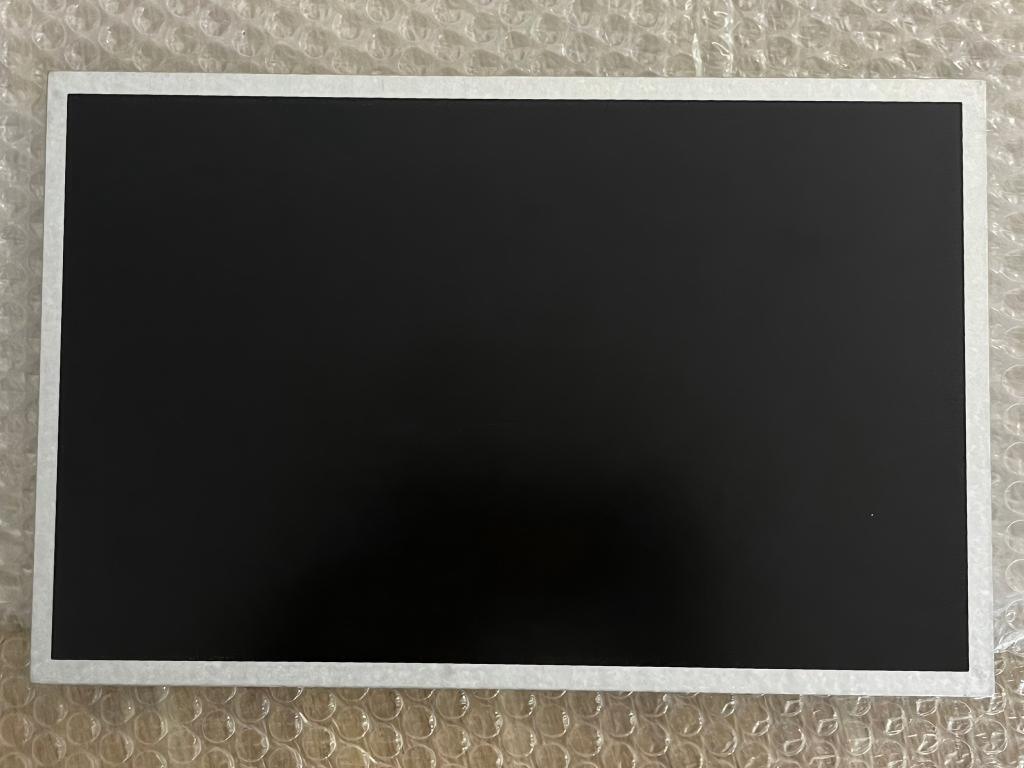

Product Display
BOE 12.1 inch EV121WXM-N10 Industrial LCD Screen with 1280x800 WXGA Resolution and 400 Nits Brightness 0 BOE 12.1 inch EV121WXM-N10 Industrial LCD Screen with 1280x800 WXGA Resolution and 400 Nits Brightness 1
Technical Specifications
Display Size12.1 inch
Resolution1280(RGB) × 800, WXGA
Display Area261.12(H) × 163.2(V) mm
Outline Size277.7 x 180.6 x 8.7 mm
Brightness400 cd/m²
Display Colors16.7M (8-bit)
Signal InterfaceLVDS (1 ch, 8-bit), 30 pins Connector
Operating Temperature-20 ~ +70 °C
Storage Temperature-30 ~ +80 °C
Application Scenarios
  • Industrial Control Systems: High-reliability display for HMI (Human-Machine Interface) and automated production line controllers.
  • Medical Diagnostic Equipment: Ideal for patient monitors, ultrasonic devices, and portable diagnostic imaging due to its 1200:1 high contrast.
  • Smart Retail & Kiosks: Perfect for premium self-service terminals, vending machines, and digital point-of-sale (POS) systems.
  • Marine & Outdoor Transportation: Ruggedized dashboard displays for maritime navigation and vehicle information systems with wide-viewing requirements.
  • Professional Security Monitoring: High-definition display for surveillance control rooms and security system management consoles.
  • Aviation & Defense Electronics: Compact and lightweight (8.7mm slim) display solution for cockpit information systems and cabin equipment.
Company Profile
BOE 12.1 inch EV121WXM-N10 Industrial LCD Screen with 1280x800 WXGA Resolution and 400 Nits Brightness 2 BOE 12.1 inch EV121WXM-N10 Industrial LCD Screen with 1280x800 WXGA Resolution and 400 Nits Brightness 3 BOE 12.1 inch EV121WXM-N10 Industrial LCD Screen with 1280x800 WXGA Resolution and 400 Nits Brightness 4
Extensive Inventory: Over 1,000,000 self-owned stock items including Raspberry Pi boards, LCD monitors, touchscreens, cases, cables, and accessories from leading brands like Nvidia, micro:bit, Arduino, and BBB.
Competitive Pricing: Significant price advantages to reduce purchasing costs and save valuable time. We wholesale and distribute new, original, well-known brand electronic components worldwide.
Quality Assurance: Equipped with internationally advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality.
Expert Team: Elite professionals with over 20 years of industry experience and deep understanding of international market trends.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
