BOE NV133FHM-N54 13.3 inch FHD 1920x1080 300 nits Laptop LCD Screen Display Panel
  • name
  • name
  • name

BOE NV133FHM-N54 13.3 inch FHD 1920x1080 300 nits Laptop LCD Screen Display Panel

MOQ: 100 pcs
Price: $29.99– 39.99 / Piece
Payment Method: ,T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
BOE
Certification
CE，RoHS
Model Number
NV133FHM-N54
Highlight:

13.3 inch Laptop LCD Screen

,

1920x1080 FHD Display Panel

,

300 nits LCD Module

Product Description
BOE 13.3" NV133FHM-N54 Laptop LCD Screen
FHD 1920x1080 300 nits eDP 30-Pin Display Panel
Product Overview
The BOE NV133FHM-N54 is a high-quality 13.3-inch TFT-LCD module featuring Full HD (1920x1080) resolution. Designed for premium slim notebooks, it boasts an incredibly thin profile of just 3.0mm. With 300 nits brightness and an 800:1 contrast ratio, it delivers vivid and sharp visuals. Utilizing BOE's ADS technology, it ensures wide viewing angles and consistent color performance, while the Anti-Glare surface treatment provides excellent visibility even in bright environments.
Key Features
  • Original BOE Quality: Genuine NV133FHM-N54 (PN: G64PY) for high-end laptop replacement
  • Full HD Visuals: 1920x1080 resolution for crisp and detailed image display
  • Ultra-Slim 3.0mm Design: Maximizes portability for thin-and-light ultrabook integration
  • ADS Viewing Technology: Offers ultra-wide 85/85/85/85 viewing angles without color shift
  • Steady 300 nits Brightness: Ensures clear and bright display for professional work environments
  • 800:1 High Contrast: Provides deep blacks and vibrant colors for dynamic visual experience
  • Anti-Glare Matte Finish: Reduces screen reflections and eye fatigue during long-term use
  • Efficient eDP Interface: Standard 30-pin eDP connection for low power consumption and high-speed transmission

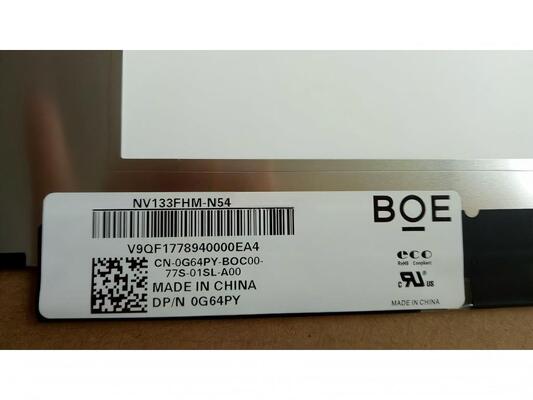

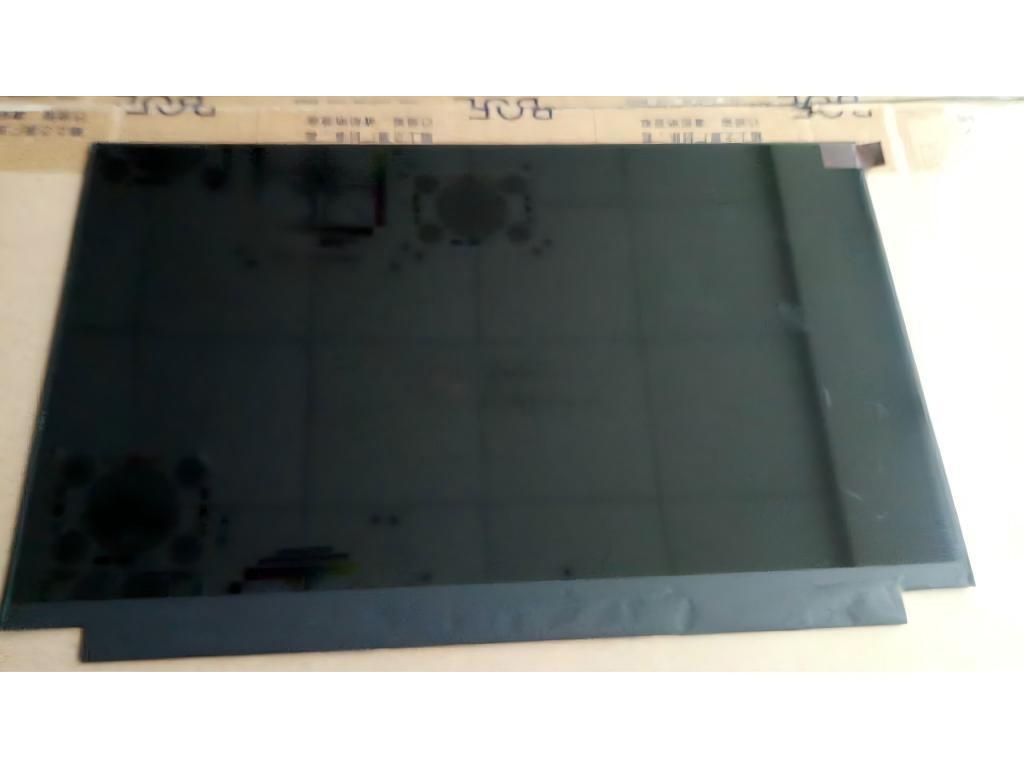

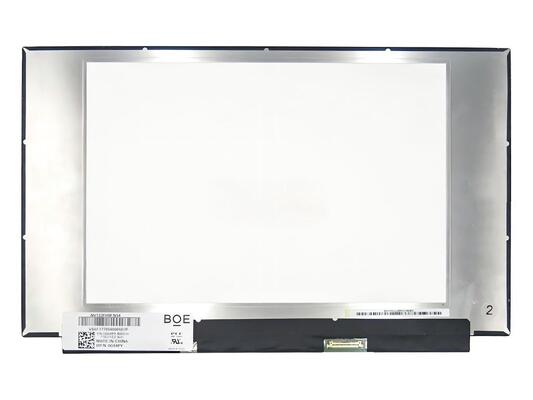

Product Display
BOE NV133FHM-N54 13.3 inch FHD 1920x1080 300 nits Laptop LCD Screen Display Panel 0 BOE NV133FHM-N54 13.3 inch FHD 1920x1080 300 nits Laptop LCD Screen Display Panel 1
Technical Specifications
Display Size13.3 inch
Resolution1920(RGB) × 1080
Display Area293.76(H) × 165.24(V) mm
Outline Size300.56 (H)max x 178.05 (V, W/O PCB)max
Brightness300 cd/m² (Typ.)
Display Colors262K
Signal InterfaceeDP 1.2 (2 lane), 30 pins Connector
Operating Temperature0 ~ +50 °C
Storage Temperature-20 ~ +60 °C
Application Scenarios
  • Ultra-thin Notebooks: Primary choice for repairing or upgrading 13.3-inch slim laptops
  • Portable Monitors: Excellent component for building lightweight Full HD portable displays
  • High-End Tablets: High-resolution screen for professional-grade 13.3" tablets
  • Medical Equipment: Reliable display for portable diagnostic and patient monitoring systems
  • Smart POS Terminals: Premium display for modern, thin-profile retail and banking systems
  • Aviation Infotainment: Compact and high-definition screen for in-flight entertainment or information displays
Company Profile
BOE NV133FHM-N54 13.3 inch FHD 1920x1080 300 nits Laptop LCD Screen Display Panel 2 BOE NV133FHM-N54 13.3 inch FHD 1920x1080 300 nits Laptop LCD Screen Display Panel 3 BOE NV133FHM-N54 13.3 inch FHD 1920x1080 300 nits Laptop LCD Screen Display Panel 4
Extensive Inventory: Over 1,000,000 self-owned stock items including Raspberry Pi boards, LCD monitors, touchscreens, cases, cables, and accessories from leading brands like Nvidia, micro:bit, Arduino, and BBB.
Competitive Pricing: Significant price advantages to reduce purchasing costs and save valuable time. We wholesale and distribute new, original, well-known brand electronic components worldwide.
Quality Assurance: Equipped with internationally advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality.
Expert Team: Elite professionals with over 20 years of industry experience and deep understanding of international market trends.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
