NV140FHM-N4U 14.0 Inch Full HD TFT LCD Panel with eDP 1.2 Interface for Laptop and OEM Applications
  • name
  • name

NV140FHM-N4U 14.0 Inch Full HD TFT LCD Panel with eDP 1.2 Interface for Laptop and OEM Applications

MOQ: 100 pcs
Price: $– 45.99 / 60.99 Piece
Payment Method: ,T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
BOE
Certification
CE，RoHS
Model Number
NV140FHM-N4U
Highlight:

14.0 Inch TFT LCD Panel

,

1920x1080 Full HD LCD Display Module

,

eDP 1.2 Interface Laptop LCD Screen

Product Description
NV140FHM-N4U 14.0 Inch FHD TFT LCD Panel
1920x1080 eDP 1.2 Display Module for Embedded and OEM Applications
Product Overview
The NV140FHM-N4U is a 14.0-inch TFT LCD panel featuring 1920 ×1080 Full HD resolution and an eDP 1.2 interface. Designed for embedded systems, OEM projects, and industrial applications, this display module provides excellent image quality with LED backlight technology. With its low power consumption and stable performance, it is ideal for use in custom display systems and professional applications requiring reliable, high-performance displays.
Key Features
  • 14.0-Inch TFT LCD Display Panel - Ideal size for embedded systems and OEM applications
  • Full HD Resolution 1920 ×1080 - Delivers crisp, clear images with vibrant color reproduction
  • eDP 1.2 Interface - Supports high-speed data transfer for modern display systems
  • LED Backlight Technology - Ensures energy-efficient performance with consistent brightness
  • Wide Viewing Angle - Offers excellent visual clarity from multiple angles
  • Low Power Consumption - Ideal for portable devices and energy-conscious applications
  • Slim and Compact Design - Perfect for integration into compact embedded systems
  • OEM and Custom Integration Support - Flexible integration options for large-scale projects

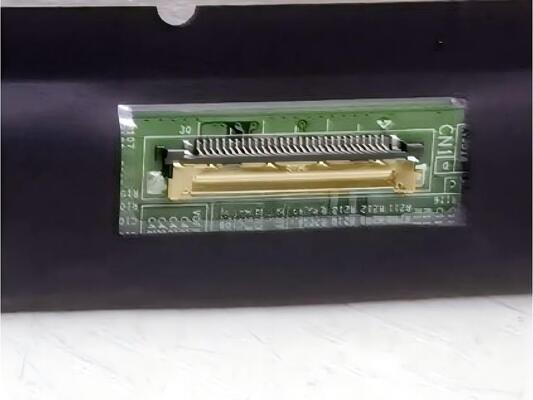

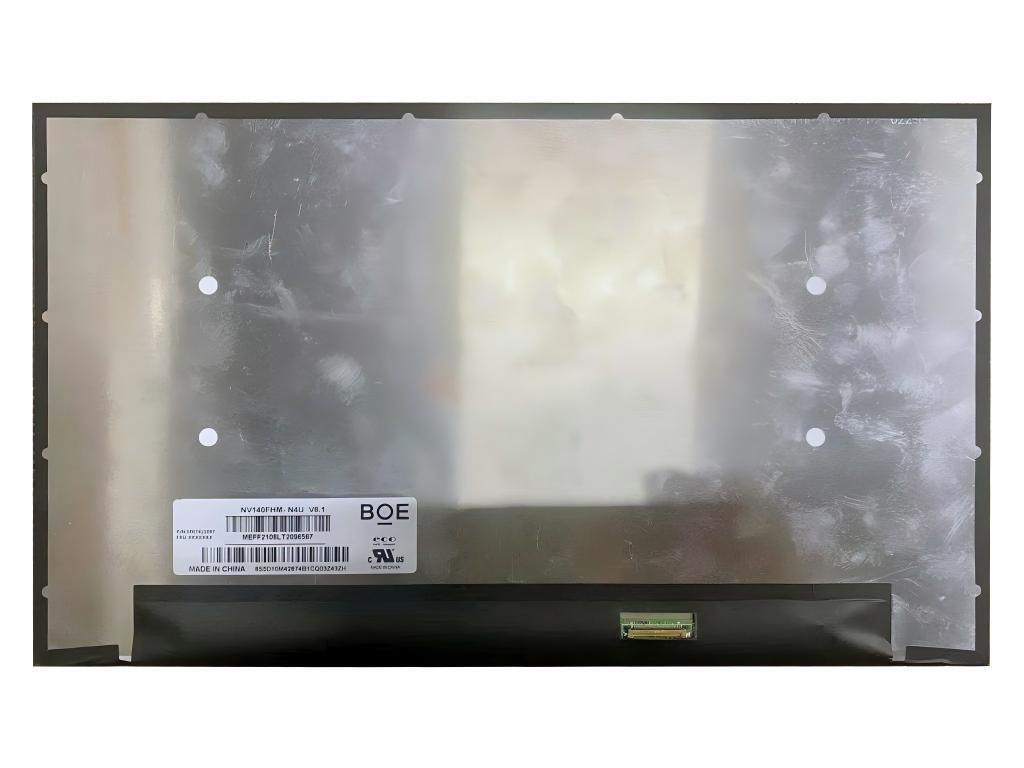

Product Display
NV140FHM-N4U 14.0 Inch Full HD TFT LCD Panel with eDP 1.2 Interface for Laptop and OEM Applications 0
Technical Specifications
Display Size14.0 Inch
Resolution1920 × 1080 (Full HD)
Display Area309.312 × 173.988 mm
Outline Size315.812 × 186.048 × 3.0 mm (Max)
Brightness250 cd/m² (Typ.)
Display Colors16.7M Colors (6bit + FRC)
Signal InterfaceeDP 1.2 (2 Lanes)
Operating Temperature0 ~ +50°C
Storage Temperature-20 ~ +60°C
Application Scenarios
  • Notebook Display Replacement - Ideal for replacing damaged or outdated displays in laptops and notebooks
  • OEM Embedded System Integration - Suitable for custom embedded systems requiring compact, high-resolution displays
  • Portable Devices - Used in portable computing devices requiring reliable, power-efficient displays
  • Industrial Control Panels - Perfect for integration into industrial control panels and user interface systems
  • Digital Signage and Kiosks - Ideal for digital signage applications and interactive kiosks
  • Custom Display Projects - Supports various custom display applications in OEM and DIY projects
Company Profile
NV140FHM-N4U 14.0 Inch Full HD TFT LCD Panel with eDP 1.2 Interface for Laptop and OEM Applications 1 NV140FHM-N4U 14.0 Inch Full HD TFT LCD Panel with eDP 1.2 Interface for Laptop and OEM Applications 2 NV140FHM-N4U 14.0 Inch Full HD TFT LCD Panel with eDP 1.2 Interface for Laptop and OEM Applications 3
Extensive Inventory: Over 1,000,000 self-owned stock items including Raspberry Pi boards, LCD monitors, touchscreens, cases, cables, and accessories from leading brands.
Competitive Pricing: Significant price advantages to reduce purchasing costs and save valuable time. We wholesale and distribute new, original, well-known brand electronic components worldwide.
Quality Assurance: Equipped with internationally advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality.
Expert Team: Elite professionals with over 20 years of industry experience and deep understanding of international market trends.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
