YMC0802SB-X01 Monochrome LCD Module 5.0V ST7066 Drive IC STN Blue

Name: YMC0802SB-X01 Monochrome LCD Module 5.0V ST7066 Drive IC STN Blue
Brand: Shenzhen YZY Technology Co., Ltd
SKU: YMC0802SB-X01
Price: 1.38 USD
Availability: InStock

Brand Name:	YZY
Model Number:	YMC0802SB-X01
MOQ:	500 pieces
Price:	$1.38~2.32/pieces
Payment Terms:	T/T
Supply Ability:	10000 pieces

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ROHS

Highlight:

Monochrome LCD module ST7066 drive

STN blue LCD display 5.0V

Monochrome LCD module with warranty

Product Description

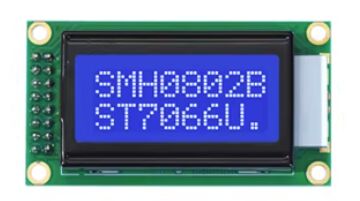

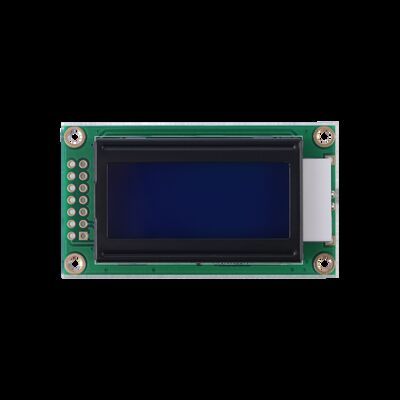

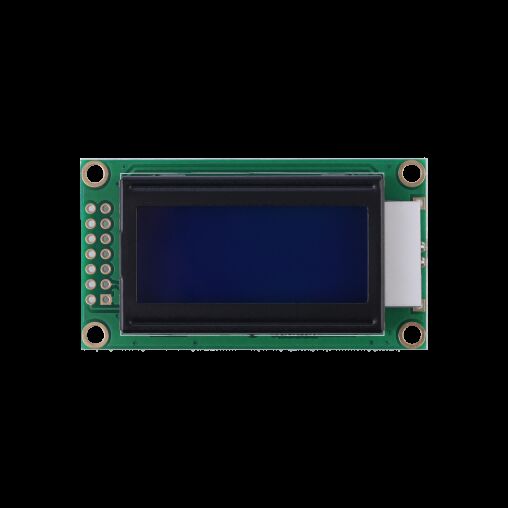

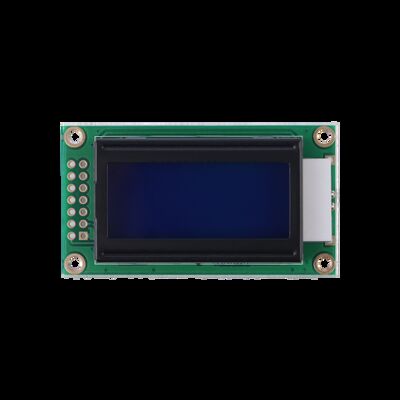

YMC0802SB-X01 Monochrome LCD Module 5.0V ST7066 Drive IC STN Blue

This industrial grade YMC0802SB-X01 (0802B-2) monochrome LCD module adopts STN blue negative transmissive display structure with professional ST7066 driver IC. It features 5.0V drive voltage, high-brightness white backlight with 20MA current, 6 o'clock viewing angle, 1/16 duty and 1/5 bias design, as well as wide temperature adaptability. With stable performance, standard 14PIN interface and durable iron frame & PCB structure, it is widely applied in industrial control, measuring instruments, smart embedded systems, electronic devices and various equipment with high reliability and stable display demands, complying with industrial application standards.

Product Specifications

Display Type	STN (Blue), Negative Transmissive Monochrome LCD
Module Model	YMC0802SB-X01
Driver IC	ST7066
Drive Mode	1/16 Duty, 1/5 Bias
Drive Voltage	5.0V DC
Viewing Angle/Direction	6 O'Clock
Backlight	White Backlight, IF=20MA
Operating Temperature	-20℃ ~ +70℃
Storage Temperature	-30℃ ~ +80℃
Connection Type	14PIN Interface (GND/VDD/VO/RS/RW/E/DB0-DB7)

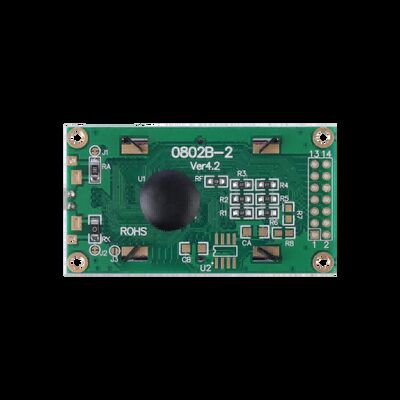

Structure Material	PCB Board + Iron Frame
Circuit Design	SMD1x1=1 DIEAS
Display Color	STN Blue Monochrome with White Backlight

Product Features

STN blue negative transmissive display, clear monochrome display effect with white backlight
Professional ST7066 driver IC, stable driving performance and strong anti-interference ability
5.0V standard drive voltage, compatible with mainstream industrial power supply systems
1/16 Duty & 1/5 Bias design, low power consumption and long-term stable operation
6 o'clock viewing angle, optimal visual experience for industrial equipment operation
20MA white backlight, uniform luminescence and high brightness for dark environment use
Wide temperature adaptation (-20~70℃ working), suitable for harsh industrial working environments
Standard 14PIN pinout (GND/VDD/VO/RS/RW/E/DB0-DB7), easy to connect and integrate
Durable PCB + iron frame structure, strong mechanical stability and long service life
Broad storage temperature range (-30~80℃), convenient for transportation and storage
SMD circuit design, compact structure and easy for embedded installation

Product Applications

Industrial control equipment and industrial operation display panels
Electronic measuring instruments, digital meters and precision testing equipment
Embedded control systems and smart industrial terminal devices
Small electronic equipment, portable test instruments and handheld terminals
Automotive auxiliary electronic devices and on-board small display modules
Smart home control panels and low-power intelligent display equipment
Communication terminal accessories and industrial sensor display modules
Various small digital display equipment with monochrome display demands
