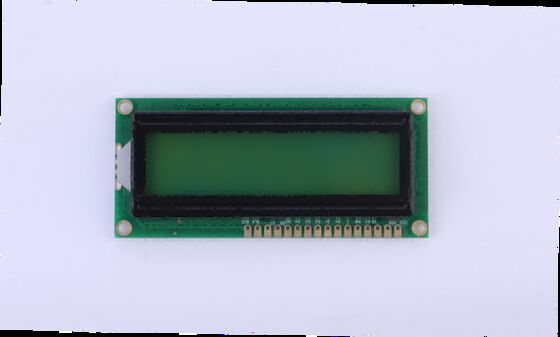

16x2 COB Character LCD Module STN Yellow-Green Positive ST7066U+ST7065 IC 5V
  • name
  • name
  • name

16x2 COB Character LCD Module STN Yellow-Green Positive ST7066U+ST7065 IC 5V

MOQ: 5 pieces
Price: $1.67-2.03/pieces
Standard Packaging: 10*10*5
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YMC1602SB-X26
Highlight:

16x2 COB character LCD module

,

STN yellow-green positive LCD

,

5V ST7066U LCD display

Product Description
YMC1602SB-X26 16x2 COB Character LCD Module Monochrome STN Yellow-Green Positive ST7066U+ST7065 IC 5V
This industrial grade 16x2 character LCD module adopts advanced COB (Chip On Board) packaging design, STN yellow-green positive transmissive display mode with high contrast monochrome effect, driven by professional ST7066U+ST7065 dual driver IC. It features 5.0V DC logic supply voltage, 4.7V DC LCD driving voltage, 16(characters)×2(line) standard display format, 8-bit parallel 16-pin interface, 1/16 Duty & 1/5 Bias driving method and 6 O'clock viewing direction. Equipped with yellow-green side backlight (3.0V±0.2V, IF=40mA), it has excellent wide temperature adaptability (-20~70℃ operating, -30~80℃ storage) and compact module dimension (80.00mm(W)×36.00mm(H)×8.70mm(T) Max). With RoHS compliance, ±0.2mm precise tolerance, stable performance and high reliability, it is widely applied in industrial control, measuring instruments, smart home appliances, embedded systems and various monochrome display scenarios with strict size requirements.
Product Specifications
Display Type Monochrome COB Character LCD Module (STN/Yellow-Green, Positive, Transmissive)
Part No. 1602W
Model No. YMC1602SB-X26
Display Format 16(characters) × 2(line)
Display Color Yellow-Green (STN Y/G)
Driver IC ST7066U + ST7065
Connection Type COB (Chip On Board)
Interface Type 8-bit Parallel Interface (16-pin)
Pin Number & Function 16PIN (1-VSS/GND, 2-VDD, 3-VO, 4-RS, 5-R/W, 6-E, 7-DB0, 8-DB1, 9-DB2, 10-DB3, 11-DB4, 12-DB5, 13-DB6, 14-DB7, 15-BLA, 16-BLK)
Logic Supply Voltage (VDD) 5.0V DC
LCD Driving Voltage 4.7V DC
Driving Method 1/16 Duty, 1/5 Bias
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Viewing Direction 6 O'clock
Backlight Type & Parameter Yellow-Green Side Backlight (3.0V±0.2V, IF=40mA)
Module Dimension (Max) 80.00mm(W) × 36.00mm(H) × 8.70mm(T)
Viewing Area (V/A) 71.40mm(W) × 16.00mm(H)
Effective Display Area (A/A) 55.02mm(W) × 11.00mm(H)
Ulteriorly Tolerance ±0.2mm
Compliance RoHS Compliant
Product Features
  • 16×2 character COB packaging design, STN yellow-green positive transmissive display, clear and eye-friendly monochrome display effect
  • Dual professional driver IC ST7066U+ST7065, 1/16 Duty & 1/5 Bias driving method, strong anti-interference and stable long-term operation
  • 8-bit parallel 16-pin standard interface, simple circuit connection, high compatibility with mainstream embedded control systems
  • Dual voltage design: 5.0V logic supply & 4.7V LCD driving voltage, matching standard industrial power supply specifications
  • 6 O'clock optimized viewing direction, no visual distortion, perfect for front-facing operation and observation scenarios
  • Integrated yellow-green side backlight (3.0V±0.2V, IF=40mA), uniform brightness, suitable for low-light working environments
  • Excellent wide temperature adaptability (-20~70℃ operating, -30~80℃ storage), reliable performance in harsh industrial conditions
  • Compact module size (80×36×8.70mm Max), ideal for space-constrained electronic product design and assembly
  • High precision mechanical parameters with ±0.2mm ulteriorly tolerance, ensuring consistent product assembly and stable quality
  • RoHS compliant, environmentally friendly material selection, meeting global market import and export standards
  • COB chip-on-board structure, high structural reliability, anti-vibration and anti-fall, suitable for industrial long-term use
Product Applications
  • Industrial control equipment and intelligent operation control panels
  • Portable measuring instruments and precision electronic test meters
  • Smart home appliance control panels and mini character display screens
  • Embedded system display modules and IoT terminal control devices
  • Automotive electronic auxiliary display components and vehicle-mounted small character displays
  • Medical portable devices and health monitoring equipment with small display
  • Handheld consumer electronics and battery-powered character display products
  • Office equipment and small instrument display interfaces
  • Smart sensor terminals and industrial data acquisition equipment
  • DIY electronic projects and embedded development kits
Dimension Drawing
16x2 COB Character LCD Module STN Yellow-Green Positive ST7066U+ST7065 IC 5V 0
Product Application
16x2 COB Character LCD Module STN Yellow-Green Positive ST7066U+ST7065 IC 5V 1
Cooperative Partner
16x2 COB Character LCD Module STN Yellow-Green Positive ST7066U+ST7065 IC 5V 2
Our Factory
16x2 COB Character LCD Module STN Yellow-Green Positive ST7066U+ST7065 IC 5V 3

Payment and Shipping
16x2 COB Character LCD Module STN Yellow-Green Positive ST7066U+ST7065 IC 5V 4
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.

The company's products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, making it a supplier to many well-known clients worldwide.
Frequently Asked Questions
1. How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
2. Do you supply samples?
Yes, we provide samples for evaluation.
3. What is the delivery time?
Typically 7 working days after payment confirmation.
4. What is the minimum order quantity?
1 piece minimum order quantity.
5. What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
6. What are your main products?
Comprehensive range including, LCD modules, touch modules, LCD panels, FPC boards and various optoelectronic materials for industrial control, medical equipment and smart devices.
7. What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
8. What shipping methods do you offer?
DHL and China Post shipping services available.
