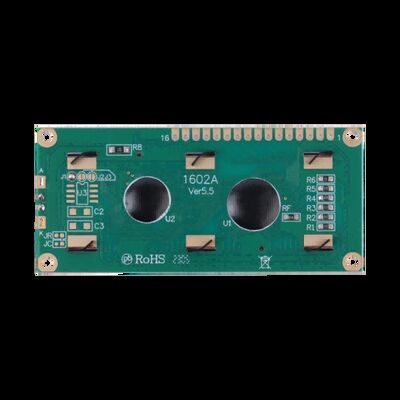

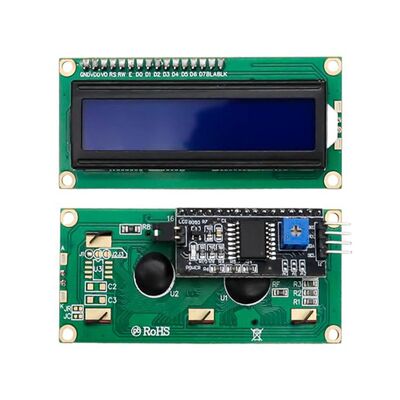

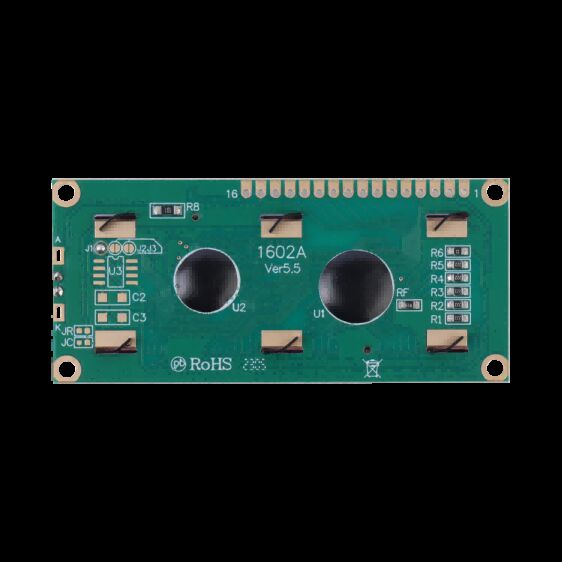

16x2 STN Blue Monochrome LCD Display YMC1602SB-X01 5.0V ST7066U Drive IC
  • name
  • name
  • name

16x2 STN Blue Monochrome LCD Display YMC1602SB-X01 5.0V ST7066U Drive IC

MOQ: 10 pieces
Price: $1.19~2.01/pieces
Standard Packaging: 12*7*5
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YMC1602SB-X01
Product Description
16x2 STN Blue Monochrome LCD Display YMC1602SB-X01 5.0V ST7066U Drive IC
Industrial grade YMC1602SB-X01 (1602A) monochrome LCD module featuring STN blue negative transmissive display with professional ST7066U driver IC (or equivalence). This module operates at 5.0V logic and driving voltage with 16 characters × 2 lines resolution, 16PIN interface and 1/16 Duty 1/4 Bias drive method. Designed with 6 o'clock viewing angle and 20mA white backlight, it delivers stable performance for industrial control, measuring instruments, smart embedded systems, and electronic devices requiring high reliability and stable display performance in harsh environments.
Product Specifications
Display Type STN (Blue), Negative Transmissive Monochrome LCD
Module Model YMC1602SB-X01
Driver IC ST7066U or Equivalence
Resolution 16 (characters) × 2 (line)
Logic Supply Voltage 5.0V DC
LCD Driving Voltage 5.0V DC ±0.2V
Drive Method 1/16 Duty, 1/4 Bias
Viewing Direction 6 O'Clock
Backlight Type White, 5.0V ±0.2V 20mA
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Connection Type 16PIN Interface
Dimensional Tolerance ±0.2mm
Compliance RoHS Certified
Display Color STN Blue Monochrome with White Backlight
Product Features
  • STN blue negative transmissive display with clear monochrome character display effect
  • Professional ST7066U driver IC (or equivalence) for stable performance and strong anti-interference
  • 5.0V standard logic and driving voltage, compatible with mainstream industrial power systems
  • 1/16 Duty & 1/4 Bias drive method for low power consumption and long-term stable operation
  • 16 characters × 2 lines resolution, ideal for medium information display applications
  • 6 o'clock viewing angle, providing optimal visual experience for industrial equipment operation
  • 20mA white backlight with uniform luminescence, suitable for dark environment use
  • 16PIN standard interface with clear pin definition, easy to connect and system integration
  • Wide temperature adaptation (-20~70℃) suitable for harsh industrial working environments
  • Broad storage temperature range (-30~80℃) for convenient transportation and storage
  • ±0.2mm high-precision dimensional tolerance, ensuring perfect installation fit
  • RoHS compliant, meeting global environmental protection and market access requirements
  • Industrial grade design with stable performance for continuous working scenarios
Product Applications
  • Industrial control equipment and industrial operation display panels
  • Electronic measuring instruments, digital meters and precision testing equipment
  • Embedded control systems and smart industrial terminal devices
  • Industrial sensors and data acquisition device display modules
  • Automotive auxiliary electronic devices and on-board small display modules
  • Smart home control panels and low-power intelligent display equipment
  • Communication terminal accessories and industrial communication equipment
  • Portable test instruments and handheld industrial terminals
  • Financial self-service equipment and small display components
  • Medical auxiliary equipment and low-voltage medical display modules
  • Various industrial and commercial electronic devices with monochrome character display needs
Technical Documentation
16x2 STN Blue Monochrome LCD Display YMC1602SB-X01 5.0V ST7066U Drive IC 0
Product Application Examples
16x2 STN Blue Monochrome LCD Display YMC1602SB-X01 5.0V ST7066U Drive IC 1
Various Types
16x2 STN Blue Monochrome LCD Display YMC1602SB-X01 5.0V ST7066U Drive IC 2
Manufacturing Facility
16x2 STN Blue Monochrome LCD Display YMC1602SB-X01 5.0V ST7066U Drive IC 3
Shipping and Delivery
16x2 STN Blue Monochrome LCD Display YMC1602SB-X01 5.0V ST7066U Drive IC 4
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Our product portfolio includes Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, serving many well-known clients worldwide.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance, complying with the stated tolerance and technical parameters.
Do you supply samples?
Yes, we provide samples for evaluation, supporting small batch testing for your project development.
What is the delivery time?
Typically 7 working days after payment confirmation for both sample and bulk orders.
What is the minimum order quantity?
1 piece minimum order quantity, supporting individual purchase for prototyping and small projects.
What if we receive missing or defective items?
Please contact us immediately with product photos and order information, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including various size LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments for all orders, both sample and bulk.
What shipping methods do you offer?
DHL and China Post shipping services available, covering global delivery for your convenience.
