HKC MB156AN01-4 15.6 Inch HD TFT LCD Panel with 1366x768 Resolution and eDP 1.2 Interface for Laptop Screen Replacement
  • name

HKC MB156AN01-4 15.6 Inch HD TFT LCD Panel with 1366x768 Resolution and eDP 1.2 Interface for Laptop Screen Replacement

MOQ: 100 pcs
Price: $22.99-35.99 Piece
Payment Method: ,T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
HKC
Certification
CE，RoHS
Model Number
MB156AN01-4
Highlight:

15.6 inch laptop LCD screen

,

HKC MB156AN01-4 TFT panel

,

eDP 1.2 laptop screen replacement

Product Description
HKC MB156AN01-4 15.6 Inch HD TFT LCD Panel 1366x768 30 Pin eDP Laptop Screen
Product Overview

MB156AN01-4 is a 15.6 inch TFT LCD panel from HKC, featuring HD 1366×768 resolution and 1 lane eDP 1.2 interface. It supports 16.7M colors with 6bits plus Hi FRC, anti-glare surface treatment, and built-in LED driving circuit, making it suitable for laptop screen replacement and OEM display projects.

Key Features
  • 15.6 inch HD TFT LCD panel with 1366×768 resolution
  • 1 lane eDP 1.2 interface for stable signal transmission
  • 16.7M colors with 6bits plus Hi FRC color depth
  • Typical brightness reaches 220 cd per square meter
  • Anti glare surface treatment for better viewing comfort
  • Built in LED driving circuit for easier integration
  • Slim structure with 3.2 mm max thickness
  • Suitable for laptop replacement and OEM assembly projects

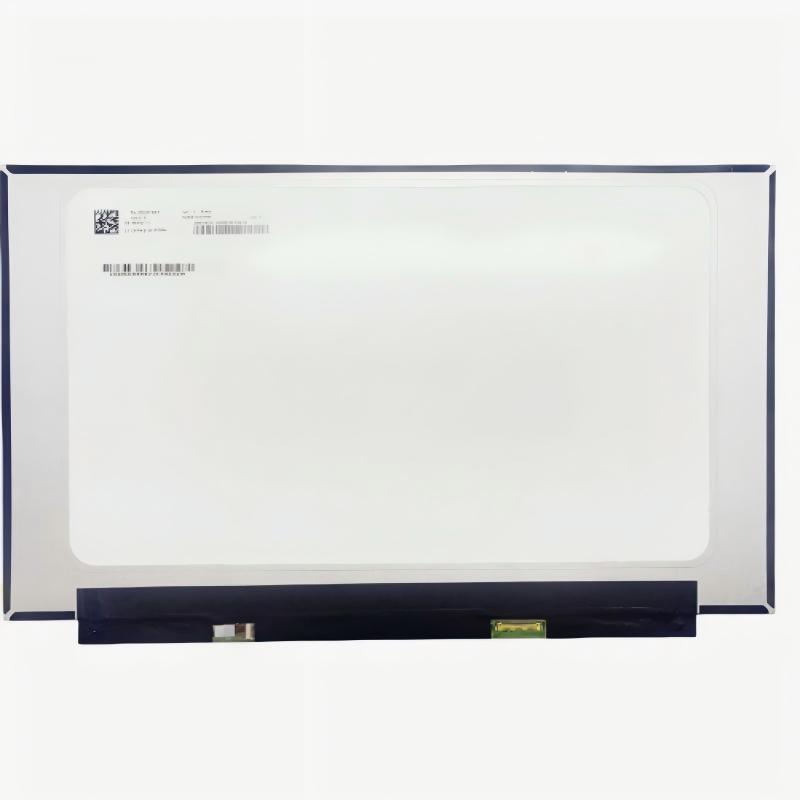

Product Display
HKC MB156AN01-4 15.6 Inch HD TFT LCD Panel with 1366x768 Resolution and eDP 1.2 Interface for Laptop Screen Replacement 0
Technical Specifications
Specification Details
Display Size 15.6 Inch
Resolution 1366 × 768
Display Area 344.232(H) × 193.536(V) mm
Outline Size 350.66±0.3(H) × 205.24±0.3(V) × 3.2 Max mm
Brightness 220 cd/m² Typ.
Display Colors 16.7M 6bits + Hi FRC
Signal Interface 1 Lane eDP 1.2
Operating Temperature 0 ~ +50 °C
Storage Temperature -20 ~ +60 °C
Application Scenarios
  • Laptop screen replacement projects
  • OEM notebook display assembly
  • Laptop repair and refurbishment business
  • Spare parts supply for distributors
  • Office and education laptop maintenance
  • Bulk procurement for display replacement market
