1.97" IPS TFT LCD Screen 170×320 SPI Interface 800:1 High Contrast Display

MOQ: 500 pieces
Price: $5.55-8.99/pieces
Standard Packaging: 21*20*15
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YVO020QVGA-X01
Product Description
YVO020QVGA-X01 1.97 Inch TFT LCD Module
High-performance 1.97-inch small-size TFT LCD module with 170×320 resolution, IPS wide viewing angle, 4-line SPI interface, and wide temperature reliability. Designed for portable devices, smart wearables, small handheld terminals, compact instruments and embedded display applications.
Product Overview
This compact 1.97-inch TFT LCD display adopts IPS full-viewing technology and a‑Si TFT active matrix structure with 170(RGB)×320 high resolution. It offers excellent optical performance with 640:1~800:1 high contrast ratio, 30~40ms fast response time, and 54%~60% color gamut for clear and natural imaging. The module integrates 4-parallel LED backlight, supports 2.8~3.3V power supply, and operates reliably in -20℃ to +70℃ temperature range. With small dimension 25.80×49.72×2.1mm, it is easy to integrate and ideal for space-limited smart devices and portable equipment.
Technical Specifications
Display Type 1.97 Inch IPS TFT-LCD Module
Model Number YVO020QVGA-X01
Panel Size 1.97 Inch (Diagonal)
LCD Type a‑Si TFT Active Matrix, Transmissive
Display Mode IPS, Normally White
Resolution 170(RGB) × 320 Pixels
Pixel Pitch 0.153 × 0.153 mm
Active Area 22.70 × 42.72 mm
Outline Dimension 25.80 × 49.72 × 2.1 mm
Interface 4-line SPI interface
Contrast Ratio 640 ~ 800 (Typ.)
Response Time 30 ~ 40 ms (Typ.)
Viewing Angle 80/80/80/80 deg (IPS)
Color Gamut 54% ~ 60% (Typ.)
Driver IC NV3030A
Backlight 4 parallel LEDs
Backlight Voltage 3.2V (Typ.) ±0.2V
Supply Voltage 2.8V ~ 3.3V
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Color Coordinates Wx:0.296, Wy:0.325
Reliability High temperature, low temperature, thermal cycle test passed
Compliance RoHS Compliant
Key Features
  • 1.97-inch compact IPS TFT LCD with 170×320 high resolution for sharp and clear display
  • Ultra-wide viewing angle IPS technology for clear reading from all directions
  • High contrast ratio 640:1~800:1 for strong image hierarchy and detail expression
  • 30~40ms fast response time to avoid motion blur and ghosting
  • Stable 4-line SPI interface for easy control and fast signal transmission
  • Wide operating temperature -20℃ to +70℃ for harsh environment applications
  • Ultra-thin outline 25.80×49.72×2.1mm for compact device integration
  • High reliability design with strict reliability testing
  • Long lifespan LED backlight with stable luminance output
  • Standard RoHS compliance, safe for industrial and consumer applications
Applications
  • Smart wearable devices and small touch displays
  • Handheld testing instruments and portable meters
  • Compact industrial HMI and small control panels
  • Smart home control panels and small IoT terminals
  • Medical handheld devices and health monitors
  • Small vehicle-mounted displays and dashboard screens
  • Embedded systems and miniaturized display solutions
  • Consumer electronics and small smart gadgets

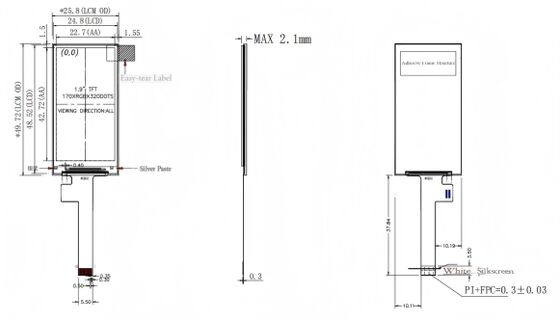

Product Documentation
1.97" IPS TFT LCD Screen 170×320 SPI Interface 800:1 High Contrast Display 0

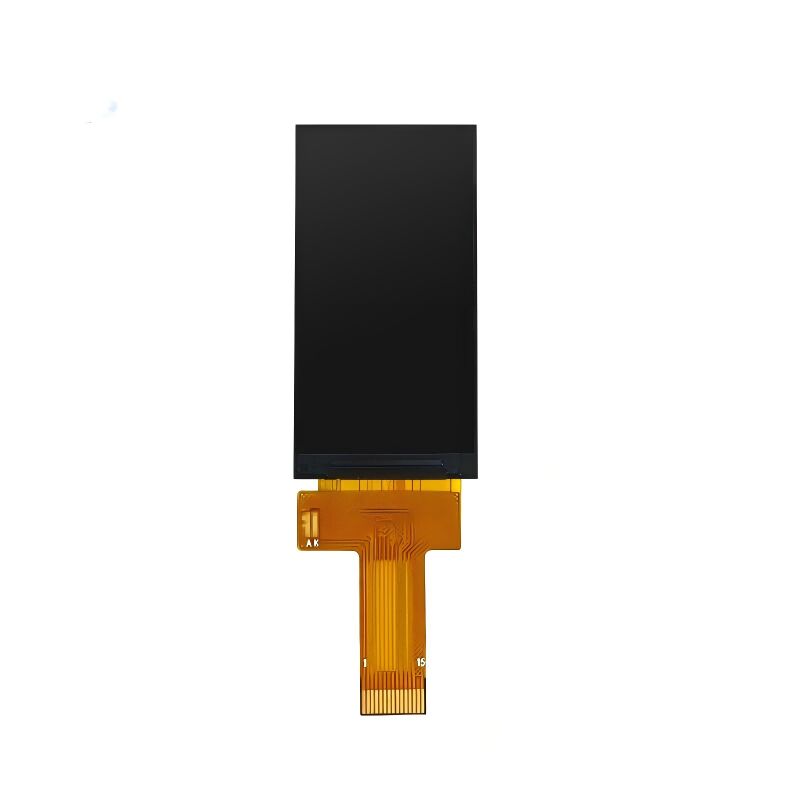

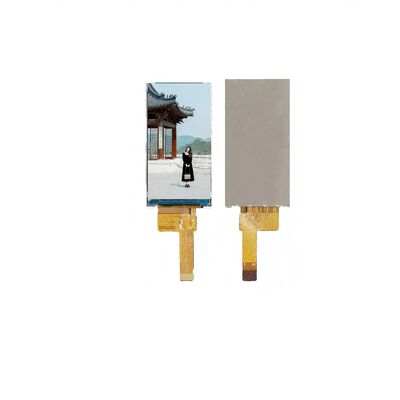

Product Image
1.97" IPS TFT LCD Screen 170×320 SPI Interface 800:1 High Contrast Display 1

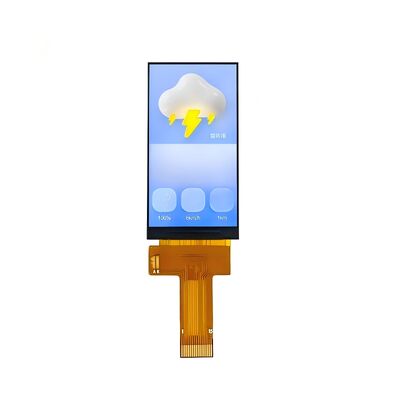

Application examples
1.97" IPS TFT LCD Screen 170×320 SPI Interface 800:1 High Contrast Display 2
Partner companies
1.97" IPS TFT LCD Screen 170×320 SPI Interface 800:1 High Contrast Display 3
Manufacturing facility and quality control
1.97" IPS TFT LCD Screen 170×320 SPI Interface 800:1 High Contrast Display 4
Shipping methods and delivery information
Company Profile
Our company is a professional manufacturer and supplier of small and medium‑size TFT LCD modules, OLED displays, and customized display solutions. We focus on high‑quality display development, production, and global sales services for industrial, wearable, medical, automotive, and consumer electronic fields.
We provide stable quality, fast delivery, and professional technical support for worldwide customers. Our products are widely used in smart wearables, industrial instruments, handheld terminals, automotive electronics, smart home, IoT devices, and various embedded display applications.
Frequently Asked Questions
  • How do you control product quality?
    Each module passes high/low temperature test, thermal cycle test, vibration test, and optical performance test before shipment.
  • Do you supply samples?
    Yes, we provide samples for customer evaluation and mass production verification.
  • What is the delivery time?
    7~10 working days for standard orders; 15~20 working days for customized orders.
  • What is the minimum order quantity?
    1 piece for sample test; flexible MOQ for bulk orders.
  • Can you customize the interface or FPC?
    Yes, we support interface, FPC length, pin definition, and cover lens customization.
  • What about after-sales service?
    We provide 12-month warranty and lifetime technical support for all products.
  • What payment methods do you accept?
    We accept T/T, PayPal, and Western Union for small orders.
  • What shipping methods do you offer?
    DHL, FedEx, UPS, and standard air shipping for global fast delivery.
