2.86 Inch 376×960 MIPI TFT LCD Bar Display 400cd/m² Normally Black for Smart Home
  • name
  • name
  • name
  • name

2.86 Inch 376×960 MIPI TFT LCD Bar Display 400cd/m² Normally Black for Smart Home

MOQ: 500 pieces
Price: $6.29-9.99/pieces
Standard Packaging: 21*20*15
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YVO029WVGA-X01
Product Description
2.86 Inch TFT LCD Module YVO029WVGA-X01
High-performance 2.86-inch small-size TFT LCD display module with 376×960 resolution, MIPI interface, normally black display mode, designed for handheld devices, industrial instruments, smart wearables and compact embedded display applications.
Product Overview
This 2.86-inch a-Si TFT LCD module adopts color active matrix technology and TFT active switching devices. It offers 376×960 high resolution, RGB vertical stripe pixel arrangement, 16.7M full colors display and normally black mode. With MIPI interface, compact outline dimension 31.20×76.60×2.45mm and wide viewing angle design, it is the ideal small-size display solution for industrial instruments, smart wearables, handheld terminals, IoT devices and compact embedded systems.
Technical Specifications
Display Type 2.86 Inch a-Si TFT-LCD, LCM
Model Number YVO029WVGA-X01
Resolution 376(RGB) × 960 Pixels
Display Mode Normally Black, Transmissive
Active Area 26.508 × 67.68 mm
Outline Dimension 31.20 × 76.60 × 2.45 mm
Pixel Pitch 23.5 × 70.5 um
Pixel Arrangement RGB Vertical Stripe
Display Colors 16.7M
Interface MIPI
Brightness 750 cd/m² (Typ.)
Contrast Ratio 1500:1 (Typ.)
Viewing Angle 85° (Left/Right/Up/Down) (CR>10)
Color Gamut 55.1% NTSC (CIE1931)
Response Time 30 ~ 35 ms
Supply Voltage 3.3V (VCI, IOVCC)
Operating Temperature -20℃ ~ +70℃
Storage Temperature -20℃ ~ +70℃
Compliance RoHS Compliant
Key Features
  • 2.86-inch small-size a-Si TFT LCD with 376×960 high resolution
  • RGB vertical stripe pixel arrangement for clear and stable image display
  • 16.7M full colors for accurate and delicate color reproduction
  • Normally black transmissive display mode for high contrast effect
  • 750 cd/m² high brightness for excellent indoor and outdoor readability
  • 1500:1 high contrast ratio for clear image details and layering
  • 85° wide viewing angle for multi-direction clear observation
  • Standard MIPI interface for stable signal transmission and easy integration
  • Compact 31.20×76.60×2.45mm outline dimension for space-limited applications
  • Wide temperature range support for industrial and harsh environments
  • Strict reliability test passed for long-term stable operation
  • RoHS compliant, environmental friendly and safe for various devices
Applications
  • Industrial handheld instruments and measuring equipment
  • Smart wearables and portable consumer electronic devices
  • IoT intelligent terminal and compact embedded display system
  • Industrial control panel and small size HMI display
  • Medical handheld device and health care equipment
  • Automotive electronic and vehicle-mounted compact display
  • Smart home control panel and status information display
  • Custom small size TFT LCD display module and OEM/ODM project

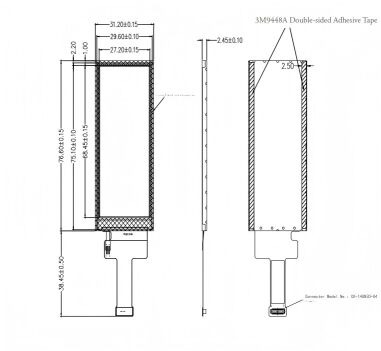

Product Documentation
2.86 Inch 376×960 MIPI TFT LCD Bar Display 400cd/m² Normally Black for Smart Home 0

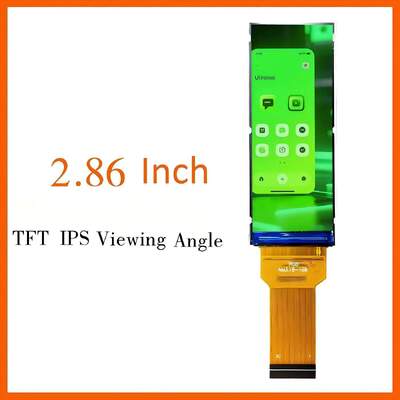

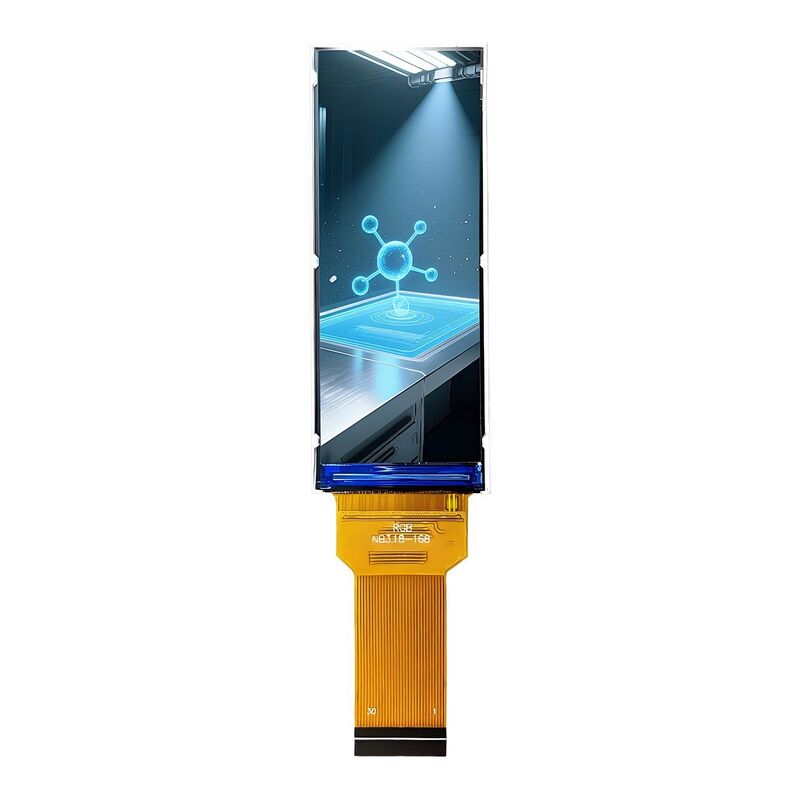

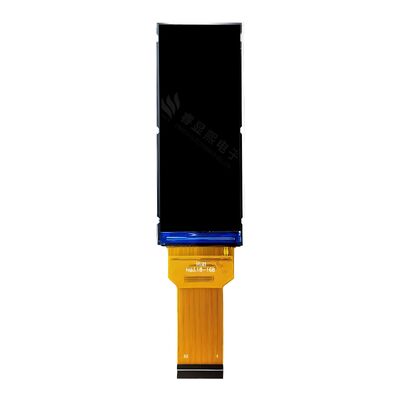

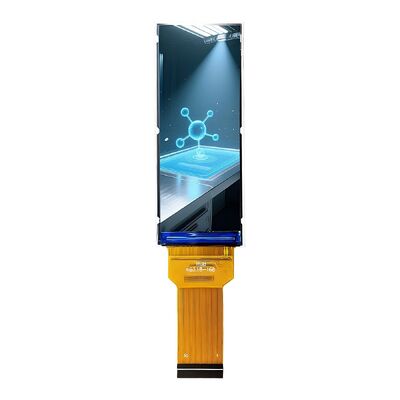

Product Image
2.86 Inch 376×960 MIPI TFT LCD Bar Display 400cd/m² Normally Black for Smart Home 1
Application examples in industrial and consumer devices2.86 Inch 376×960 MIPI TFT LCD Bar Display 400cd/m² Normally Black for Smart Home 2
Partner companies and collaborative projects
2.86 Inch 376×960 MIPI TFT LCD Bar Display 400cd/m² Normally Black for Smart Home 3
Manufacturing facility and quality control environment
2.86 Inch 376×960 MIPI TFT LCD Bar Display 400cd/m² Normally Black for Smart Home 4
Shipping methods and delivery information
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, and financial services.
Frequently Asked Questions
How do you control product quality?
Each product undergoes strict testing before shipping following MIL-STD-105E sampling plan and multiple reliability tests including high temperature storage, low temperature storage, high temperature & high humidity operation and image sticking test.
Do you supply samples?
Yes, we provide samples for customer evaluation and functional testing.
What is the delivery time?
Typically 7 working days after payment confirmation for standard orders. Custom orders may require additional lead time.
What is the minimum order quantity?
1 piece minimum order quantity for sample orders, with flexible MOQ for bulk production.
What if we receive missing or defective items?
Contact us immediately for investigation and prompt resolution. We offer replacement or refund for confirmed quality issues.
What are your main products?
Comprehensive range including small-size TFT LCD modules, bar type displays, OLED displays, touch modules and customized display solutions.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments, Western Union, and PayPal for small orders.
What shipping methods do you offer?
DHL, FedEx, UPS and China Post shipping services available. Express delivery is available for urgent orders.
