1.68 Inch IPS TFT Display 142×428 4-Wire SPI Full View for IoT Smart Devices
  • name
  • name
  • name
  • name
  • name

1.68 Inch IPS TFT Display 142×428 4-Wire SPI Full View for IoT Smart Devices

MOQ: 500 pieces
Price: $2.29~3.59/pieces
Standard Packaging: 10*10*8
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000Pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YVO0168CIS-J2
Highlight:

1.68 inch IPS TFT display

,

4-wire SPI bar LCD

,

IoT smart device display

Product Description

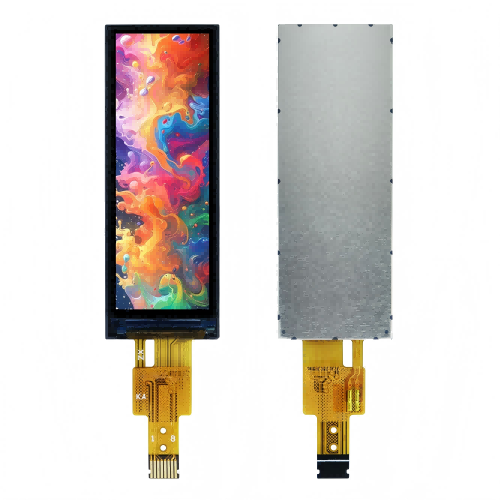

1.68 Inch IPS TFT LCD Display Module

1.68 inch IPS TFT LCD module with 142(RGB)×428 resolution, 4-Wire SPI interface, 262K display colors, full viewing angle, wide temperature range, designed for smart wearables, portable medical devices, IoT terminals, handheld instruments and compact embedded display applications. We support customization service to meet diverse application demands.

Product Overview

This 1.68 inch IPS TFT LCD display module adopts IPS full-view technology and slim narrow structure, supporting 142×428 high resolution and 262K color display. Equipped with 4-Wire SPI interface and NV3007 driver IC, it features full viewing angle, high contrast, stable performance and long-life LED backlight. With operating temperature range from -20℃ to +70℃ and 8-pin FPC interface, this module delivers stable and clear display performance for smart electronics and industrial control equipment.YVO0168CIS-J2 (NT168HJ-C08-02)datasheet.pdf

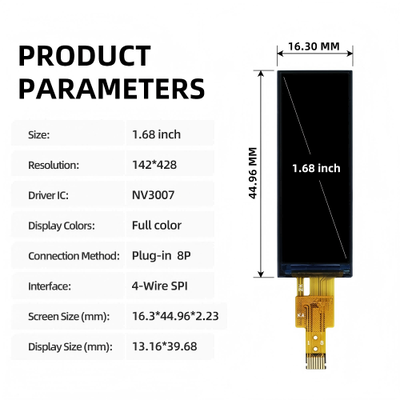

Technical Specifications
Display Type 1.68 Inch IPS TFT-LCD Module LCM
Model Number YVO0168CIS-J2
Part Number NT168HJ-C08-02
Resolution 142(RGB) × 428 Pixels
Display Mode Normally Black, IPS
Display Colors 262K Colors
Viewing Angle All Direction Full View
Interface 4-Wire SPI
Driver IC NV3007
Contrast Ratio High Contrast
Dot Pitch 0.2184 × 0.2184 mm
Module Size 16.3(W) × 44.96(H) × 2.23(T) mm
Active Area 13.16(W) × 39.68(H) mm
Backlight Voltage 3.0V (Typical)
Backlight Current 80 mA (Typical)
Operating Temperature -20°C ~ +70°C
Storage Temperature -30°C ~ +80°C
Compliance RoHS Compliant
Key Features
  • 1.68 inch IPS TFT with 142×428 resolution and 262K color display
  • All direction full viewing angle for clear image from any side
  • Normally black display mode for excellent visual effect
  • Standard 4-Wire SPI interface for easy drive and integration
  • Built-in NV3007 driver IC for stable and reliable operation
  • RGB vertical stripe color arrangement for true color performance
  • Wide temperature -20℃~70℃ for industrial and consumer use
  • Slim narrow outline design for limited space applications
  • Long lifespan LED backlight up to 10000 hours
  • RoHS compliant, environmental friendly and safe to use
  • Strict reliability testing ensures long‑term stable performance
  • Support FPC length and pin definition customization

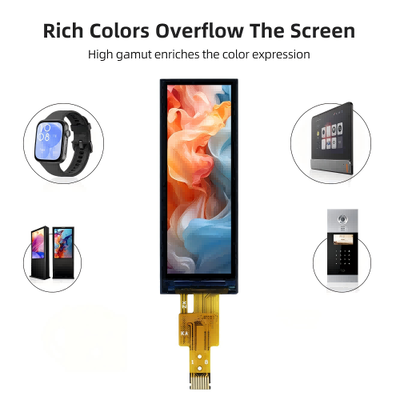

Applications
  • Smart watch, bracelet and wearable fitness devices
  • Portable medical instruments and health monitoring equipment
  • IoT smart terminals and compact embedded display systems
  • Handheld measurement tools and industrial small meters
  • Smart home control panels and small human-machine interfaces
  • Battery-powered portable devices and smart electronics
  • Small consumer electronics and handheld gadgets
  • Compact industrial control modules and intelligent instruments
Product Documentation
1.68 inch IPS TFT LCD Module technical drawing and dimensions
Product drawing
LCD module application examples in industrial and consumer devices
Application examples in industrial and consumer devices
Technology partner companies and collaborative projects
Partner companies and collaborative projects
Manufacturing facility and quality control environment
Manufacturing facility and quality control environment
Shipping methods and delivery information
Shipping methods and delivery information

Why Choose Us?

Extensive Product Supply: We support a wide range of display products and related consumer electronics accessories, including Raspberry Pi displays, LCD modules, touch screens, laptop screens, digital photo frames, HDMI LCD displays, industrial monitors, portable monitors, driver boards, e-paper displays, OLED display modules, ESP32 display modules, data cables and mobile phone screen protectors.



Competitive Pricing: With stable supply chain resources and flexible order support, we can provide cost-effective solutions for samples, small-batch orders and bulk projects.



Quality Control: Products are checked before shipment based on the product type, including appearance, packaging, basic function testing, and when applicable, screen display, touch response and power input.



Experienced Team: Our team has long-term experience in display products and international project support. We help customers confirm suitable models based on size, resolution, interface, function and application requirements.

Frequently Asked Questions
How do you control product quality?
Products are checked before shipment based on the product type, including appearance, packaging, basic function testing, and when applicable, display performance, touch response and power input.
Do you supply samples?
Yes, samples are available for testing and project evaluation.

What is the delivery time?

For standard models, delivery time depends on stock and order quantity. For customized products or project-based orders, we will confirm the lead time after checking the detailed requirements.


What is the minimum order quantity?

Sample order is available. Bulk order quantity can be discussed based on the product model, stock status and customization requirements.


Can you support customization?

Yes, customization can be supported for selected products, including screen size, resolution, touch panel, interface, cables, driver board, housing, storage, software functions or packaging, depending on the product type.


What if we receive missing or defective items?

Please contact us with photos or videos of the issue. We will check the case and provide a suitable solution as soon as possible.


What payment methods do you accept?

T/T payment is accepted. Other payment methods can be discussed before order confirmation.


What shipping methods do you offer?

DHL, FedEx, UPS, air freight, and China domestic forwarding services are available.
