| Brand Name: | YZY |
| Model Number: | YNO0225AFS-J2 |
| MOQ: | 500 pieces |
| Price: | $2.19~2.79/pieces |
| Payment Terms: | T/T |
| Supply Ability: | 10000Pieces |

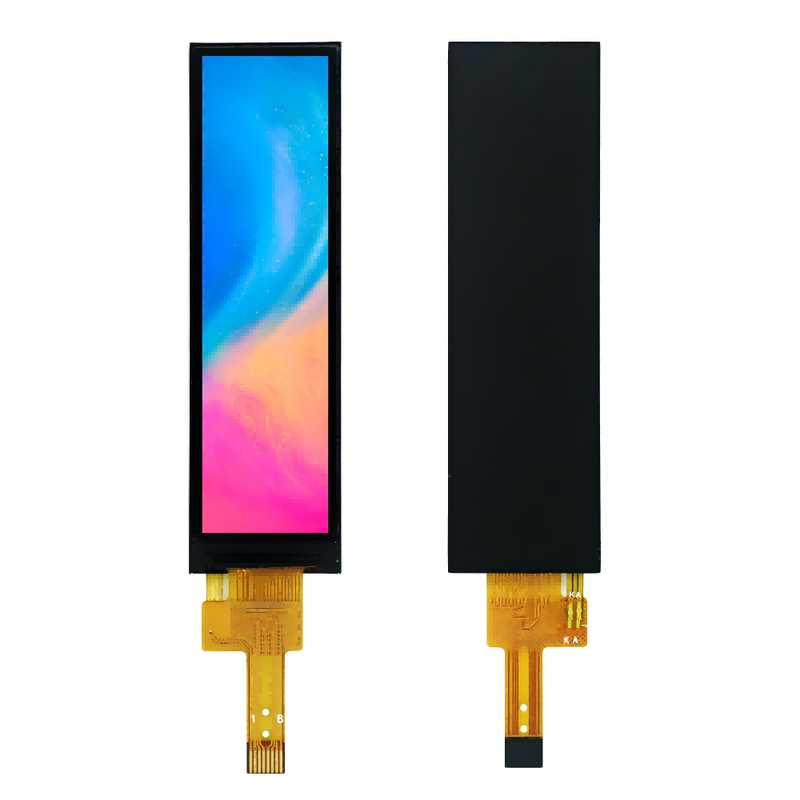

2.25 inch long strip TFT LCD module with 76(RGB)×284 resolution, 4-wire SPI interface, 262K display colors, 600cd/m² high brightness, wide operating temperature -20℃~70℃, no touch panel design. Widely used for industrial control equipment, handheld measuring instruments, medical devices, smart home appliances and embedded electronic display projects. Customized FPC, structure and backlight service available.
This 2.25-inch vertical bar type TFT LCD screen adopts normally white display mode with RGB vertical stripe pixel arrangement, equipped with ST7789P3 built-in driver IC and 4-line SPI serial communication. Typical brightness reaches 600cd/m², contrast ratio 600~800:1, response time 35~45ms, powered by four parallel white LED backlight. Operating temperature from -20℃ to 70℃, storage temperature -30℃~80℃, MTBF up to 50000 hours. Stable performance for industrial control, portable instruments, automotive auxiliary display and various compact consumer electronic equipment without touch requirement.YNO0225AFS-J2 (LT225C7-C08-03) datasheet.pdf

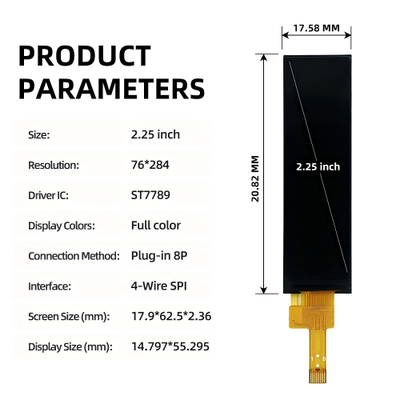

| Display Type | 2.25 Inch Bar TFT-LCD Module LCM |
|---|---|
| Model Number | YNO0225AFS-J2 |
| Part Number | LT225C7-C08-03 |
| Resolution | 76(RGB) × 284 Pixels |
| Display Mode | Normally White |
| Display Colors | 262K Colors |
| Best View Direction | 12 O'clock |
| Interface | 4-wire SPI |
| Driver IC | ST7789P3 |
| Contrast Ratio | 600:1 ~ 800:1 (Typical) |
| Response Time | 35~45ms |
| Brightness | 600cd/m² (Typical, Min 550cd/m²) |
| Backlight Spec | 4 Parallel White LED, Typical 3.0V / 80mA |

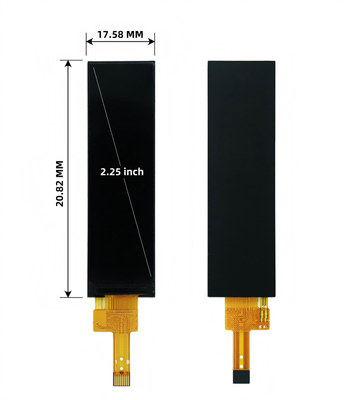

| Module Size | 17.9(W) × 62.5(H) × 2.36(T) mm |
| Active Area | 14.7972(W) × 55.2948(H) mm |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Module Weight | 5g |
| Compliance | RoHS Compliant |
Why Choose Us?
Extensive Product Supply: We support a wide range of display products and related consumer electronics accessories, including Raspberry Pi displays, LCD modules, touch screens, laptop screens, digital photo frames, HDMI LCD displays, industrial monitors, portable monitors, driver boards, e-paper displays, OLED display modules, ESP32 display modules, data cables and mobile phone screen protectors.
Competitive Pricing: With stable supply chain resources and flexible order support, we can provide cost-effective solutions for samples, small-batch orders and bulk projects.
Quality Control: Products are checked before shipment based on the product type, including appearance, packaging, basic function testing, and when applicable, screen display, touch response and power input.
Experienced Team: Our team has long-term experience in display products and international project support. We help customers confirm suitable models based on size, resolution, interface, function and application requirements.
For standard models, delivery time depends on stock and order quantity. For customized products or project-based orders, we will confirm the lead time after checking the detailed requirements.
Sample order is available. Bulk order quantity can be discussed based on the product model, stock status and customization requirements.
Yes, customization can be supported for selected products, including screen size, resolution, touch panel, interface, cables, driver board, housing, storage, software functions or packaging, depending on the product type.
Please contact us with photos or videos of the issue. We will check the case and provide a suitable solution as soon as possible.
T/T payment is accepted. Other payment methods can be discussed before order confirmation.
DHL, FedEx, UPS, air freight, and China domestic forwarding services are available.
