14 Inch FHD TFT LCD Panel 1920x1080 30 Pin eDP Laptop LCD Screen For Notebook PC And OEM Display Projects
  • name
  • name

14 Inch FHD TFT LCD Panel 1920x1080 30 Pin eDP Laptop LCD Screen For Notebook PC And OEM Display Projects

MOQ: 200 pcs
Price: $28 - $35 / Piece
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
RoHS
Model Number
YVO1400VQE-Y1
Product Description

14 Inch FHD eDP Laptop LCD Panel

1920×1080 resolution, 30 pin eDP interface, anti-glare surface, and 350 nits brightness for notebook PC replacement and OEM display projects.

Product Overview

YVO1400VQE-Y1 is a 14.0 inch Full HD TFT LCD panel suitable for notebook screen replacement, OEM laptop assembly, repair projects, and LCD spare parts supply. It features 1920×1080 resolution, 2 lane eDP 1.2 interface, FFS normally black display mode, anti-glare surface treatment, and 350 cd/m² typical brightness for clear and stable display performance.

This model is mainly used for compatible 14 inch FHD notebook applications, and can also be evaluated for selected embedded eDP display projects when the mainboard signal output and mechanical structure are suitable. For replacement or project use, compatibility should be confirmed based on the original panel model, connector type, pin definition, connector position, outline size, thickness, and mounting structure.

Key Features


14 Inch Full HD Display

1920×1080 resolution for notebook PC screen replacement and OEM display projects.

2 Lane eDP 1.2 Interface

Supports 2 lane eDP 1.2 signal transmission for notebook display replacement and OEM integration projects.

30 Pin eDP Connector

30 pin eDP connector layout with LV03030-13100 connector for project matching and replacement use.

FFS Normally Black Mode

FFS normally black display mode for stable notebook display performance.

350 Nits Brightness

350 cd/m² typical brightness with anti-glare surface treatment for clear indoor viewing.

OEM and Spare Parts Supply

Suitable for notebook replacement, repair, OEM projects, and LCD spare parts distribution.

Product Appearance and Detail View

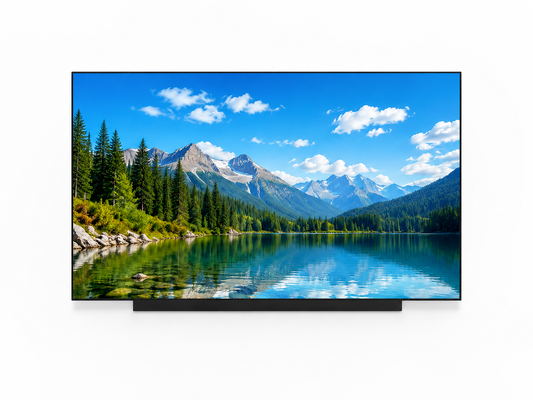

14 inch FHD eDP laptop LCD panel full view

Rear Structure View

Complete rear view for checking PCB area, connector position, outline structure, and installation direction.

30 pin eDP connector enlarged detail

Enlarged Connector Detail

Enlarged detail view for checking the 30 pin eDP connector position, PCB area, and matching requirements.

Technical Specifications


Model YVO1400VQE-Y1
Display Size 14.0 Inch
Resolution 1920 × 1080
Display Area 309.31(H) × 173.99(V) mm
Outline Size Without PCB 315.81±0.3(H) × 186.07±0.3(V) × 3.0 Max mm
Outline Size With PCB 315.81±0.3(H) × 193.95±0.5(V) × 3.0 Max mm
Brightness 300 cd/m² Min. / 350 cd/m² Typ.
Contrast Ratio 1000:1 Min. / 1200:1 Typ.
Viewing Angle 80° Min. / 89° Max.
Display Colors 16.7M, 6bit + 2FRC
Color Gamut 45% NTSC
Display Mode FFS, Normally Black
Signal Interface 2 Lane eDP 1.2
Connector LV03030-13100
Backlight Bottom edge side, 1 LED lighting bar type
Surface Treatment Anti-Glare
Operating Temperature 0 ~ 50°C
Storage Temperature -20 ~ 60°C
Weight 286 g Typ.

Compatibility Notice

Compatibility should be confirmed before ordering. Please check the original panel model, resolution, connector type, pin definition, connector position, outline size, thickness, and mounting structure. Our team can help match a suitable replacement model based on your original LCD panel part number. For non-laptop applications, compatibility should also be confirmed based on the mainboard eDP signal output and mechanical installation space.

Application Scenarios


Notebook PC screen replacement
Laptop repair and refurbishment projects
OEM notebook display assembly
Portable computing device integration
Embedded eDP display systems
Thin client and mini PC display integration
Education and office equipment display projects
LCD spare parts distribution and bulk supply

LCD Panel Supply and Model Matching Support

We support laptop LCD panels, TFT LCD modules, touch screens, Raspberry Pi displays, digital photo frames, HDMI-compatible LCD displays, driver boards, and related display products.

For laptop LCD panel projects, we can help match suitable models based on the original panel number, screen size, resolution, interface, connector position, outline size, brightness, and application requirements.

Quality Check Before Shipment

Products are checked before shipment based on the product type, including appearance, packaging, connector condition, basic display function, and when applicable, touch response and power input. For sample orders or project-based orders, we can also help confirm key specifications before shipment.

FAQ for Laptop LCD Panel Orders


How do I confirm compatibility?

Please send the original LCD panel model number, screen size, resolution, connector type, connector position, and clear photos of the front and rear side. We will help check whether this model or a suitable replacement can match your requirement.

Can you supply samples?

Yes, sample orders are available for model confirmation and project testing.

What information should I provide before ordering?

Please provide the original panel model, required quantity, application, delivery country, and any special requirements such as brightness, interface, connector position, or packaging.

Do you support bulk orders?

Yes, small-batch and bulk orders can be supported based on stock status, model availability, and project requirements.

Can you help match replacement models?

Yes, we can help recommend suitable LCD panel models based on the original screen model and key specifications.

Send Us Your LCD Panel Requirement

Please send us your original LCD panel model number, screen size, resolution, interface, connector position, required quantity, and application details.

Our team will help check model compatibility, stock availability, and suitable supply options.
