15.6 Inch FHD TFT LCD Module 1920x1080 30 Pin eDP Rear Folded Connector Laptop LCD Screen Anti Glare Notebook Display Panel

Products

15.6 Inch FHD TFT LCD Module 1920x1080 30 Pin eDP Rear Folded Connector Laptop LCD Screen Anti Glare Notebook Display Panel

MOQ:	500 pcs
Price:	$34 / Piece
Payment Method:	T/T

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

Certification

Model Number

YVO1560VQE-Y2

Product Description

15.6 Inch FHD eDP Laptop LCD Panel

1920×1080 resolution, 30 pin eDP interface, rear-folded connector structure, anti-glare surface, 350 nits brightness, and 65% NTSC color gamut for notebook PC replacement and OEM display projects.

Product Overview

YVO1560VQE-Y2 is a 15.6 inch Full HD TFT LCD panel suitable for notebook screen replacement, OEM laptop assembly, repair projects, and LCD spare parts supply. It features 1920×1080 resolution, eDP1.2 interface, normally black display mode, rear-folded connector structure, anti-glare surface treatment, 350 cd/m² typical brightness, and 65% NTSC typical color gamut for better notebook display performance.

This model is mainly used for compatible 15.6 inch FHD notebook applications, and can also be evaluated for selected embedded eDP display projects when the mainboard signal output and mechanical structure are suitable. For replacement or project use, compatibility should be confirmed based on the original panel model, connector type, pin definition, connector position, rear-folded connector structure, outline size, thickness, and mounting structure.

Key Features

15.6 Inch Full HD Display

1920×1080 resolution for notebook PC screen replacement and OEM display projects.

eDP1.2 Interface

eDP1.2 signal interface for compatible notebook LCD panel applications and OEM integration projects.

30 Pin eDP Connector

30 pin eDP connector layout with 300E30-1010RC-G3 connector type for project matching and replacement use.

Rear-Folded Connector Structure

Rear-folded connector design for matching specific notebook LCD installation structures and cable routing requirements.

350 Nits Brightness

350 cd/m² typical brightness with anti-glare surface treatment for clear indoor viewing.

65% NTSC Color Gamut

65% NTSC typical color gamut for better color performance in notebook display applications.

Product Appearance and Detail View

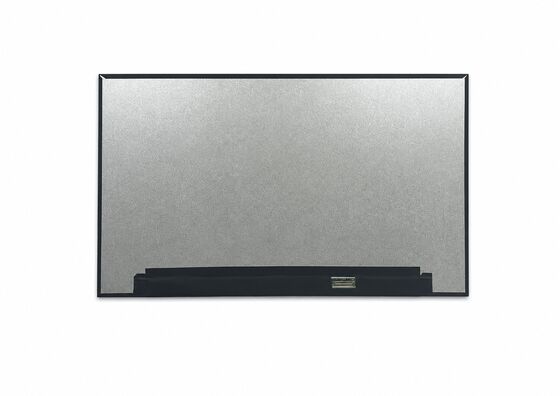

Rear-Folded Structure View

Complete rear view for checking the rear-folded connector structure, PCB area, connector position, outline structure, and installation direction.

Enlarged Connector Detail

Enlarged detail view for checking the 30 pin eDP connector position, PCB area, and matching requirements.

Technical Specifications

Model	YVO1560VQE-Y2
Display Size	15.6 Inch
Resolution	1920 × 1080
Active Area	344.16(H) × 193.59(V) mm
Outline Dimension	350.6(Typ.) × 205.17(Typ.) × 3.0 Max mm
Pixel Pitch	0.1793 × 0.1793 mm
Pixel Arrangement	RGB Vertical Stripe
Brightness	300 cd/m² Min. / 350 cd/m² Typ.
Contrast Ratio	1000:1 Min. / 1200:1 Typ.
Response Time	20 ms Typ. / 25 ms Max.
Display Colors	16.7M, 6bit + HFRC
Color Gamut	65% NTSC Typ.
Display Mode	Normally Black
Signal Interface	eDP1.2
Connector Type	300E30-1010RC-G3
Structure Type	Rear-Folded Connector Structure
Input Voltage	3.3V Typ.
Power Consumption	750 mW Max. @ Mosaic pattern, FV=60Hz
Surface Treatment	AG Anti-Glare
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 60°C
RoHS	Compatible

Compatibility Notice

Compatibility should be confirmed before ordering. Please check the original LCD panel model, resolution, connector type, pin definition, connector position, rear-folded connector structure, outline size, thickness, and mounting structure. Our team can help match a suitable replacement model based on your original LCD panel part number. For non-laptop applications, compatibility should also be confirmed based on the mainboard eDP signal output and mechanical installation space.

Application Scenarios

Notebook PC screen replacement

Laptop repair and refurbishment projects

OEM notebook display assembly

15.6 inch FHD notebook display projects

Portable computing device integration

Embedded eDP display systems

Education and office equipment display projects

LCD spare parts distribution and bulk supply

LCD Panel Supply and Model Matching Support

We support laptop LCD panels, TFT LCD modules, touch screens, Raspberry Pi displays, digital photo frames, HDMI-compatible LCD displays, driver boards, and related display products.

For laptop LCD panel projects, we can help match suitable models based on the original panel number, screen size, resolution, interface, connector position, outline size, brightness, structure type, and application requirements.

Quality Check Before Shipment

Products are checked before shipment based on the product type, including appearance, packaging, connector condition, basic display function, and when applicable, touch response and power input. For sample orders or project-based orders, we can also help confirm key specifications before shipment.

FAQ for Laptop LCD Panel Orders

How do I confirm compatibility?

Please send the original LCD panel model number, screen size, resolution, connector type, connector position, rear structure type, and clear photos of the front and rear side. We will help check whether this model or a suitable replacement can match your requirement.

Can you supply samples?

Yes, sample orders are available for model confirmation and project testing.

What information should I provide before ordering?

Please provide the original panel model, required quantity, application, delivery country, and any special requirements such as brightness, interface, connector position, rear-folded structure, or packaging.

Do you support bulk orders?

Yes, small-batch and bulk orders can be supported based on stock status, model availability, and project requirements.

Can you help match replacement models?

Yes, we can help recommend suitable LCD panel models based on the original screen model and key specifications.

Send Us Your LCD Panel Requirement

Please send us your original LCD panel model number, screen size, resolution, interface, connector position, rear structure type, required quantity, and application details.

Our team will help check model compatibility, stock availability, and suitable supply options.
