| Brand Name: | YZY |
| Model Number: | YVO1400VQE-Y2 |
| MOQ: | 500 pcs |
| Price: | $33 / Piece |
| Payment Terms: | T/T |
1920×1080 resolution, 30 pin 2-lane eDP1.2 interface, rear-folded connector structure, anti-glare surface, and 350 nits typical brightness for compatible notebook and OEM display projects.

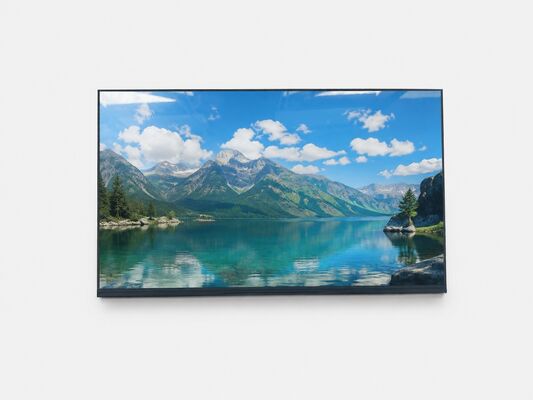

YVO1400VQE-Y2 is a 14.0 inch Full HD TFT LCD module designed for compatible notebook screen replacement, laptop repair, OEM notebook assembly, and LCD spare parts supply. It features 1920×1080 resolution, 2-lane eDP1.2 interface, FFS normally black display mode, rear-folded connector structure, anti-glare surface treatment, and 350 cd/m² typical brightness.
The rear-folded PCB structure keeps the connector and PCB behind the LCD panel, making it suitable for notebook designs that require this specific mechanical layout. It may also be evaluated for selected embedded eDP display projects when the mainboard signal output, connector definition, and installation space are suitable.
The standard version provides 45% NTSC color gamut. Higher color gamut options can be evaluated based on the target specification, project quantity, and sample confirmation. Compatibility must be confirmed according to the original LCD model, resolution, connector position, pin definition, rear-folded structure, outline dimensions, thickness, and mounting method.
1920×1080 resolution for compatible notebook screens, laptop repair, and OEM display applications.
Two-lane eDP interface with a 2.7 Gbps link rate for compatible notebook display systems.
Rear-folded PCB and 30 pin eDP connector structure for matching specific notebook installation requirements.
300 cd/m² minimum and 350 cd/m² typical brightness for standard indoor notebook applications.
FFS normally black display mode with wide viewing angles and stable notebook display performance.
Higher color gamut versions can be evaluated based on project specifications, quantity, and sample approval.
Rear view for checking the folded PCB structure, connector position, outline size, and installation direction.
Enlarged view for checking the 30 pin eDP connector, PCB area, insertion direction, and cable matching requirements.
| Model | YVO1400VQE-Y2 |
| Display Size | 14.0 Inch |
| Resolution | 1920 × 1080 |
| Active Area | 309.31(H) × 173.99(V) mm |
| Outline Size Without PCB | 315.81 ± 0.3(H) × 186.07 ± 0.3(V) × 3.0 Max. mm |
| Outline Size With PCB | 315.81 ± 0.3(H) × 186.07 ± 0.3(V) × 5.2 Max. mm |
| Pixel Pitch | 0.1611 × 0.1611 mm |
| Display Mode | FFS, Normally Black |
| Brightness | 300 cd/m² Min. / 350 cd/m² Typ. |
| Luminance Uniformity | 75% Min. / 80% Typ. |
| Contrast Ratio | 1000:1 Min. / 1200:1 Typ. |
| Response Time | 30 ms Typ. / 35 ms Max. |
| Viewing Angle | 80° Min. / 89° Max., All Directions |
| Display Colors | 16.7M, 6bit + 2FRC |
| Color Gamut | 45% NTSC |
| Signal Interface | 2-Lane eDP1.2, 2.7 Gbps |
| Connector | 30 Pin eDP, LV03030-13100 |
| Structure Type | Rear-Folded Connector Structure |
| Backlight | Bottom Edge, Single LED Lighting Bar |
| Surface Treatment | AG Anti-Glare |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -20 ~ 60°C |
| Weight | 285 g Typ. |
| Environmental Compliance | RoHS Compliant and Halogen Free |
Compatibility should be confirmed before ordering. Please check the original LCD model, resolution, connector type, pin definition, connector position, rear-folded connector structure, outline dimensions, thickness, and mounting method. For non-laptop applications, compatibility must also be confirmed according to the mainboard eDP signal output and available installation space.
We support laptop LCD screens, TFT LCD modules, touch screens, Raspberry Pi displays, HDMI-compatible LCD displays, driver boards, and related display products.
For laptop LCD projects, we can help check suitable models based on the original panel number, screen size, resolution, interface, connector position, outline size, brightness, structure type, and application requirements.
Products are checked before shipment according to the confirmed model and order requirements, including appearance, packaging, connector condition, basic display function, brightness version, and structure type.
Please send the original LCD model number, screen size, resolution, connector position, structure type, and clear photos of the original screen label and rear side.
Yes, sample orders are available for model confirmation and project testing.
Higher color gamut options can be evaluated according to the target specification, project quantity, MOQ, and sample validation requirements.
Please provide the original LCD model, required quantity, application, delivery country, connector position, structure type, and any special packaging requirements.
Yes, we can recommend a suitable LCD screen based on the original panel model and key electrical and mechanical specifications.
Please send us the original LCD model number, screen size, resolution, interface, connector position, structure type, required quantity, and application details.
Our team will help check compatibility, model availability, customization feasibility, and suitable supply options.
