| Brand Name: | YZY |
| Model Number: | YVO020QVGA-X01 |
| MOQ: | 500 pieces |
| Price: | $3.57-5.12/piece |
| Payment Terms: | T/T |
| Supply Ability: | 10000Pieces |
170RGB×320 full color resolution, 10Pin FPC parallel interface, NV3030A driver IC, 4 parallel LED backlight with 3.2V voltage, ultra thin 2.1mm thickness, -20~70℃ operating temp for industrial meters, IoT and handheld embedded devices.

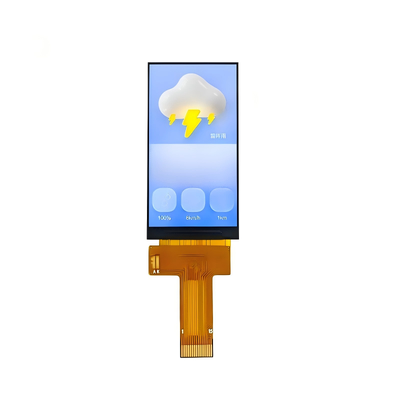

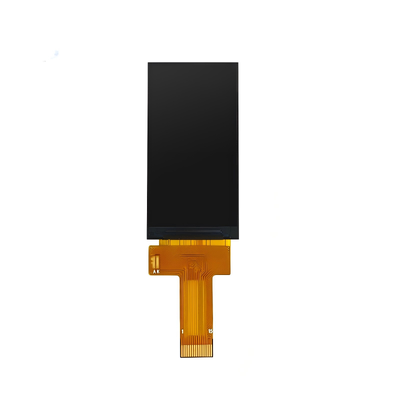

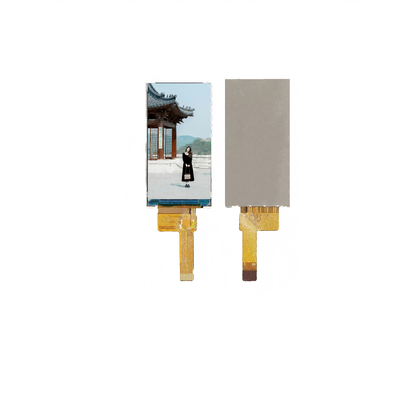

YVO020QVGA-X01 is a 1.97-inch amorphous silicon IPS TFT LCD module built with NV3030A integrated driver chip and standard 10Pin FPC flexible connector. This small-size color display is widely applied in industrial instruments, smart IoT terminals, wearable gadgets and portable medical handheld equipment.
The screen adopts Normally Black panel with 80° full-direction viewing angle (CR>10), industrial grade wide temperature range from -20℃ operation to -30℃ storage. Equipped with 4 parallel LED backlight circuit, typical 3.2V backlight voltage and 80mA working current, it maintains stable display performance under high and low temperature long-time aging test.
Before bulk purchase or sample testing, verify core matching parameters including 10Pin FPC pin definition, 2.8~3.3V VDD logic supply, 3.2V LED voltage, overall 25.80×49.72×2.1mm ultra thin dimension to avoid incompatibility with MCU and embedded control boards.
170 horizontal × 320 vertical RGB pixels, 22.70(W)×42.72mm active viewing area, clear small text and icon presentation.
Built-in dedicated NV3030A control IC, stable parallel RGB signal parsing, simple peripheral circuit for fast MCU secondary development.
Complete 10 signal pins: SDA, SCL, RS, RST, CS, TE, VDD, LEDK, LEDA, GND for easy circuit wiring.
4pcs parallel LED light bar, typical 3.2V voltage and 80mA working current, flicker-free even brightness output.
Compact outline size 25.80×49.72×2.1mm, fit narrow and mini device structural design.
Wide VDD power supply range compatible with most single-chip MCU and embedded control circuits.
IPS panel with 80° horizontal & vertical viewing angle (CR>10), consistent color from all observation angles.
-20℃ operation / -30℃ storage temperature, pass 96h high & low temperature continuous aging test.
| Model Part No. | YVO020QVGA-X01 |
| Diagonal Size | 1.97 Inch |
| Native Resolution | 170×320 |
| Active View Area | 22.70(W) × 42.72(V) mm |

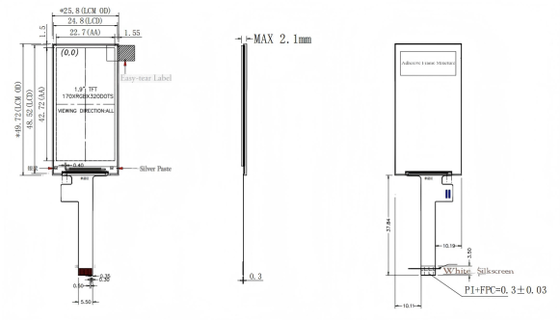

| Outer Overall Dimension | 25.80(W) × 49.72(V) × 2.1 mm |
| Pixel Pitch | 0.153 × 0.153 mm |
| Pixel Layout | RGB Vertical Stripe |
| Display Panel Type | IPS Wide View Angle |
| Driver IC Model | NV3030A |
| Display Mode | Normally Black |
| View Angle (CR≥10) | 80° All Directions |
| Video Interface Type | Parallel RGB Interface |
| FPC Pin Count | 10 Pin |
| Logic Supply VDD | 2.8V Min / 3.3V Max |
| Backlight Structure | 4 Parallel LEDS |
| Backlight Typical Voltage | 3.2V (±0.2V) |
| Backlight Typical Current | 80 mA |
| LEDK Backlight Pin Level | 0V GND |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Humidity Storage Condition | 60℃ 90%RH Non-Condensing |
| Compliance Standard | RoHS Compliant |
All matching parameters must be fully verified before placing purchase orders. Please cross-check original screen model, 170*320 RGB resolution, 10Pin FPC pin assignment, 2.8~3.3V logic VDD, 3.2V LED voltage, 4 parallel LED structure and ultra thin 2.1mm thickness. For MCU parallel RGB driver boards, confirm SDA & SCL signal voltage level to eliminate screen flicker. Strictly follow official power on/off timing sequence specified in datasheet to avoid screen abnormal display or permanent hardware damage under extreme temperature environment.
We supply full series small-size TFT screens from 0.96" to 3.5", industrial wide temp IPS variants, matching MCU RGB driver boards, customizable FPC length, all screens pass complete high-low temperature aging test before delivery.
For 1.97 inch 170×320 IPS screen matching, provide original model, resolution, FPC pin count, brightness and temperature demand, our engineering team will filter compatible panels and provide official datasheet for project evaluation. Mass orders support backlight and FPC customization consultation.
Each YVO020QVGA-X01 TFT module undergoes strict AQL outgoing inspection: polarizer scratch & stain test, dead/bright pixel detection, mura & light leakage check, backlight uniformity test, RGB signal stability, high-low temperature cycling and FPC connector integrity test. Third-party factory inspection can be arranged for bulk order customers.
Please send the original LCD model number, screen size, resolution, connector type, connector position, structure type, and clear photos of the front and rear sides. We will help check whether this model or a suitable replacement can match your requirement.
Yes, sample orders are available for model confirmation and project testing.
Please provide the original panel model, required quantity, application, delivery country, and any special requirements such as brightness, interface, connector position, straight connector structure, or packaging.
Yes, small-batch and bulk orders can be supported based on stock status, model availability, and project requirements.
Yes, we can help recommend suitable LCD module models based on the original screen model and key electrical and mechanical specifications.
Kindly provide us your original LCD model number, screen size, resolution, interface, connector position, structure type, brightness, target color gamut, required quantity, and application details.
Our display technical team will complete compatibility verification quickly, confirm customization feasibility, check stock lead time and offer competitive sample & bulk unit prices with full official datasheet attached.
