2.86 Inch Bar TFT LCD Module TB028-I3004S37A-00 376×960 MIPI 30Pin 750nits Industrial Display

This 2.86-inch slim long strip a-Si TFT LCD panel adopts vertical RGB pixel arrangement, 376(H)×960(V) resolution and 30Pin MIPI differential FPC interface, with 4 parallel LED backlight circuit. It delivers typical 750 cd/m² brightness and 1500:1 contrast ratio, supports -20℃ to 70℃ operating & storage temperature, passes full temperature and humidity reliability tests, widely used for automotive dashboards, household appliances, industrial control strips and embedded smart devices.

• Slim long stretched bar 2.86 inch TFT screen with 376×960 vertical RGB high resolution
• 30Pin standard MIPI differential FPC interface, 3.3V stable logic power supply
• 4 parallel LED backlight with 80mA typical current, uniform flicker-free brightness
• 750 cd/m² ultra high brightness, clear display under strong ambient light
• 1500:1 high contrast ratio, deep black and sharp graphic performance
• 85° full horizontal & vertical viewing angle with consistent color rendering
• 55.1% NTSC gamut, support 16.7 million rich display colors
• Ultra thin 2.45mm total thickness, compact strip outline for narrow equipment structure
• Industrial wide temperature grade, stable operation -20℃ ~ 70℃
• Pass 72h high / low temp and high humidity aging reliability test
• Normally Black panel, low light leakage for meter & indicator UI design
• Complete 30Pin pinout with reset, clock, data, backlight anode & cathode pins
• AQL full outgoing inspection including dot defect, mura, light leakage test

• Automotive instrument long bar indicator displays
• Household appliance control strip touchless screens
• Industrial equipment running status indicator panels
• Vending machine & smart locker UI strip LCDs
• Handheld medical device parameter display modules
• Embedded ARM & MCU control system screens
• Smart home control panel narrow displays
• Small-sized custom bar screen bulk OEM projects

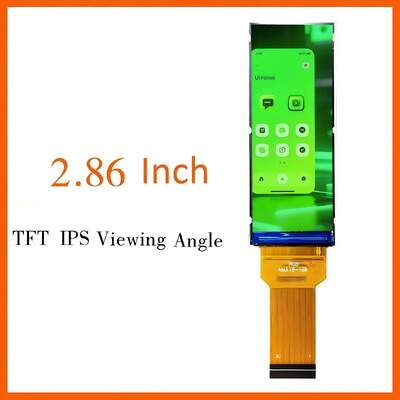

Product image

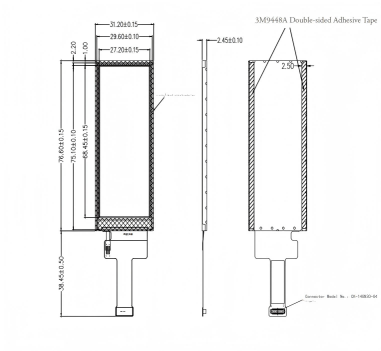

Product Drawing

Optical luminance & viewing angle test layout

Tr+Tf response time waveform chart

Factory reliability testing process

Full Size LCD Supply: We provide complete series small-size & stretched bar TFT LCD modules, MIPI/RGB interface industrial screens, touch integrated displays, matching driver boards, supporting mass OEM & customized development.

Cost-Effective Bulk Price: Stable raw material supply chain, support sample trial, small batch and large volume industrial orders with flexible quotation.

Strict Quality Inspection: Every display passes full visual, electrical and high-low temperature aging test before shipment, screen dot, mura, flicker and backlight uniformity fully inspected.

Professional Technical Support: Display engineering team verifies compatibility based on your mechanical size, interface, brightness and temperature requirements, provide official datasheet for project design.
