| Brand Name: | BOE |
| Model Number: | DV175WUM-N10 |
| MOQ: | 500 pcs |
| Price: | $69.99-149.99 / Piece |
| Payment Terms: | T/T |
1920×1200 resolution, 30 pin eDP interface, 250 nits typical brightness, slim 3.2 mm profile, and 16:10 display format for OEM and embedded display projects.
DV175WUM-N10 is a 17.5 inch WUXGA TFT LCD panel featuring 1920×1200 resolution, a 16:10 aspect ratio, 30 pin eDP interface, IPS normally black display mode, and 250 cd/m² typical brightness.
With an active display area of 376.9344 × 235.584 mm and a slim 3.2 mm panel profile, this model can be evaluated for OEM display integration, embedded display systems, industrial control equipment, panel PCs, kiosks, and other projects requiring a 17.5 inch WUXGA eDP screen.
Compatibility should be confirmed according to the original panel model, resolution, eDP interface, connector position, outline dimensions, power requirements, and mechanical installation space before ordering.
1920×1200 resolution with a 16:10 display format for applications requiring more vertical workspace than standard Full HD.
30 pin eDP signal interface for compatible embedded systems, control equipment, and OEM display designs.
250 cd/m² typical brightness for standard indoor display applications.
IPS normally black display mode for stable image performance and wide viewing characteristics.
Slim panel structure with 392.15 × 252.75 × 3.2 mm overall dimensions for space-conscious integration.
Touch screen options can be evaluated according to project structure, quantity, and application requirements.

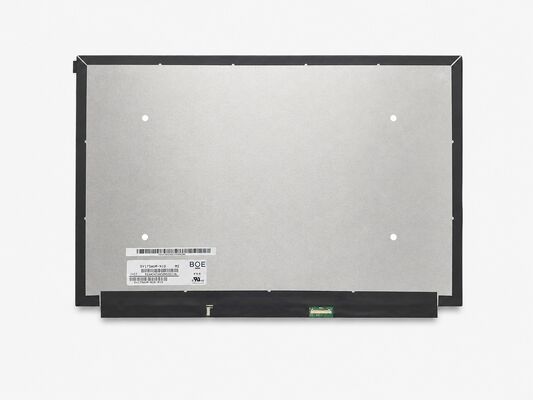

Full product view for checking the panel outline, rear structure, connector location, and installation direction.
Detailed view for checking the eDP connector position, cable direction, and mechanical matching requirements.
| Model | DV175WUM-N10 |
| Panel Brand | BOE |
| Display Size | 17.5 Inch |
| Resolution | 1920 × 1200 WUXGA |
| Aspect Ratio | 16:10 |
| Active Area | 376.9344(W) × 235.584(H) mm |
| Outline Dimension | 392.15(W) × 252.75(H) × 3.2(T) mm |
| Brightness | 250 cd/m² Typ. |
| Display Mode | IPS, Normally Black |
| Signal Interface | eDP |
| Connector | 30 Pin |
| Backlight Lifetime | 30,000 Hours Min. |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -20 ~ 60°C |
| Touch Option | Optional, subject to project confirmation |
The same screen size and resolution do not automatically guarantee compatibility. Please confirm the original panel model, eDP interface, connector position, outline dimensions, power requirements, cable direction, and mechanical installation space before ordering. For replacement projects, sending the original LCD model number and rear-side photos is recommended.
We support TFT LCD panels and display modules for replacement, OEM integration, embedded display systems, and project-based applications.
If DV175WUM-N10 does not match your mechanical or electrical requirements, please send the original panel model, required size, resolution, interface, brightness, quantity, and application. We can help check suitable alternatives.
Product condition, connector appearance, panel surface, packaging, and basic display function can be checked according to the confirmed model and order requirements before shipment.
Please send the original LCD model number, connector information, required resolution, application, and clear photos of the original panel label and rear side.
Sample availability can be confirmed according to current model availability and project requirements.
Touch solutions can be evaluated according to the required cover size, touch type, mechanical structure, and project quantity.
Yes. Please provide the original panel model and key electrical and mechanical requirements so that we can check suitable options.
Please provide the required quantity, application, delivery country, original panel model, interface, brightness requirement, and any special mechanical or touch requirements.
Please send us your required screen size, resolution, interface, brightness, original panel model, quantity, and application details.
Our team will help check model compatibility, availability, touch options, and suitable display solutions.
