| Brand Name: | Samsung |
| Model Number: | ATNA33AA01-0 |
| MOQ: | 500 pcs |
| Price: | $108.99 / Piece |
| Payment Terms: | T/T |
WQXGA+ 2880×1800 resolution, 400 nits typical brightness, 100% DCI-P3 color gamut, eDP1.4b interface, and fast 1 ms response time for compatible notebook, tablet, and OEM display projects.
ATNA33AA01-0 is a 13.3 inch AMOLED display module with 2880×1800 WQXGA+ resolution and a 16:10 aspect ratio. The module uses LTPS TFT active matrix technology and can display up to 1.074 billion colors with RGB 8bit + 2FRC color depth.
With 400 cd/m² typical brightness, 100% DCI-P3 typical color gamut, high contrast performance, and 1 ms typical response time, this model is suitable for compatible high-resolution notebook and tablet display applications requiring strong color performance and fast image response.
The module uses an eDP1.4b interface and a 40-pin Hirose KN38A-40S connector. This version does not include an integrated touch panel. Compatibility should be confirmed according to the original panel model, interface, connector, power requirements, outline dimensions, and mechanical installation structure before ordering.
AMOLED display technology with self-emissive pixels for high contrast and fast image response.
2880×1800 resolution with a 16:10 aspect ratio and 285.984 × 178.740 mm active display area.
100% DCI-P3 typical color gamut for projects requiring wider and more vivid color reproduction.
352 cd/m² minimum and 400 cd/m² typical brightness under the specified white-mode test condition.
1 ms typical response time for fast-moving image and high-performance display applications.
eDP1.4b interface with 5.4 Gbps typical link speed and 60 Hz typical frame frequency.

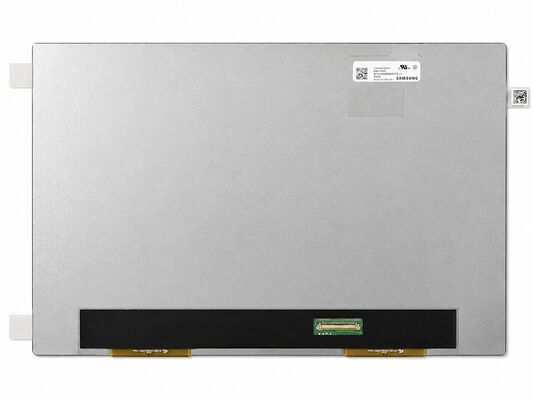

Rear-side view for checking the module structure, PCB area, connector position, and installation direction.
Enlarged detail for checking the 40-pin eDP connector position and cable matching requirements.
| Model | ATNA33AA01-0 |
| Manufacturer | Samsung Display |
| Display Size | 13.3 Inch |
| Display Technology | AMOLED, LTPS TFT Active Matrix |
| Resolution | 2880 × 1800 WQXGA+ |
| Aspect Ratio | 16:10 |
| Active Area | 285.984(H) × 178.740(V) mm |
| Module Width | 289.18 mm Typ. |
| Module Height | 187.77 mm Max. |
| Panel Area Depth | 1.157 mm |
| PCB Area Depth | 3.166 mm Max. |
| Brightness | 352 cd/m² Min. / 400 cd/m² Typ. / 448 cd/m² Max. |
| Color Gamut | 90% Min. / 100% Typ. DCI-P3 |
| Display Colors | 1.074 Billion, RGB 8bit + 2FRC |
| Pixel Arrangement | RGB Stripe |
| Pixel Pitch | 99.3 × 99.3 μm |
| Contrast Ratio | 1,000:1 Min. / 100,000:1 Typ. |
| Response Time | 1 ms Typ. |
| Viewing Angle | Over 175° |
| Surface Treatment | Glare |
| Signal Interface | eDP1.4b |
| eDP Speed | 5.4 Gbps Typ. |
| Frame Frequency | 60 Hz Typ. |
| Connector | 40 Pin, Hirose KN38A-40S |
| Touch Panel | Not Integrated |
| Weight | 150 g Max. |
| Operating Temperature | -20 ~ 70°C |
| Storage Temperature | -40 ~ 85°C |
| Environmental Requirement | Pb Free, Halogen Free |
AMOLED display modules should be matched according to the original panel model and complete electrical and mechanical specifications. The same screen size and resolution do not guarantee compatibility. Please confirm the 40-pin connector, eDP interface, power requirements, connector position, module dimensions, PCB structure, and installation space before ordering.
We support OLED display modules, TFT LCD panels, laptop screens, touch displays, driver boards, and related display products for replacement, OEM, and project-based applications.
For OLED display projects, please provide the original panel model, required resolution, interface, connector position, quantity, and application. We can help check model compatibility and suitable supply options.
Products can be checked according to the confirmed model and order requirements, including display appearance, connector condition, panel surface, packaging, and basic display function before shipment.
No. The specification lists TSP as not applicable, so this version does not include an integrated touch panel.
Please send the original display model, connector information, interface, device model, and clear photos of the original display label and rear structure.
Sample availability can be confirmed according to current stock and project requirements.
No. Compatibility depends on the original panel model, resolution, eDP interface, connector, power design, mechanical dimensions, and installation structure.
Please provide the original panel model, required quantity, device or application, delivery country, and any special electrical or mechanical requirements.
Please send us the original display model, screen size, resolution, interface, connector, required quantity, and application details.
Our team will help check model compatibility, availability, and suitable OLED display options.
