| Brand Name: | YZY |
| Model Number: | YVT0686JSM-S1 |
| MOQ: | 500 |
| Price: | $8.9-11.12/pieces |
| Payment Terms: | T/T |
| Supply Ability: | 10000pieces |

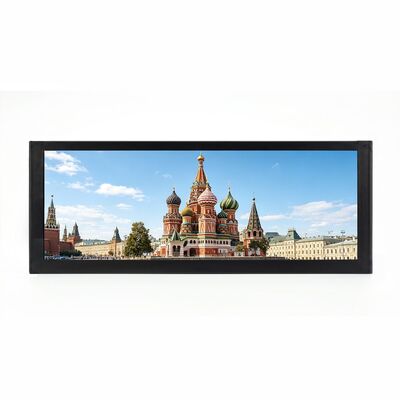

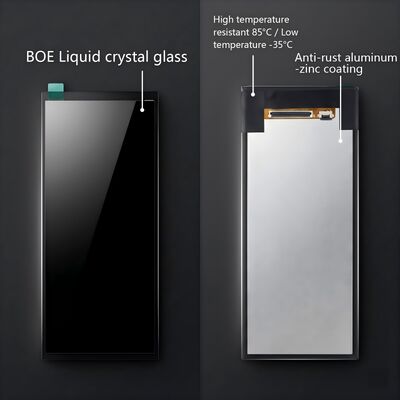

YZY 6.86 Inch TFT LCD Module 480×1280 MIPI Interface 650 Nits 1200:1 Contrast Capacitive Touch Screen Wide Viewing Angle Industrial Display (YVT0686JSM-S1)
|
YVT0686JSM-S1 — 6.86 Inch 480×1280 MIPI TFT LCD Module with Capacitive Touch
|
|
|
Parameter
|
Value
|
|
Customer Model No.
|
YVT0686JSM-S1
|
|
Module No. / Part Number
|
SH068ZJWD65L-04TFL-68610-00-ZC
|
|
LCD Type
|
a-Si TFT-LCD, Normally Black, Transmissive
|
|
Display Size
|
6.86 Inch Diagonal (Portrait orientation)
|
|
Resolution
|
480 × 1280 dots (480×RGB×1280)
|
|
Display Colors
|
16.7M (24-bit RGB)
|
|
Pixel Configuration
|
RGB Vertical Stripe
|
|
Pixel Pitch
|
0.1254 × 0.1254 mm
|
|
Active Area (W × H)
|
60.19 × 160.51 mm
|
|
Outline Dimension (W × H × T)
|
67.5 × 176.7 × 5.8 mm (with CTP & cover glass)
|
|
Brightness (Typ.)
|
650 cd/m² (nits)
|
|
Contrast Ratio (Typ.)
|
1200 : 1
|
|
Luminance Uniformity (Min./Typ.)
|
75% / 80%
|
|
Viewing Angle (Cr≥10)
|
85° all directions (Left/Right/Up/Down, ALL O'Clock)
|
|
Response Time (Typ./Max)
|
25 ms / 35 ms (Tr+Tf)
|
|
Color Gamut
|
65% (Min.) / 70% (Typ.)
|
|
Interface Type
|
MIPI DSI 4-Lane (D-PHY), 40-pin FPC
|
|
Touch Support
|
Integrated capacitive touch panel (CTP), I2C interface (6-pin)
|
|
Cover Glass
|
2.5D cover glass, 1.1mm thickness
|
|
Logic Power Supply (DVDD)
|
3.3V (Typ.), 3.0V ~ 3.6V
|
|
Analog Power Supply (AVDD)
|
9.6V (Typ.), 9.3V ~ 9.9V
|
|
Gate Voltage (VGH/VGL)
|
VGH 15V (Typ.), VGL -12V (Typ.)
|
|
Backlight Type
|
12 pcs White LED (3-series × 4-parallel)
|
|
Backlight Voltage (Typ.)
|
9.3V (8.3V ~ 10.2V)
|
|
Backlight Current (Typ.)
|
160 mA (40mA per string)
|
|
LED Life Time
|
30,000 hours (Min.)
|
|
Operating Temperature
|
-20°C ~ +70°C
|
|
Storage Temperature
|
-30°C ~ +80°C
|
|
Viewing Direction
|
ALL O'Clock (FREE, wide viewing angle)
|
|
Compliance
|
RoHS
|
|
Frequently Asked Questions (FAQ)
|
|
Q1: What is the lead time for the YVT0686JSM-S1 6.86-inch 480×1280 TFT LCD module?
A: Standard samples ship within 3-5 working days. Bulk orders typically take 15-25 working days depending on quantity and customization requirements. |
|
Q2: What is the resolution and orientation of this 6.86 inch TFT LCD display?
A: This YVT0686JSM-S1 module features 480×1280 resolution in portrait (vertical) orientation, providing a tall and narrow display ideal for handheld devices, smart controllers, and vertical HMI applications. |
|
Q3: What interface does this 6.86 inch TFT LCD module use?
A: This module uses a MIPI DSI 4-lane (D-PHY) interface on a 40-pin FPC connector. It supports high-speed serial data transmission with 4 data lanes and 1 clock lane, compatible with most ARM, Raspberry Pi, and embedded processors that support MIPI DSI output. |
|
Q4: Does this 480×1280 TFT display support a touch screen?
A: Yes! This module comes with an integrated capacitive touch panel (CTP) and 2.5D cover glass. The touch interface uses I2C communication via a 6-pin connector (TP_RESET, TP_INT, TP_SDA, TP_SCL), supporting multi-touch gestures for intuitive user interaction. |
|
Q5: What are the backlight specifications for this 6.86 inch module?
A: The backlight consists of 12 white LEDs arranged in 3-series × 4-parallel configuration. Typical backlight voltage is 9.3V (range 8.3V~10.2V) and current is 160mA (40mA per string). LED lifetime is minimum 30,000 hours. |
|
Q6: What are the brightness and contrast ratio of this display?
A: This module offers 650 nits typical brightness and 1200:1 typical contrast ratio (minimum 1000:1), with 85° wide viewing angle in all directions and 65%-70% color gamut, delivering vibrant and clear visuals. |
|
Q7: What applications is this 6.86 inch 480×1280 TFT LCD suitable for?
A: Ideal for handheld instruments, smart home controllers, industrial HMI, medical devices, POS terminals, IoT devices, automotive displays, and any application requiring a compact portrait-oriented display with capacitive touch and MIPI interface. |
|
Q8: Do you offer customization and what is the warranty policy?
A: Yes. We support customized brightness, FPC cable length and shape, backlight voltage, viewing direction, touch panel configuration, and cover glass (AG/AR/AF). MOQ applies for custom versions. All modules come with a 12-month warranty and lifetime technical support. |
