2.4 Inch IPS TFT LCD Display 222*480 ST7365P 3SPI+18RGB Screen Module, 262K Colors White LED Backlight‑20~+70℃ Operating Temperature

YVT024HV‑C01 2.4 Inch IPS TFT LCD Module

Normally‑Black | 222(RGB)×480 | ST7365P | 3SPI+18RGB | RoHS Compliant

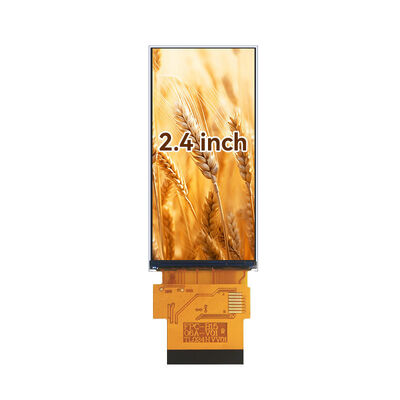

📷 Product Main Image

2.4 Inch IPS TFT LCD Display Module

📋 Product Overview

This is a 2.4‑inch IPS TFT‑LCD display module with Normally‑Black mode, resolution 222(RGB) × 480 Pixels. Driver IC is ST7365P, supports 3SPI + 18‑bit RGB interface, 262K display colors and white LED backlight.

Wide operating temperature: ‑20℃ ~ +70℃, ideal for industrial control, handheld devices, instruments and portable terminals.

🔧 General Specifications

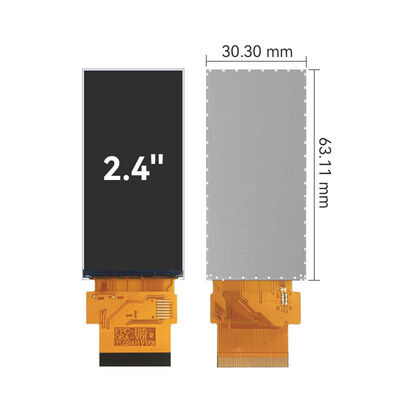

📐 Mechanical Drawing

✨ Optical Characteristics

🛡️ Reliability Test

• High‑temperature Storage: 80℃, 96H
• Low‑temperature Storage: ‑30℃, 96H
• High‑temp Operation: 70℃,96H
• Low‑temp Operation: ‑20℃,96H
• High Temp & Humidity: 60℃ / 90%RH,96H(No condensation)
• Thermal Shock:‑20℃ ~ +70℃,10 cycles
• ESD Air Discharge: ±2KV

🎯 Application

Suitable for industrial handheld device, measuring instrument, smart home equipment, portable terminal, medical auxiliary equipment and other small‑size display solutions.

🖼️ Application Scenario Image

2.4 Inch Display Solution

Note: Model: YVT024HV‑C01, Version V1.0. Customization available: FPC modification, brightness adjustment and other custom requirements are acceptable.

If you have any needs, please feel free to contact us in time.
