| Brand Name: | YZY |
| Model Number: | YVO037VG-C01 |
| MOQ: | 500pieces |
| Price: | $11.5–13.5 / Piece |
| Payment Terms: | T/T |
3.7 Inch TFT LCD Module | 240(RGB) × 960 | AXS15231
Product Image
YVO037VG‑C01 is a 3.7‑inch Normally‑Black TFT‑LCD display module with 240(RGB) × 960 resolution, driven by AXS15231 IC. It supports SPI + 18‑bit RGB interface, 262K display colors and white LED backlight, making it suitable for industrial handheld devices, measuring instruments and portable terminals.
| LCD Size | 3.7 inch |
| Resolution | 240×960 |
| Display Mode | Normally Black |
| Driver IC | AXS15231 |
| Interface | SPI+18RGB |
| Luminance | 300 cd/m² |
| Contrast Ratio | 1500 |
| View Angle | 80°/80°/80°/80° |
| Response Time | 25 ms |
| NTSC | 59% |
| Backlight | White LED |
| Forward Current | 20mA(Typ.) |
| Forward Voltage | 12.8V(Typ.) |
| LED Lifetime | 20000 Hours |
| IOVCC | 1.65V~3.6V |
| VCI | 3.0V~3.6V |
| Operating Temp | ‑20℃~+70℃ |
| Storage Temp | ‑30℃~+80℃ |

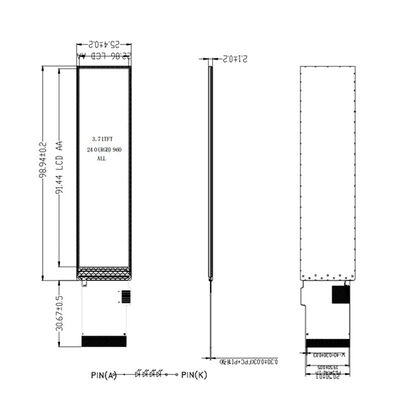

FPC Interface / Backlight / Display Panel Detail
Model: YVO037VG‑C01 | Version V1.0
Customization available: FPC modification, brightness adjustment and other custom requirements are acceptable.
If you have any needs, please feel free to contact us in time.
