Bar‑Type Normally‑Black Industrial LCM | 320(RGB)×960 | ST7701S | 3SPI+18BIT
📷 PRODUCT MAIN IMAGE
4.6" Bar‑Shape Normally‑Black TFT LCD Display
YVO046QV‑C01 is a 4.6‑inch bar‑type Normally‑Black TFT‑LCD module with vertical resolution 320(RGB) × 960 pixels.
Equipped with ST7701S driver IC, it supports hybrid 3SPI + 18‑bit RGB interface, 262K display colors and white LED backlight.
Excellent environmental adaptability with operating temperature ‑20℃ ~ +70℃. Ideal choice for industrial handheld equipment, instrument panels and compact embedded projects.
| Item | Specification |
|---|---|
| LCD Size | 4.6 inch |
| Display Mode | Normally Black |
| Resolution | 320(RGB) × 960 Pixel |
| Pixel Arrangement | RGB Vertical Stripe |
| Viewing Direction | ALL Full View Angle |
| Driver IC | ST7701S |
| Interface | 3SPI + 18‑bit RGB |
| Display Colors | 262K |
| Backlight | White LED |
| Active AA Area | 36.77 × 110.30 mm |
| Module Outline | 41.57(H) × 118.8(V) × 2.54(D) mm |
| Operating Temperature | ‑20℃ ~ +70℃ |
| Storage Temperature | ‑30℃ ~ +80℃ |
| Compliance | RoHS |

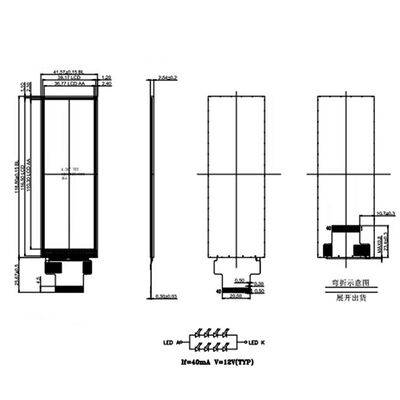

📐 Mechanical Dimension Drawing
| Performance Item | Typical Value |
|---|---|
| Luminance | 400 cd/m² |
| Contrast Ratio | 1200 |
| Viewing Angle(T/B/L/R) | 85° / 85° / 85° / 85° |
| Response Time | 25 ms |
| NTSC Color Gamut | 60~70% |
| Luminance Uniformity | 80% |
| Item | Value |
|---|---|
| Forward Current | 40mA(Typ.) |
| Forward Voltage | 12V(Typ.) |
| LED Lifetime | 20000 Hours |
| LED Poles | LEDA(Anode) / LEDK(Cathode) |
| Parameter | Min | Typ | Max |
|---|---|---|---|
| VCI Analog Power | 2.5V | 2.8V | 3.3V |
| IOVCC Digital Power | 1.65V | 1.8V | 1.95V |
Compact bar‑shape design with thin 2.54mm thickness. FPC integrates SPI+RGB signal pins, reserved touch circuit pins for optional touch upgrade. High brightness white LED backlight supports long‑time stable work for industrial scenarios.

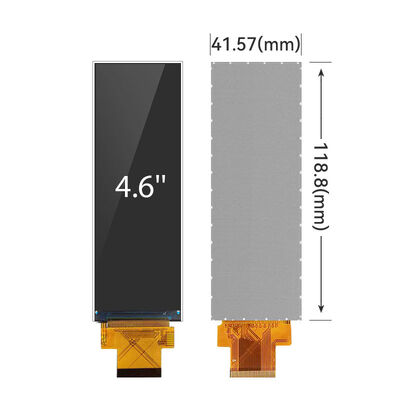

🖼️ Detail Photo (FPC / Panel Edge)
FPC Connector & Display Panel Details
This 4.6 inch bar‑type display can be widely integrated into industrial handheld terminals, measuring instruments, smart home control panels and embedded devices. The long vertical screen design helps to display more information in limited space.
🖼️ Application Scenario
Handheld Device / Instrument Panel / Smart Home Terminal
Model: YVO046QV‑C01 | 4.6 Inch Bar‑Type TFT LCD Module
Custom service available: FPC modification, brightness adjustment and other parameter customization are acceptable.
Feel free to contact us for datasheet, sample price and further technical support!
