| Brand Name: | YZY |
| Model Number: | YVO070FW-C01 |
| MOQ: | 500 pcs |
| Price: | $13.6–16 / Piece |
| Payment Terms: | T/T |
280(RGB)×1424 | NV3052CGRB | 3SPI+24RGB | Built‑in CTP Capacitive Touch

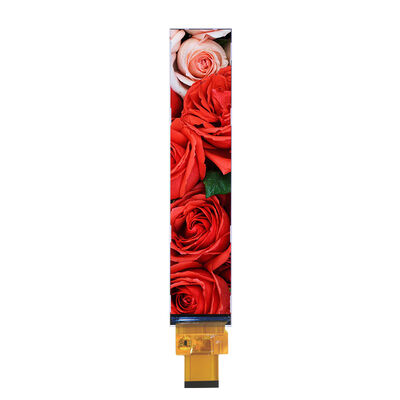

📷 Product Main Photo
7" Normally‑Black Bar‑Shape TFT LCD
YVO070FW‑C01 is a 7‑inch normally‑black bar‑type TFT‑LCD display module, vertical resolution 280(RGB)×1424. Adopt NV3052CGRB driver IC with 3SPI+24‑bit RGB interface.
This long strip screen integrates CTP capacitive touch, 262K colors and white‑LED backlight. Stable performance under ‑20℃ ~ +70℃ working range, well‑suited for industrial handheld devices, measuring instruments and HMI embedded terminals.
| Item | Specification |
|---|---|
| Display Mode | Normally Black |
| Pixel Configuration | RGB Vertical Stripe |
| Viewing Direction | ALL |
| Display Colors | 262K |
| Active Area | 33.6 × 170.88 mm |
| Module Dimension | 38.2 × 181.47 × 3.54 mm |
| Operating Temperature | ‑20℃ ~ +70℃ |
| Storage Temperature | ‑30℃ ~ +80℃ |

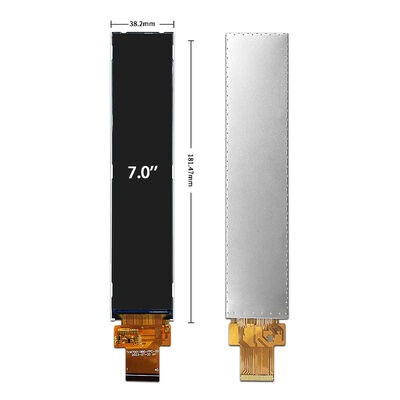

📐 Mechanical Drawing
| Item | Typical Value |
|---|---|
| Luminance | 400 cd/m² |
| Contrast Ratio | 900 |
| Response Time | 30 ms |
| NTSC | 70% |
| Item | Value |
|---|---|
| LED Config | 8PCS LED (4S2P) |
| Forward Voltage | 12.8V(Typ.) |
| Forward Current | 80mA(Typ.) |
| Supply Voltage VDD | 2.8~3.6V |
Thin‑body bar‑shaped module, FPC integrates signal and touch pins. Built‑in CTP touch, suitable for compact embedded equipment.
🖼️ Detail Photo (FPC & Touch)
Widely used for industrial handheld unit, measuring instrument, portable HMI and other embedded touch display projects.
🖼️ Application Illustration
Model: YVO070FW‑C01
Custom service: FPC, brightness and other parameters support customization.
Please contact us for datasheet, sample quotation and technical support!
