| Brand Name: | YZY |
| Model Number: | YVO088PW-C01 |
| MOQ: | 500pieces |
| Price: | $18.5–23 / Piece |
| Payment Terms: | T/T |
High‑Performance Long‑Strip IPS Display | MIPI 4‑Lane Interface Industrial Embedded TFT Screen

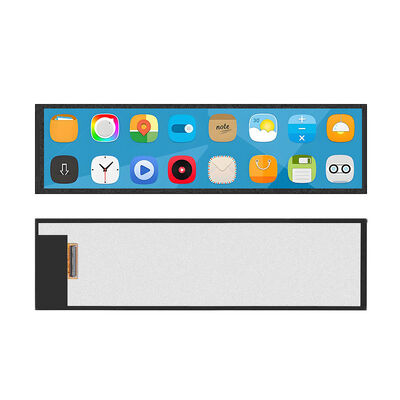

Product Views & Mechanical Drawing

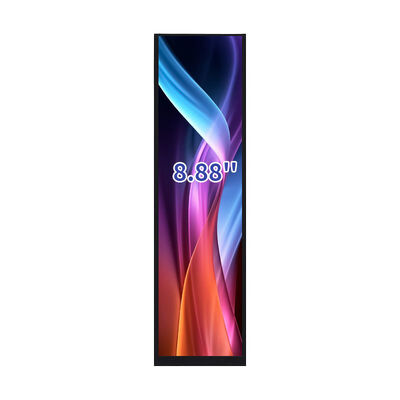

YVO088PW‑C01 is an 8.88‑inch long‑strip normally‑black IPS TFT LCD module, equipped with OTA7290N driver IC and MIPI 4‑Lane high‑speed interface. It delivers 480RGB×1920 high resolution, 600 cd/m² typical brightness and 800:1 contrast ratio.
With full‑angle IPS viewing capability and wide industrial temperature range, this long bar display is well‑suited for industrial HMI, smart equipment, medical auxiliary terminal and special embedded narrow‑space projects.
Key Tag: Long‑strip TFT | MIPI 4 Lane | IPS Wide View | Industrial Grade | RoHS Compliant
600 cd/m² typical brightness, 800 contrast ratio, delivers sharp and vivid picture under indoor industrial ambient light.
80‑degree wide viewing angle in four directions, minimal color shift for multi‑angle observation scenarios.
High‑speed MIPI 4‑lane signal input, supports 60Hz frame rate, stable high‑resolution image output.
16.7‑million display colors, restore delicate graphic, icon and status‑display details for device UI.
‑20℃ ~ +70℃ operating temperature, adapts complex and harsh industrial working surroundings.
Built‑in white LED group, typical 20000‑hour service life for long‑term continuous equipment operation.
| Specification Item | Parameter Value |
|---|---|
| Model Number | YVO088PW‑C01 |
| Diagonal Screen Size | 8.88 Inch |
| Display Type | IPS TFT Normally Black |
| Resolution | 480RGB × 1920 Pixels |
| Driver IC | OTA7290N |
| Interface | MIPI 4‑Lane |
| Display Colors | 16.7M Colors |
| Typical Brightness | 600 cd/m² |
| Contrast Ratio | 800 (Typ.) |
| Module Overall Dimension | 64.1(H) × 231.2(V) × 4.75(D) mm |
| Active Display Area | 54.72 × 218.88 mm |
| Operating Temperature | ‑20℃ ~ +70℃ |
| Storage Temperature | ‑30℃ ~ +80℃ |
| Backlight Typical Lifetime | 20000 Hours |
| Environmental Compliance | RoHS Compliant |
✅ Industrial long‑strip HMI control panels
✅ Equipment status indicator displays
✅ Medical auxiliary display terminals
✅ Smart home ultra‑wide interface screens
✅ Special narrow‑cabinet embedded devices
✅ Commercial custom long‑bar display solutions
Please operate within the absolute maximum rating parameters. Static‑protection measures are required during module assembly. Avoid heavy extrusion and impact on LCD glass surface. The backlight circuit is recommended to adopt constant‑current driving mode.
If you need datasheet, unit price quotation, sample arrangement or technical consultation, please send your inquiry message to us.
Our professional sales & engineering team will reply to you promptly for your display project solution.
