| Brand Name: | YZY |
| Model Number: | YVO1400VQE-Y2-12 |
| MOQ: | 500 pcs |
| Price: | $46 / Piece |
| Payment Terms: | T/T |
High-brightness display module designed for embedded systems, HMI equipment, industrial control terminals and customized display integration.
|
14.0"
Display Size
|
1920 × 1080
FHD Resolution
|
30 Pin
eDP Interface
|
1200 Nits
Typical Brightness
|

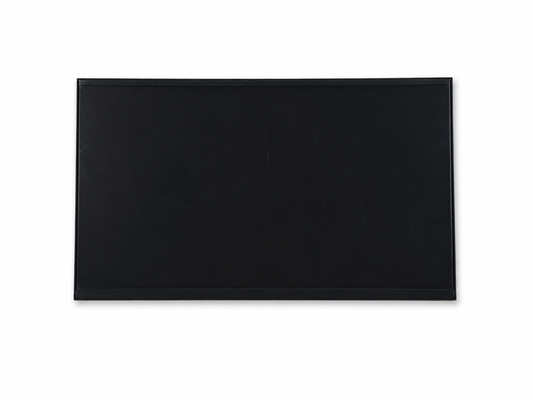

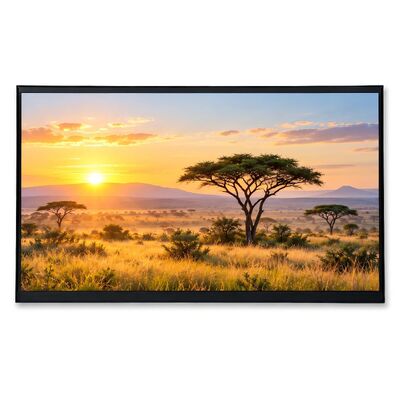

This 14.0-inch TFT LCD module combines 1920 × 1080 Full HD resolution, a 30-pin eDP 1.2 interface, 2-lane signal transmission and 1200 cd/m² typical brightness. The anti-glare FFS display is designed for embedded equipment, HMI systems and customized display integration.
|
Full HD Resolution
1920 × 1080 native resolution with a 309.31 × 173.99 mm active display area.
|
30-Pin eDP 1.2 Interface
2-lane eDP interface with 2.7 Gbps link rate for embedded and OEM display integration.
|
|
1200 Nits High Brightness
Typical center luminance reaches 1200 cd/m² for high-brightness display applications.
|
Wide Viewing Characteristics
FFS normally black display with wide horizontal and vertical viewing characteristics.
|
| |
MECHANICAL STRUCTURE

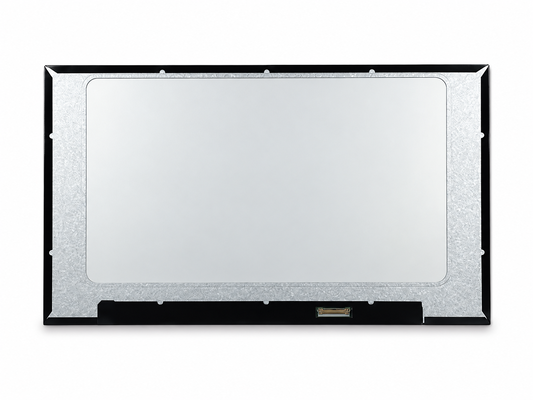

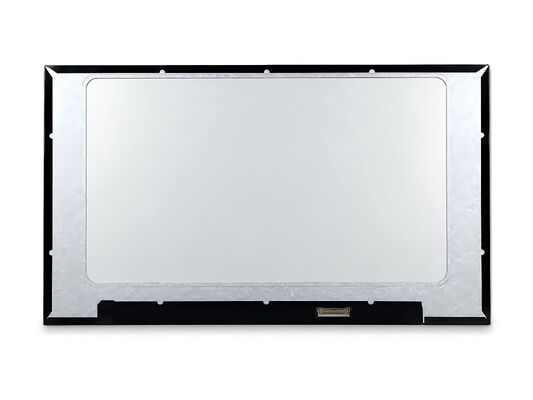

Rear PCB StructureThe module integrates the TFT LCD panel, timing controller, EDID, DC/DC converter and LED driving circuit into a compact display structure. The rear-side circuitry and 30-pin eDP connector are arranged for system-level display integration while maintaining a slim overall module profile. |
|
SIGNAL INTERFACE
30-Pin eDP 1.2The display uses a 30-pin eDP 1.2 interface with 2-lane signal transmission for Full HD display integration.
|
|
| Parameter | Specification |
| Model | YVO1400VQE-Y2-12 |
| Display Size | 14.0 inch |
| Resolution | 1920 × 1080 FHD |
| LCD Type | TFT LCD |
| Display Mode | FFS, Normally Black |
| Interface | eDP 1.2 |
| eDP Lanes | 2 Lane |
| Pin Count | 30 Pin |
| Link Rate | 2.7 Gbps |
| Brightness | 1200 cd/m² Typ. |
| Contrast Ratio | 1200:1 Typ. |
| Viewing Angle | 80° Min. / 89° Max. in Four Directions |
| Display Colors | 16.7M (6bit + 2FRC) |
| Color Gamut | 45% NTSC |
| Surface Treatment | Anti-Glare |
| Active Area | 309.31 × 173.99 mm |
| Outline Size | 315.81 × 186.07 × 3.0 mm Max. (W/O PCB) |
| Outline with PCB | 315.81 × 186.07 × 5.2 mm Max. |
| Weight | 285 g Typ. |
| Power Supply | 3.3V Typ. |
| Backlight | Bottom-Edge Single LED Lighting Bar |
| LED Quantity | 45 LEDs |
| LED Driver | Built-In |
| EDID | On-board EDID |
| LED Lifetime | 15,000 Hours |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Touch Type | Not specified |
Please check the outline dimensions, active area and rear PCB position before mechanical integration.
Suitable for display integration in various electronic and control equipment.
| Industrial Control Terminal | HMI Equipment | Medical Equipment | Embedded Display System |
LCD compatibility depends on brightness, eDP configuration, pin assignment, mechanical dimensions and power requirements.
Send us your interface, mechanical requirements and project quantity for technical evaluation.
