| Brand Name: | YZY |
| Model Number: | YV01010NSM-H1 |
| MOQ: | 500 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T |
800×RGB×1280 Vertical Resolution, MIPI Interface, 260cd/m²,‑20~60℃ Wide Temperature LCM

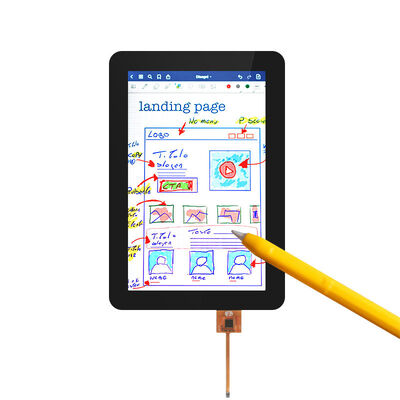

LCD Module Front View
YV01010NSM‑H1 is a 10.1‑inch vertical IPS TFT‑LCD module, resolution 800×RGB×1280. Adopts MIPI interface, supports 16.7M display colors, 260cd/m² typical brightness and 800:1 contrast ratio. Anti‑glare surface treatment, full‑direction viewing angle. Wide operating temperature ‑20℃~60℃, stable performance for embedded and handheld industrial display devices.
| Model | YV01010NSM‑H1 |
| Diagonal Size | 10.1 Inch |
| Resolution | 800×RGB×1280 (Vertical) |
| Active Area | 135.36(H) × 216.58(V) mm |
| Outline Dimension | 143.06(W) × 228.66(H) ×2.60(D) mm |
| Display Colors | 16.7M |
| Interface | MIPI |
| Brightness(Typ.) | 260 cd/m² |
| Contrast Ratio(Typ.) | 800:1 |
| Surface Treatment | Anti‑Glare |
| Operating Temperature | ‑20℃ ~ +60℃ |
| Storage Temperature | ‑25℃ ~ +70℃ |

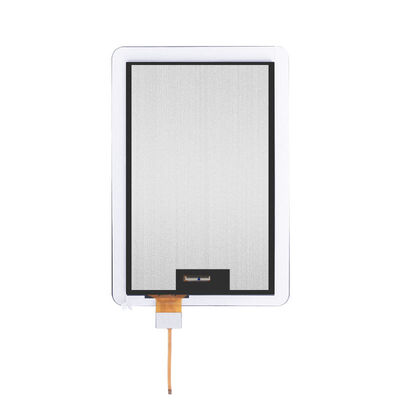

LCD Module Back Side

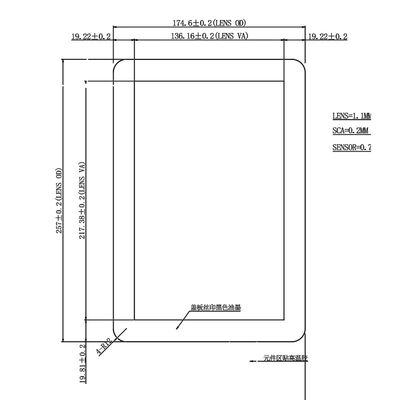

Mechanical Outline Drawing
YV01010NSM‑H1 10.1‑inch vertical IPS display module is widely used for handheld industrial terminals, portable instruments, embedded control equipment, IoT smart devices and other vertical screen embedded display projects. With wide‑temperature performance, it adapts to various complex industrial application scenarios.
Handheld Industrial Terminal Scene
Portable Instrument Scene
Need YV01010NSM‑H1 sample, drawing or quotation? Feel free to send your inquiry to us.
