| Brand Name: | YZY |
| Model Number: | YNO0106ADS-J2 |
| MOQ: | 500 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T |
96RGB×160 Resolution, 4‑Wire SPI Interface, ST7735 Driver IC,‑20℃~70℃ Wide Temperature LCM

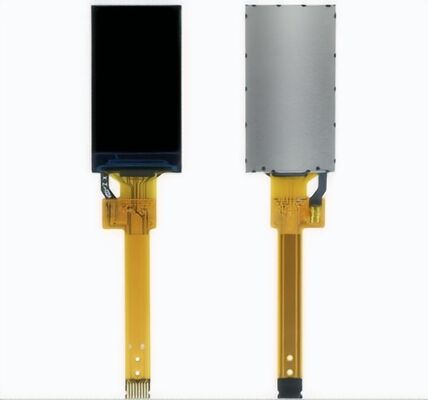

LCD Module Front View
YNO0106ADS‑J2 is a compact 1.06‑inch small‑size TFT‑LCD module with resolution 96RGB×160. Equipped with ST7735 driver IC and 4‑wire SPI interface, supports 262K display colors. Compact outline size, wide viewing direction, wide operating temperature from ‑20℃ to 70℃, stable performance for small embedded indicator display projects.

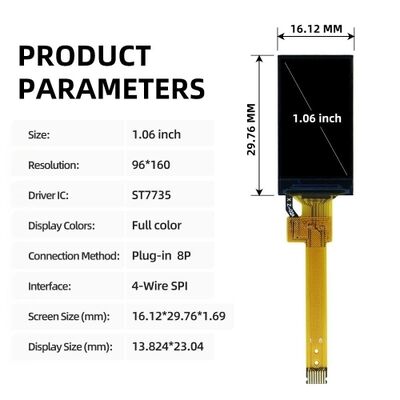

| Model | YNO0106ADS‑J2 |
| Diagonal Size | 1.06 Inch |
| Resolution | 96RGB × 160 |
| Active Area | 13.82(W) × 23.04(H) mm |
| Module Dimension | 16.12(W) × 22.976(H) ×1.69(T) mm |
| Display Colors | 262K |
| Interface | 4‑Wire SPI |
| Driver IC | ST7735 |
| Viewing Direction | 65/65/50/65(Typ.) |
| Backlight LED Lifetime | 10000 Hours |
| Operating Temperature | ‑20℃ ~ +70℃ |
| Storage Temperature | ‑30℃ ~ +80℃ |

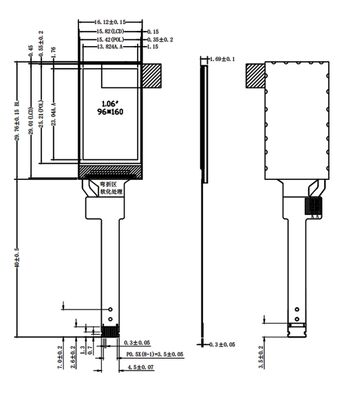

Mechanical Outline Drawing
This miniature 1.06‑inch SPI TFT‑LCD module is widely applied for small‑size status display in compact embedded equipment. Its small footprint and wide‑temperature performance are well‑suited for space‑constrained product integration.
Smart Wearable Device Scene
Small Industrial Controller Scene
If you need more details about this display module, please feel free to send us your inquiry. We will reply you as soon as possible.
