YVO0072ADS‑J1 0.72 Inch Bar IPS TFT LCD Module

60RGB×160, 4‑Wire SPI, GC9D01, Normally Black, 262K Colors, Ultra‑Slim Display

Product Introduction

YVO0072ADS‑J1 is an ultra‑thin 0.72‑inch bar‑shaped IPS TFT‑LCD module with 60RGB×160 resolution, 4‑Wire SPI interface and GC9D01 driver IC. It supports 262K colors, normally‑black mode and wide viewing angle.

The compact module measures 8.52×21.70×1.51mm and weighs only 0.59g, making it suitable for miniature embedded systems and wearable devices with strict space limitations.

 Module front and back view

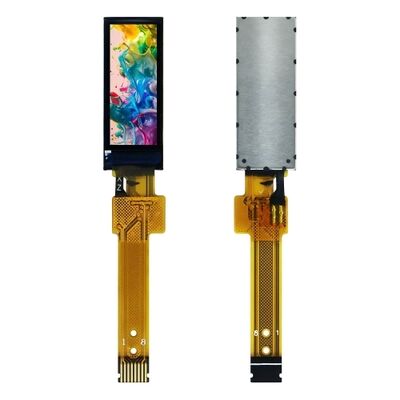

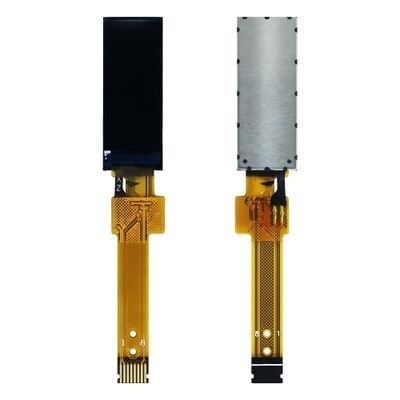

Screen side, back shielding sheet and extended FPC for easy assembly.

Key Advantages

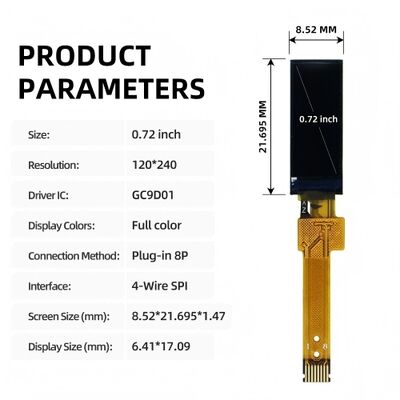

Main Technical Parameters

Mechanical Dimension Drawing

 Mechanical outline drawing

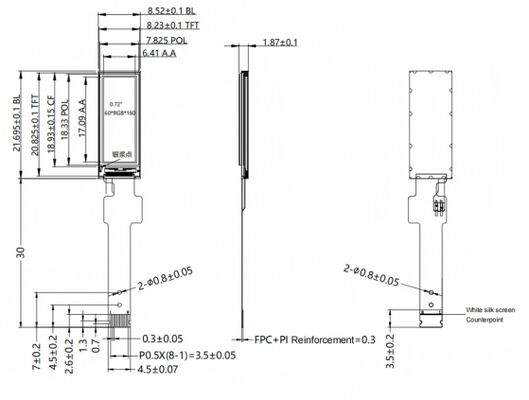

Module outline, FPC size and tolerance for structural housing design reference.

Pin Definition & Circuit Reference

Pin definition and circuit schematic

The 8‑pin FPC covers power supply, SPI signals, reset and backlight control. CSX, SCL, SDA and D/CX can be connected to the MCU I/O port. The backlight LED‑A pin is recommended for constant‑current driving.

Customization Solutions

We provide flexible customization services based on this 0.72‑inch bar IPS display to meet different miniature embedded requirements.

FPC length and pin‑out modification

• Backlight brightness adjustment
• Mechanical and interface customization support

Custom display solution

Application Fields

The ultra‑thin narrow bar shape, light weight and wide temperature performance make this module suitable for compact devices where installation space is limited.

Handling Precautions

• Operate within the rated voltage range to avoid permanent damage.
• Use anti‑static protection during assembly, handling and soldering.
• Do not bend the FPC sharply or apply mechanical force to the display surface.
• Do not disassemble the module without authorization, as this will invalidate the warranty.
• Store the product in a dry, dust‑free environment away from corrosive gases.

Contact Us for More Details

We are ready to support you with samples, quotations, custom requirements and technical information.
