A 10-inch 4:3 TFT LCD monitor with 1024 × 768 resolution, 500 cd/m² brightness, HDMI, VGA, AV and BNC video inputs, enclosed housing and VESA mounting.
500 cd/m² HDMI / VGA / AV / BNC VESA 75 × 75

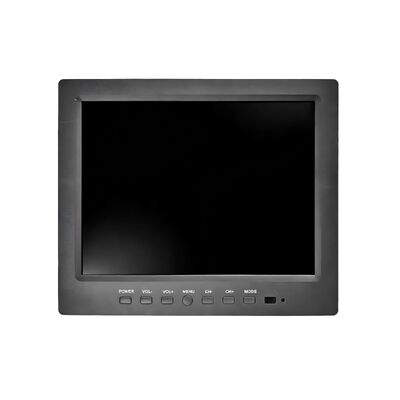

FRONT VIEW / PRODUCT PHOTO
1024 × 768
4:3 XGA Display
500 cd/m²
Brightness
VESA 75×75
Mounting Pattern
01 / VIDEO & AUDIO CONNECTIONS
Multiple Video Input Interfaces
The monitor provides HDMI, VGA, composite AV and BNC video connections for compatible computers, video equipment and monitoring systems. Left and right audio connections and a USB port are also provided.
VIDEO / AUDIO / USB CONNECTIONS
Signal Interface
HDMI Input — Digital video signal input
VGA Input — Standard 15-pin analog video input
AV / CVBS Input — Composite video signal connection
BNC Input — Coaxial analog video connection
Audio L/R — Left and right audio channel connections
USB Port — USB connection for supported media files
Power Input — External DC power connection
02 / HOUSING & MOUNTING
Rear Housing & VESA Mounting

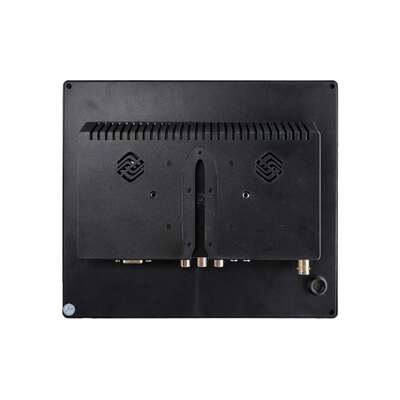

REAR HOUSING / PRODUCT PHOTO
Enclosed Display Design
The monitor features a black plastic enclosure with rear ventilation openings and a 75 × 75 mm VESA mounting pattern. Front-panel control keys allow direct operation.
Plastic Housing
VESA 75 × 75 mm
Rear Ventilation Openings
Front Control Buttons
External Video Connections
03 / DISPLAY FEATURES
1024 × 768 XGA Display
The 10-inch TFT LCD monitor combines 4:3 XGA resolution with 500 cd/m² brightness. Its display format is suitable for video sources and equipment interfaces designed for a 4:3 screen.
4:3 XGA
1024 × 768 Resolution
500 cd/m²
Display Brightness
4 Video Inputs
HDMI / VGA / AV / BNC
04 / TECHNICAL DATA
Technical Specifications
Parameter
Specification
Screen Size
10 inch
Aspect Ratio
4:3
LCD Technology
TFT LCD
Resolution
1024 × 768
Display Area
200 × 150 mm
Brightness
500 cd/m²
Contrast Ratio
500:1
Display Colors
16.7M
Refresh Frequency
60 Hz
Response Time
20 ms (Typ., Tr+Td)
Color Temperature
8028 K
Video Interfaces
HDMI / VGA / AV / BNC
Composite Video Signal
CVBS 1 Vp-p
Audio Connections
Left / Right Audio Channels
USB Connection
USB Port
Supported Image Formats
JPEG / PNG / BMP
Power Input
DC 12–24V
Front Outline
237 × 201 mm
VESA Mounting
75 × 75 mm
Housing Material
Plastic
Approximate Weight
Approx. 1 kg
05 / DIMENSIONS & CONTROLS
Mechanical Dimensions
FRONT DIMENSIONS / CONTROL PANEL
Front Panel Details
Front Width: 237 mm
Front Height: 201 mm
Display Area: 200 × 150 mm
Power
Volume – / Volume +
Menu
Channel – / Channel +
Mode Selection
06 / APPLICATIONS
Application Areas
CCTV Video Monitoring
External display for compatible CCTV and video monitoring equipment.
Computer External Display
Monitor for computers with compatible HDMI or VGA video output.
Industrial Equipment Display
Compact 4:3 screen for equipment with matching external video signals.
VESA-Mounted Display
Use with compatible VESA 75 × 75 mm monitor mounting hardware.
YZY DISPLAY
LCD DISPLAY SOLUTIONS
Shenzhen YZY Technology Co., Ltd.
Please share your intended application, video input requirements and order quantity when inquiring.
