YZY PC104H 10.4 Inch IP65 Fanless HMI Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC
  • name
  • name
  • name

YZY PC104H 10.4 Inch IP65 Fanless HMI Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC

MOQ: 300
Price: $214-232/pieces
Standard Packaging: 460 ×445 × 100mm/3.6KG
Delivery Period: 10 work days
Payment Method: T/T
Supply Capacity: 5K/Month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE/Rohs...
Model Number
PC104H
Document
PC104H DataSheet.pdf
Type:
Industrial Computer
Display Size:
10.4 Inch
Supplier Type:
Factory
Mounting Type:
Embedded
Packing Dimensions:
460 ×445 × 100mm
Net Weight:
3.1KG
Gross Weight:
3.6KG
Highlight:

10.4 inch industrial panel PC

,

IP65 Fanless Industrial Panel PC

,

Industrial Panel PC 350 Cd/M2

Product Description
10.4 Inch H Type Industrial Panel PC
Embedded Touch IP65 Fanless HMI Industrial Computer designed for demanding industrial environments with robust construction and reliable performance.

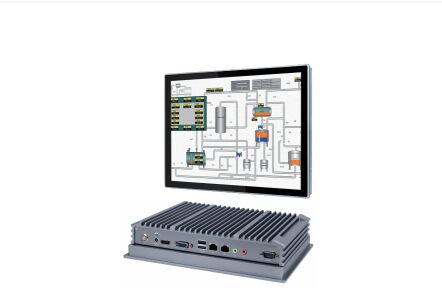

YZY PC104H 10.4 Inch IP65 Fanless HMI Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC 0
Product Features
  • Precision CNC Milling: High-precision machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
  • Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design enhances surface hardness and anti-interference capability.
  • Full Aluminum Construction: IP65-rated front panel for water and dust protection with excellent electromagnetic compatibility (EMC).
  • Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions.
  • Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination, compatible with 5-wire resistive touch.
  • Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness.
  • I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options.
  • Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input.
  • Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations available.
  • 24/7 Operation: Designed for continuous use with robust performance and long service life.

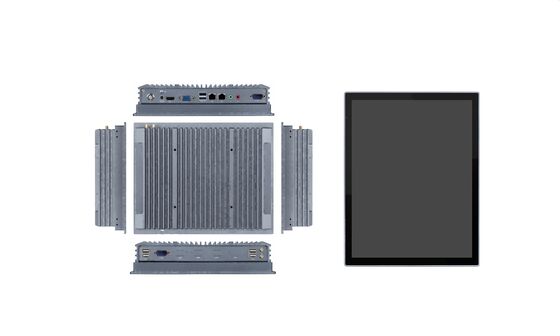

Product Six Views
YZY PC104H 10.4 Inch IP65 Fanless HMI Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC 1

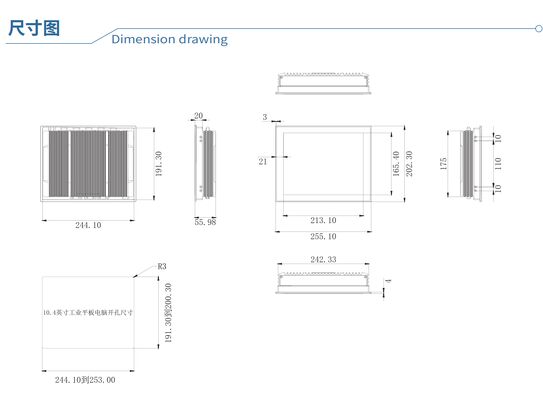

Product Dimensions
YZY PC104H 10.4 Inch IP65 Fanless HMI Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC 2
I/O Interface Diagram
YZY PC104H 10.4 Inch IP65 Fanless HMI Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC 3 YZY PC104H 10.4 Inch IP65 Fanless HMI Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC 4
Extensible Interface
YZY PC104H 10.4 Inch IP65 Fanless HMI Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC 5
Product Specifications
CPU: J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory: 4G/8G/16G/32G/64G
Storage: 64G/128G/256G/512G/1TB/2TB
Touch Type: Multi-point Capacitive / 5-Wire Resistive
Touch Driver Support: Windows 7/8/10, Linux, Android
LCD Display: 10.4" XGA TFT (1024*768)
Active Area: 213.10mm*165.40mm
Viewing Angle: 89° (L/R/T/B)
Brightness: 350 cd/m²
I/O Interfaces: 2×RJ-45, 2×USB3.0, 2×USB2.0, 1×RS232/485, 5×RS232, Mini-PCIe slot
Dimensions: 255.10mm*202.30mm*55.98mm
Power Input: DC 12V (9-30V optional)
Operating Temp: -20°C to 60°C (expandable to -40°C to 80°C)
Installation Methods
Embedded Snap-In Mounting
1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.
YZY PC104H 10.4 Inch IP65 Fanless HMI Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC 6 2. Tighten the long screws and nuts onto the snap fasteners.
YZY PC104H 10.4 Inch IP65 Fanless HMI Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC 7 3. Four clips are fixed at the threaded hole positions on both sides.
YZY PC104H 10.4 Inch IP65 Fanless HMI Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC 8 4. Tighten the long screws to secure the equipment in place.
YZY PC104H 10.4 Inch IP65 Fanless HMI Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC 9
Desktop Mounting
YZY PC104H 10.4 Inch IP65 Fanless HMI Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC 10		 Cantilever Mounting
YZY PC104H 10.4 Inch IP65 Fanless HMI Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC 11
Packing List
No. Item QTY
1 Industrial Panel PC 1 unit
2 Power Adapter 1 unit
3 3-pin 5.08 Power Terminal Plug (optional) 1 unit
4 Embedded Snap-In Kit (optional) 1 set
5 Wall-Mount Bracket (Optional) 1 unit
6 Certificate of Conformity 1 sheet
7 Warranty Card 1 sheet
8 User Manual 1 copy
Ordering Information
No. Name Description
1 Ethernet Port Default single port; optional dual or quad ports
2 Serial Port Default 2 × RS232; optional 6 × RS232/RS485
3 USB Default 4 × USB (2 × USB 2.0, 2 × USB 3.0); optional 8 × USB
4 GPIO Optional 4 input / 4 output
Safety Warnings
  • This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
  • Do not place in humid environments to prevent condensation and component damage.
  • Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
  • Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
  • Do not disassemble or repair the device yourself due to high voltage risks.
Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
