7 Inch IPS TFT Screen With 5 Point Touch / Raspberry Pi Compatibility

Products

7 Inch IPS TFT Screen With 5 Point Touch / Raspberry Pi Compatibility

MOQ:	100
Price:	$23.5-26.5/pieces
Standard Packaging:	15414338(mm)/180g
Delivery Period:	30-45days
Payment Method:	T/T
Supply Capacity:	50K/Month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

China

Brand Name

Certification

CE/ROHS

Model Number

YQ84-7

Type:

IPS TFT Screen

Display Size:

7 Inch

Supplier Type:

Factory

Video Input:

Highlight:

7 Inch IPS TFT Screen Display

5 Point Capacitive Touch Screen Display

Raspberry Pi 7 Touchscreen Display

Product Description

7 Inch IPS TFT Screen with 5 Point Touch and Raspberry Pi Compatibility

Product Description

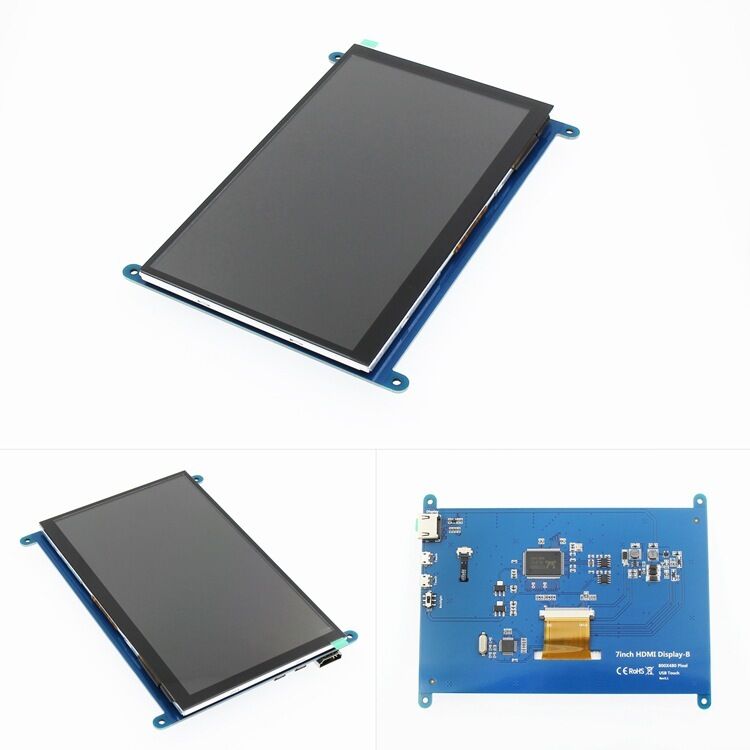

7 Inch 800x480 HDMI Display CTP IPS TFT Touch Screen for Raspberry Pi

7" standard display, 800 × 480 hardware resolution, up to 1920x1080 software configuration resolution
Capacitive touch screen with 5-point touch support
Independent backlight control for power saving
Compatible with Raspberry Pi, BB Black, Banana Pi and other mainstream mini PCs
Can function as a general-purpose HDMI monitor (e.g., computer sub-display)
Works with Raspbian, Ubuntu, Kali-Linux, Kodi, and Win10 IOT (single-touch, free driver)
Functions as a PC monitor supporting Win7, Win8, Win10 systems (5-point touch; XP and older: single-point touch)
CE and RoHS certified

Product Parameters

Size	7.0 inch
SKU	MPI7001
Resolution	800 × 480 dots
Touch	5 point capacitive touch

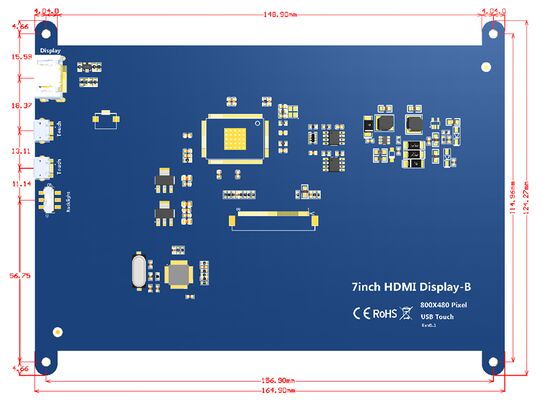

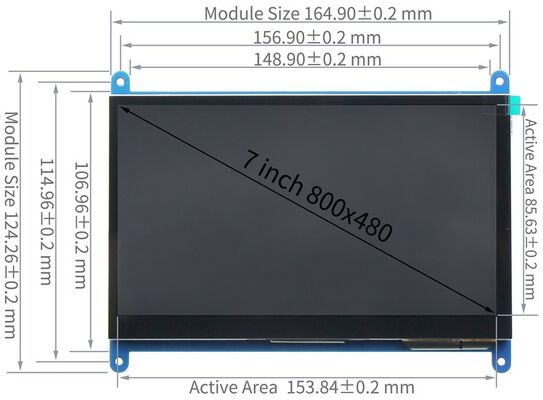

Dimensions	164.9 × 124.27 (mm)
Weight	380 g (package included)

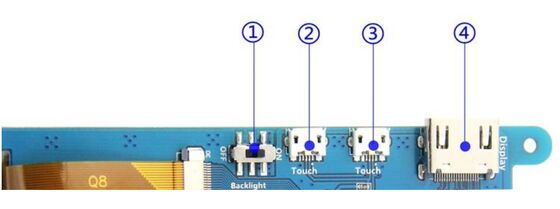

Hardware Description

①Backlight Power switch: Controls the backlight turned on and off to save power.

②③USB Touch / power supply connector: For power supply and touch output, the functions of the both

are the same, can just use one of them.

④HDMI interface: For connecting motherboard and LCD monitor to HDMI transmission.

How to Use with Raspbian/Ubuntu Mate/Win10 IoT Core System

Step 1: Install Raspbian Official Image

Download the latest image from the official source
Install the system following official tutorial steps

Step 2: Modify "config.txt"

After installation, open the config.txt file in the Micro SD Card root directory and add the following code at the end:

max_usb_current=1
hdmi_force_hotplug=1
config_hdmi_boost=7
hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_drive=1
hdmi_cvt 800 480 60 6 0 0 0

Save and safely eject the Micro SD Card.

Step 3: Connect and Test

Insert Micro SD Card into Raspberry Pi
Connect Raspberry Pi and LCD with HDMI cable
Connect USB cable between Raspberry Pi and LCD
Power on Raspberry Pi (use full 2A power supply)

Display Rotation Configuration

1. Open config.txt:

sudo nano /boot/config.txt

2. Add rotation statement (example for 90° rotation):

display_rotate=1 #0: 0; 1: 90; 2: 180; 3: 270

3. Save and restart:

sudo reboot

Touch Rotation Configuration

1. Install libinput:

sudo apt-get install xserver-xorg-input-libinput

2. Create xorg.conf.d directory (if needed):

sudo mkdir /etc/X11/xorg.conf.d

3. Copy configuration file:

sudo cp /usr/share/X11/xorg.conf.d/40-libinput.conf /etc/X11/xorg.conf.d/

4. Edit configuration file:

sudo nano /etc/X11/xorg.conf.d/40-libinput.conf

5. Add calibration matrix (example for 90° rotation):

Option "CalibrationMatrix" "0 1 0 -1 0 1 0 0 1"

6. Restart Raspberry Pi:

sudo reboot

Rotation parameters:
0°: "1 0 0 0 1 0 0 0 1"
90°: "0 1 0 -1 0 1 0 0 1"
180°: "-1 0 1 0 -1 1 0 0 1"
270°: "0 -1 1 1 0 0 0 0 1"

How to Use as PC Monitor

Connect computer HDMI output to LCD HDMI interface
Connect LCD's USB Touch interface (either MicroUSB) to device USB port
For initial testing, use LCD as the only monitor (disconnect other monitors)
