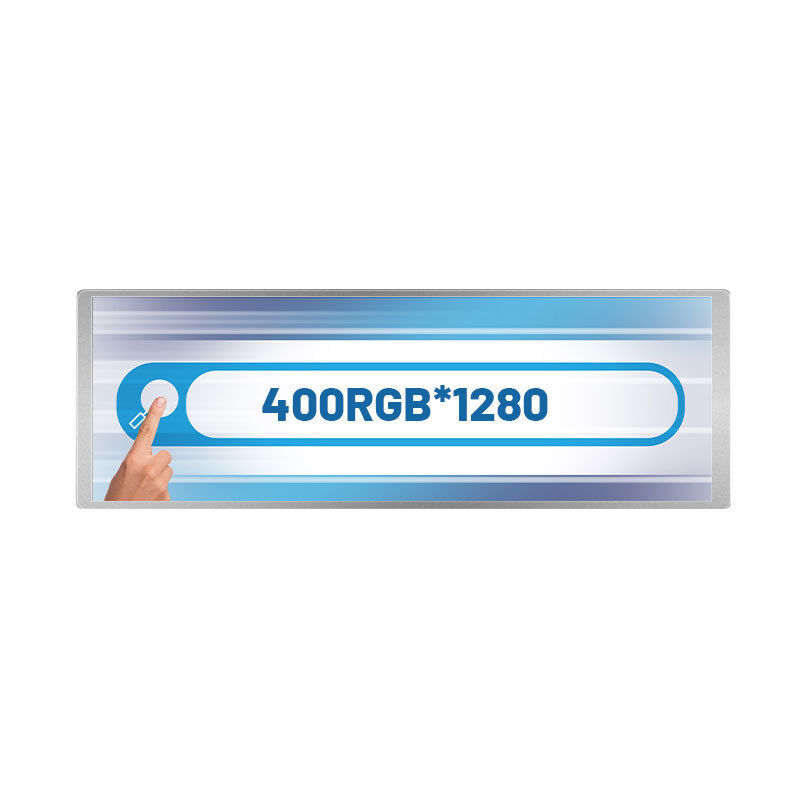

7.8 inch Bar Type LCD display 400*1280 resolution optional touch MIPI

400*1280 Resolution NV3051F Driver IC MIPI Interface500 CD/m² Luminance -20℃ ~ +70℃ Operating Temp Wide Viewing Angle (ALL)

Product Features

The YVO078HW-C01 is a high-performance LCD display module with a 7.84-inch screen. It features a resolution of 400×1280 pixels, providing clear and detailed visual output. With a normally black display mode and RGB vertical stripe pixel arrangement, it ensures excellent color reproduction and display quality.Driven by the NV3051F driver IC and utilizing an MIPI 4-lane interface, this module enables fast and stable data transmission, making it suitable for a wide range of applications that require high-resolution display.

Product	7.8 inch LCD	Module Number	YVO078HW-C01
Resolution	400*1280	Display Mode	Normally Black
Brightness	500 nit	Outline Dimensions	67.80(H)206.18(V)4.6(D)mm
Viewing Direction	All (IPS)	Active Area	59.40x190.08mm
Interface	MIPI	Driver IC	NV3051F
Backlight	White LED	Operating Temp.	-20 ~ +70 °C
Connector Type	0.5 PITCH 40pin	Storage Temp.	-30 ~ +80 °C
Highlight	7.8-inch LCD, 400*1280 resolution, NV3051F driver, MIPI interface

Technical Drawing

The YVO078HW - C01 LCD module delivers dependable electrical performance. Regarding power supply, the analog supply voltage (VCI) spans from -0.30V to +6.6V, and the digital supply voltage (IOVCC) ranges from -0.30V to +5.5V. It can operate within a temperature range of -20.0°C to 70.0°C and be stored in a temperature range of -30.0°C to 80.0°C, with operating and storage humidity ranging from 10% to 90% RH.For the backlight unit, the typical forward current (IF) is 80mA, and the typical forward current voltage (VF) is 19.2V, guaranteeing ample brightness. It should be noted that if the LED is driven under conditions of high current, high ambient temperature, and humidity, the lifespan of the LED will be shortened. The operating life, defined as when the brightness decreases to 50% of the initial brightness, is estimated data.

7.8 Inch Bar LCD Screen 400*1280 Resolution MIPI LVDS Interface Display 0

PIN Definition

PIN	Symbol	Description
1	GND	Ground
2	D0P	MIPI Data lane0 input(positive)
3	D0N	MIPI Data lane0 input (negative)
4	GND	Ground
5	GND	Ground
6	D1P	MIPI Data lane1 input(positive)
7	D1N	MIPI Data lane1 input (negative)
8	GND	Ground
9	CLKP	MIPI CLK input(positive)
10	CLKN	MIPI CLK input (negative)
11	GND	Ground
12	D2P	MIPI Data lane2 input(positive)
13	D2N	MIPI Data lane2 input (negative)
14	GND	Ground
15	D3P	MIPI Data lane3 input(positive)
16	D3N	MIPI Data lane3 input (negative)
17	GND	Ground
18	VCC-1V8	IO Power Supply(1.65V~3.6V)
19	VCC-1V8	IO Power Supply(1.65V~3.6V)
20	NC	NC
21	NC	NC
22	NC	NC
23	NC	NC
24	RSTB	global reset pin. Active low to enter reset state. suggest to connecting with an RC reset circuit for stability. Normally pull high.
25	NC	NC
26	NC	NC
27	GND	Ground
28	K	Backlight LED Ground
29	K	Backlight LED Ground
30	GND	Ground
31	NC	NC
32	GND	Ground
33	GND	Ground
34	NC	NC
35	A	Backlight LED Power
36	A	Backlight LED Power
37	GND	Ground
38	VDD-3V3	Power Supply(3.3~3.6V)
39	VDD-3V3	Power Supply(3.3~3.6V)
40	NC	NC

Product Picture

The YVO078HW-C01 LCD module demonstrates outstanding environmental resilience and reliability, having successfully passed a series of strict tests. These tests include 120 hours of high - temperature (80°C) storage, 120 hours of high - temperature (70°C) operation, 120 hours of low - temperature (-30°C) storage, 120 hours of low - temperature (-20°C) operation (with no dew condensation), 96 hours of operation in a high - temperature and high - humidity environment (60°C/90%RH, with no dew condensation), 10 cycles of thermal shock (-20±2°C ↔ 70±2°C, with each cycle consisting of 30 minutes at low temperature, 5 minutes of transition, and 30 minutes at high temperature), and ESD tests with a voltage of ±2KV, resistance of 330Ω, capacitance of 150pF, using air discharge for 10 times. After these tests, the module shows no functional or appearance abnormalities. When inspected after 4 hours of storage at room temperature, the sample is free from defects such as air bubbles in the LCD, seal leaks, non - display, missing segments, glass cracks, and a current IDD that is twice higher than the initial value.

7.8 Inch Bar LCD Screen 400*1280 Resolution MIPI LVDS Interface Display 1

Customization Options

The YVO078HW-C01 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Brightness: Adjustable from 200–1000 nits for indoor or outdoor use.

Touch Options: With or without capacitive touch, customized driver IC available.

Surface Treatment: AF (Anti-Fingerprint), AG (Anti-Glare), or tempered glass for durability
